4ADPCW AC/DC Water Filled Solar Deep Well Pump with Plastic Impeller Wholesale

  • 4ADPCW AC/DC Water Filled Solar Deep Well Pump with Plastic Impeller
4ADPCW AC/DC Water Filled Solar Deep Well Pump with Plastic Impeller

4ADPCW AC/DC Water Filled Solar Deep Well Pump with Plastic Impeller

The 4ADPCW utilizes an AC/DC brushless water-filled motor design, combined with a water-cooled structure, to eliminate potential leaks associated with mechanical seals.

The compact 4-inch diameter housing houses a stainless steel cylinder and corrosion-resistant stainless steel impeller, ensuring stable operation in deep well environments.

Core components are constructed of environmentally friendly, oil-free 304 stainless steel, and are equipped with Japanese NSK bearings for exceptional wear resistance and long life.

A ceramic-coated rotor shaft significantly enhances wear resistance, while a thrust bearing provides stable support.

A built-in intelligent controller enables automatic start/stop and soft start, supports AC/DC switching, and features MPPT in solar mode, achieving efficiency exceeding 99%.

This pump is suitable for rural drinking water, household water supply, and small- to medium-sized irrigation projects.

Contact Us
PREV：3ADSC AC/DC Stainless Steel Impeller Solar Deep Well Pump
NEXT：4ADSCW Brushless AC/DC Water Filled Solar Deep Well Pump with SS Impeller

  • Description

  • Components

  • Curves

  • Performance Data

  • Contact Us

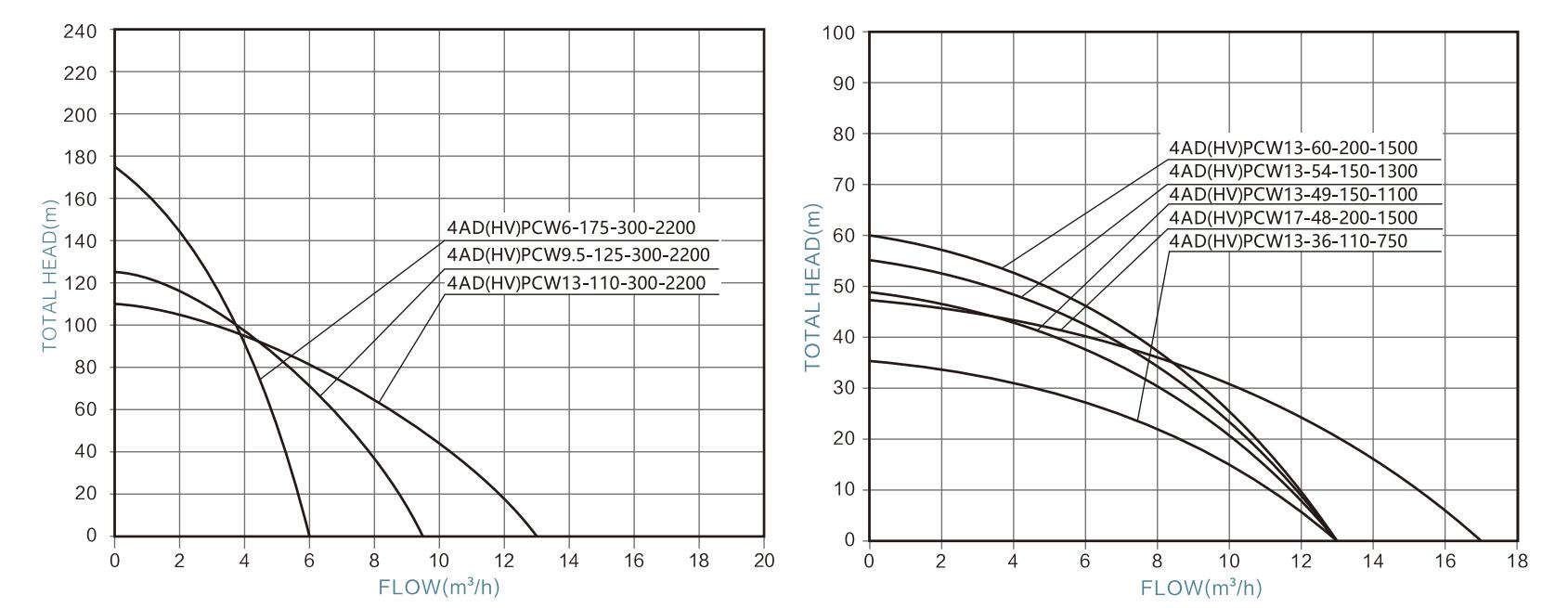

Performance Curves  :

Performance Data :

ITEM (AC) Voltage (DC) Voltage Power Max. Flow Max. Head Outlet Cable Solar panel -
Open circuit voltage (VOC)		 Solar panel - Power
4ADPCW6-56-110-750 85V-280V 80V-430V 750W 6m³/h 56m 1.25" 2m <430V ≥1.3*PUMP POWER
4ADPCW6-84-150-1100 85V-280V 80V-430V 1100W 6m³/h 84m 1.25" 2m <430V ≥1.3*PUMP POWER
4ADPCW6-112-150-1300 85V-280V 80V-430V 1300W 6m³/h 112m 1.25" 2m <430V ≥1.3*PUMP POWER
4ADPCW6-135-200-1500 85V-280V 80V-430V 1500W 6m³/h 135m 1.25" 2m <430V ≥1.3*PUMP POWER
4ADPCW9-45-110-750 85V-280V 80V-430V 750W 9m³/h 45m 2" 2m <430V ≥1.3*PUMP POWER
4ADPCW9-58-150-1100 85V-280V 80V-430V 1100W 9m³/h 58m 2" 2m <430V ≥1.3*PUMP POWER
4ADPCW9-71-150-1300 85V-280V 80V-430V 1300W 9m³/h 71m 2" 2m <430V ≥1.3*PUMP POWER
4ADPCW9-85-200-1500 85V-280V 80V-430V 1500W 9m³/h 85m 2" 2m <430V ≥1.3*PUMP POWER

ITEM (AC) Voltage (DC) Voltage Power Max. Flow Max. Head Outlet Cable Solar panel -
Open circuit voltage (VOC)		 Solar panel - Power
4ADPCW13-36-110-750 85V-280V 80V-430V 750W 13m³/h 36m 2" 2m <430V ≥1.3*PUMP POWER
4ADPCW13-49-150-1100 85V-280V 80V-430V 1100W 13m³/h 49m 2" 2m <430V ≥1.3*PUMP POWER
4ADPCW13-54-150-1300 85V-280V 80V-430V 1300W 13m³/h 54m 2" 2m <430V ≥1.3*PUMP POWER
4ADPCW13-60-200-1500 85V-280V 80V-430V 1500W 13m³/h 60m 2" 2m <430V ≥1.3*PUMP POWER
4ADPCW17-48-200-1500 85V-280V 80V-430V 1500W 17m³/h 48m 2" 2m <430V ≥1.3*PUMP POWER
4ADPCW6-175-300-2200 85V-280V 80V-430V 2200W 6m³/h 175m 1.25" 2m <430V ≥1.3*PUMP POWER
4ADPCW9.5-125-300-2200 85V-280V 80V-430V 2200W 9.5m³/h 125m 2" 2m <430V ≥1.3*PUMP POWER
4ADPCW13-110-300-2200 85V-280V 80V-430V 2200W 13m³/h 110m 2" 2m <430V ≥1.3*PUMP POWER
