May Features :

1、 Oil-filled AC/DC motor:
(1)The efficiency is improved by 15%-20%
(2)Save energy
(3)Reduce the consumption of solar panels
2、 Brass or stainless steel outlet/connector/ oil cylinder for option
3、 Japanese NSK bearing: prolong the working life.
4、 Alloy mechanical seal: Longer working life and high reliability.
5、 Motor coil is made by automatic winding machine with centralized winding technology, motor efficiency is much improved.
6、 The pump parts are processed by high-precision and fully automatic machines, strictly controlling the dimension precision and smoothness.
7、 Intelligent water shortage and full water protection.
8、 AC/DC Controller or Wide Voltage Controller:
(1) Waterproof grade: IP65
(2) Ambient temperature: -15℃ to 60℃
(3) MPPT function, the solar power utilization rate is higher.
(4) Automatic charging function: Guarantee the pump normally working, meanwhile charge the battery; And when there is no sunshine, the battery can make the pump continuously working.
(5) LED displays the power, voltage, current, speed etc working condition and error code.
(6) Frequency conversion function: It can automatically run with frequency conversion according to the solar power, and user also can change the speed of pump manually.
(7) Automatically start and stop working.
(8) Water proof and leak-proof: Double seal effect.
(9) Soft start: No impulse current, protect the pump motor.
(10) High voltage/Low voltage/Over-current/High temperature protection
9、 2 years warranty.

Spare Parts :

Installation Tutorial :

How to choose the Solar Pump：

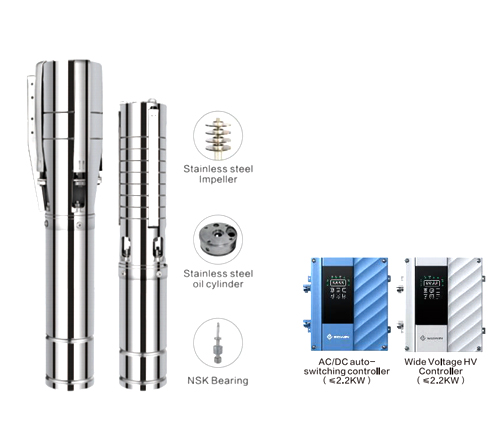

Components & Materials：

Components	Materials
Outlet	Stainless Steel
Connection	Stainless Steel
Oil cylinder	Stainless Steel
Impeller	Stainless Steel
Bearing	NSK
Shaft	Complete SS304

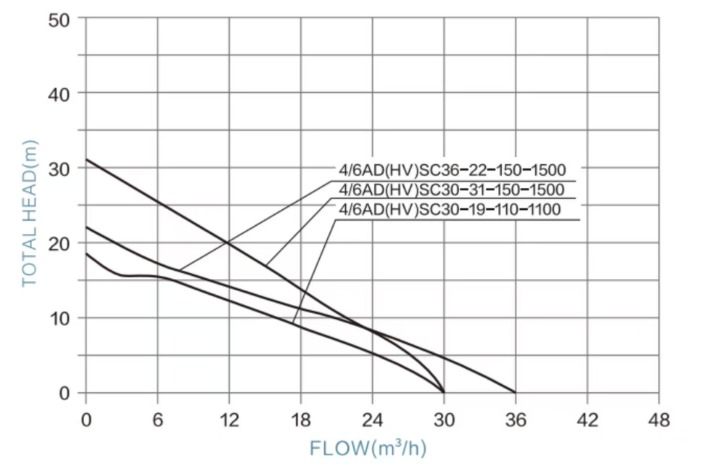

Hydraulic Performance Curves：

Technical Data：

ITEM	Voltage	Optimum input voltage (DC)	Power	Max.Flow	Max.Head	Outlet	Cable	Solar panel
ITEM	Voltage	Optimum input voltage (DC)	Power	Max.Flow	Max.Head	Outlet	Cable	Open circuit voltage(VOC)	Power
4/6ADSC30-70-380/520-3000	AC380/DC520V	520V-650V	3000W	30m³/h	70	3"	2m	<780V	≥1.3*PUMP POWER
4/6ADSC30-100-380/520-4000	AC380/DC520V	520V-650V	4000W	30m³/h	100	3"	2m	<780V	≥1.3*PUMP POWER
4/6ADSC30-122-380/520-5500	AC380/DC520V	520V-650V	5500W	30m³/h	122	3"	2m	<780V	≥1.3*PUMP POWER
4/6ADSC30-143-380/520-7500	AC380/DC520V	520V-650V	7500W	30m³/h	143	3"	2m	<780V	≥1.3*PUMP POWER
4/6ADSC36-56-380/520-3000	AC380/DC520V	520V-650V	3000W	36m³/h	56	3"	2m	<780V	≥1.3*PUMP POWER
4/6ADSC36-80-380/520-4000	AC380/DC520V	520V-650V	4000W	36m³/h	80	3"	2m	<780V	≥1.3*PUMP POWER
4/6ADSC36-108-380/520-5500	AC380/DC520V	520V-650V	5500W	36m³/h	108	3"	2m	<780V	≥1.3*PUMP POWER
4/6ADSC36-145-380/520-7500	AC380/DC520V	520V-650V	7500W	36m³/h	145	3"	2m	<780V	≥1.3*PUMP POWER
4/6ADSC46-51-380/520-3000	AC380/DC520V	520V-650V	3000W	46m³/h	51	3"	2m	<780V	≥1.3*PUMP POWER
4/6ADSC46-68-380/520-4000	AC380/DC520V	520V-650V	4000W	46m³/h	68	3"	2m	<780V	≥1.3*PUMP POWER
4/6ADSC46-86-380/520-5500	AC380/DC520V	520V-650V	5500W	46m³/h	86	3"	2m	<780V	≥1.3*PUMP POWER
4/6ADSC46-112-380/520-7500	AC380/DC520V	520V-650V	7500W	46m³/h	112	3"	2m	<780V	≥1.3*PUMP POWER
4/6ADSC65-42-380/520-4000	AC380/DC520V	520V-650V	4000W	65m³/h	42	3"	2m	<780V	≥1.3*PUMP POWER
4/6ADSC65-63-380/520-5500	AC380/DC520V	520V-650V	5500W	65m³/h	63	3"	2m	<780V	≥1.3*PUMP POWER
4/6ADSC65-85-380/520-7500	AC380/DC520V	520V-650V	7500W	65m³/h	85	3"	2m	<780V	≥1.3*PUMP POWER
4/6ADSC95-66-380/520-7500	AC380/DC520V	520V-650V	7500W	95m³/h	66	4"	2m	<780V	≥1.3*PUMP POWER
