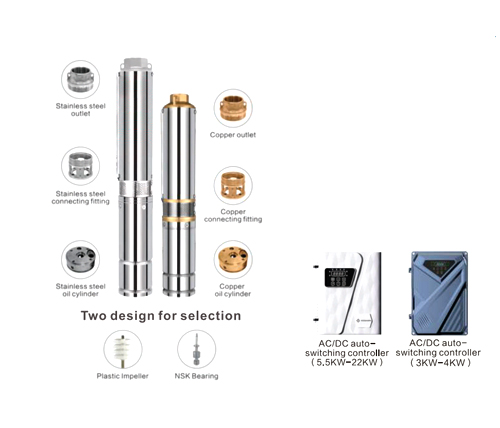

The 4ADPC AC/DC Hybrid Motor Plastic Impeller Solar Deep Well Pump is an advanced water pumping solution designed for both solar and electric power operation. Featuring a hybrid AC/DC motor, it seamlessly switches between solar photovoltaic power and grid electricity, ensuring continuous performance even under unstable sunlight conditions. The lightweight plastic impeller enhances hydraulic efficiency, minimizes wear, and provides strong resistance to corrosion. Built for deep well applications, this pump offers reliable water delivery for irrigation, household, and livestock systems in off-grid or rural environments.
AC/DC Hybrid Motor – Supports both solar DC and AC power input, ensuring flexible use and uninterrupted operation.
High Efficiency Plastic Impeller – Provides smooth water flow, reduces energy consumption, and resists corrosion and abrasion.
Deep Well Design – Optimized for high lift and long-distance water delivery from deep underground sources.
Stainless Steel Components – Durable housing protects against rust, extending the service life in harsh outdoor conditions.
Wide Voltage Adaptability – Compatible with multiple voltage levels and solar controllers for versatile installation.
Energy-Saving and Eco-Friendly – Solar-driven system reduces electricity costs and supports sustainable water supply.
Low Maintenance Construction – Fewer moving parts and hybrid power compatibility reduce downtime and maintenance needs.
Agricultural Irrigation – Efficiently delivers water for farms, orchards, and greenhouses using solar or hybrid power.
Livestock Watering Systems – Supplies reliable water flow to cattle, sheep, and poultry in remote pastures.
Rural and Off-Grid Water Supply – Ideal for homes, villages, and schools without stable grid access.
Backup and Hybrid Water Systems – Provides continuous water supply even during cloudy or low-sunlight conditions.
Landscape and Garden Watering – Suitable for parks, gardens, and environmental water management projects.
| ITEM | Voltage | Optimum input voltage (DC) | Power | Max. Flow | Max. Head | Outlet | Cable | Solar panel - Open circuit voltage (VOC) |
Solar panel - Power |

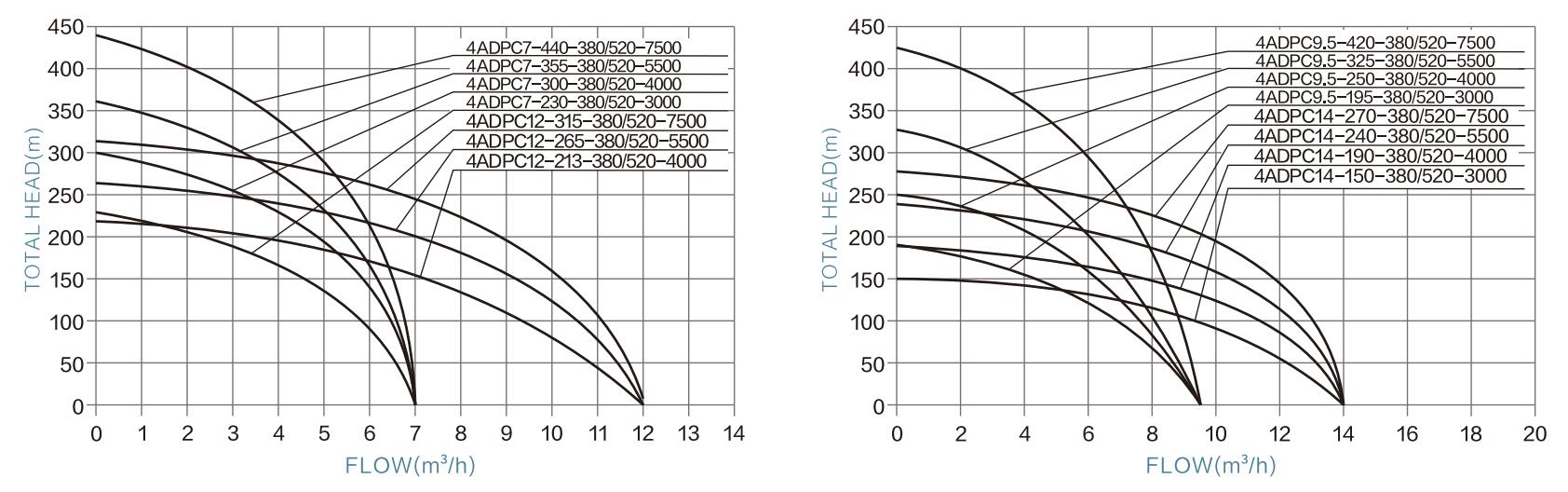

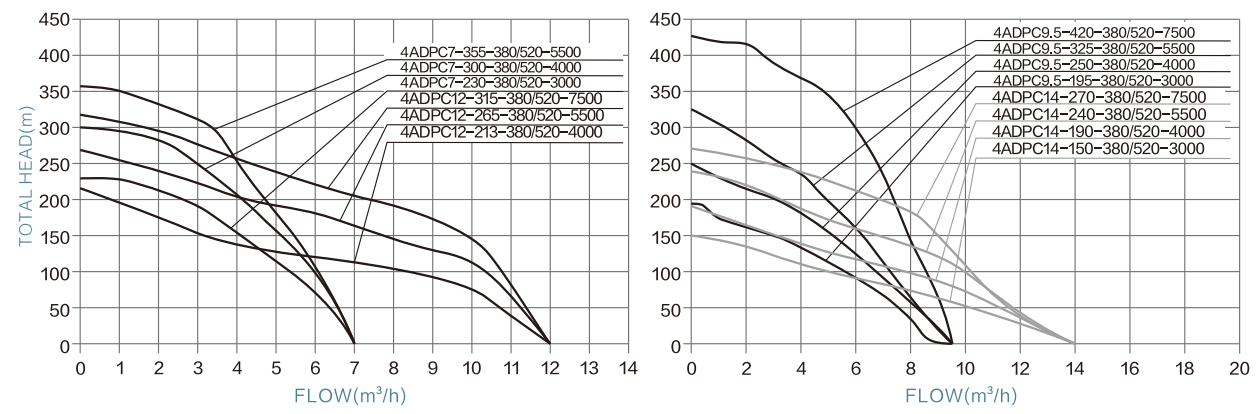

| 4ADPC7-230-380/520-3000 | AC380/DC520V | 520V-650V | 3000W | 7m³/h | 230m | 1.25" | 2m | <900V | ≥1.3*PUMP POWER |
| 4ADPC7-300-380/520-4000 | AC380/DC520V | 520V-650V | 4000W | 7m³/h | 300m | 1.25" | 2m | <900V | ≥1.3*PUMP POWER |
| 4ADPC7-355-380/520-5500 | AC380/DC520V | 520V-650V | 5500W | 7m³/h | 355m | 1.25" | 2m | <900V | ≥1.3*PUMP POWER |
| 4ADPC9.5-195-380/520-3000 | AC380/DC520V | 520V-650V | 3000W | 9.5m³/h | 195m | 2" | 2m | <900V | ≥1.3*PUMP POWER |
| 4ADPC9.5-250-380/520-4000 | AC380/DC520V | 520V-650V | 4000W | 9.5m³/h | 250m | 2" | 2m | <900V | ≥1.3*PUMP POWER |
| 4ADPC9.5-325-380/520-5500 | AC380/DC520V | 520V-650V | 5500W | 9.5m³/h | 325m | 2" | 2m | <900V | ≥1.3*PUMP POWER |
| 4ADPC9.5-420-380/520-7500 | AC380/DC520V | 520V-650V | 7500W | 9.5m³/h | 420m | 2" | 2m | <900V | ≥1.3*PUMP POWER |
| 4ADPC12-213-380/520-4000 | AC380/DC520V | 520V-650V | 4000W | 12m³/h | 213m | 2" | 2m | <900V | ≥1.3*PUMP POWER |
| 4ADPC12-265-380/520-5500 | AC380/DC520V | 520V-650V | 5500W | 12m³/h | 265m | 2" | 2m | <900V | ≥1.3*PUMP POWER |
| 4ADPC12-315-380/520-7500 | AC380/DC520V | 520V-650V | 7500W | 12m³/h | 315m | 2" | 2m | <900V | ≥1.3*PUMP POWER |
| 4ADPC14-150-380/520-3000 | AC380/DC520V | 520V-650V | 3000W | 14m³/h | 150m | 2" | 2m | <900V | ≥1.3*PUMP POWER |
| 4ADPC14-190-380/520-4000 | AC380/DC520V | 520V-650V | 4000W | 14m³/h | 190m | 2" | 2m | <900V | ≥1.3*PUMP POWER |
| 4ADPC14-240-380/520-5500 | AC380/DC520V | 520V-650V | 5500W | 14m³/h | 240m | 2" | 2m | <900V | ≥1.3*PUMP POWER |
| 4ADPC14-270-380/520-7500 | AC380/DC520V | 520V-650V | 7500W | 14m³/h | 270m | 2" | 2m | <900V | ≥1.3*PUMP POWER |
| ITEM | Voltage | Optimum input voltage (DC) | Power | Max. Flow | Max. Head | Outlet | Cable | Solar panel - Open circuit voltage (VOC) |
Solar panel - Power |

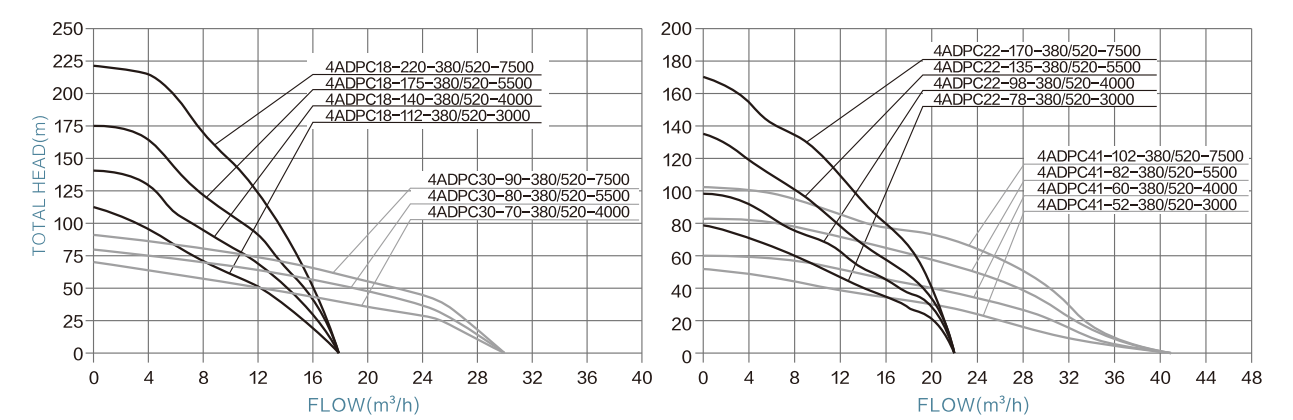

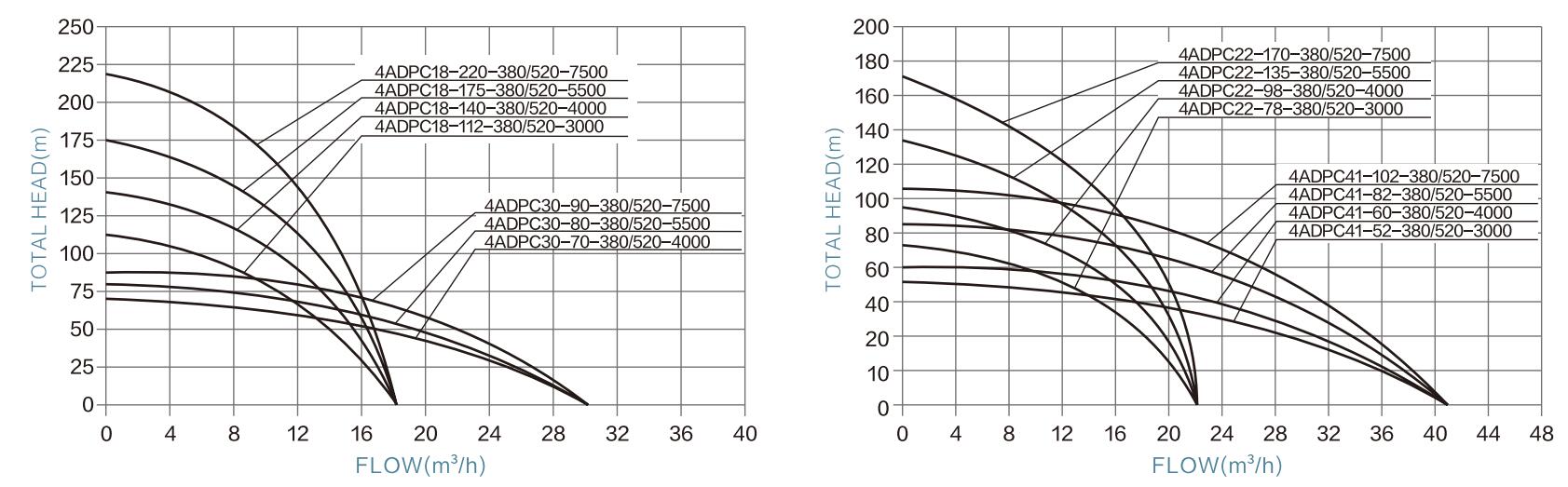

| 4ADPC18-112-380/520-3000 | AC380/DC520V | 520V-650V | 3000W | 18m³/h | 112m | 2" | 2m | <900V | ≥1.3*PUMP POWER |
| 4ADPC18-140-380/520-4000 | AC380/DC520V | 520V-650V | 4000W | 18m³/h | 140m | 2" | 2m | <900V | ≥1.3*PUMP POWER |
| 4ADPC18-175-380/520-5500 | AC380/DC520V | 520V-650V | 5500W | 18m³/h | 175m | 2" | 2m | <900V | ≥1.3*PUMP POWER |
| 4ADPC18-220-380/520-7500 | AC380/DC520V | 520V-650V | 7500W | 18m³/h | 220m | 2" | 2m | <900V | ≥1.3*PUMP POWER |
| 4ADPC22-78-380/520-3000 | AC380/DC520V | 520V-650V | 3000W | 22m³/h | 78m | 2" | 2m | <900V | ≥1.3*PUMP POWER |
| 4ADPC22-98-380/520-4000 | AC380/DC520V | 520V-650V | 4000W | 22m³/h | 98m | 2" | 2m | <900V | ≥1.3*PUMP POWER |
| 4ADPC22-135-380/520-5500 | AC380/DC520V | 520V-650V | 5500W | 22m³/h | 135m | 2" | 2m | <900V | ≥1.3*PUMP POWER |
| 4ADPC22-170-380/520-7500 | AC380/DC520V | 520V-650V | 7500W | 22m³/h | 170m | 2" | 2m | <900V | ≥1.3*PUMP POWER |
| 4ADPC30-70-380/520-4000 | AC380/DC520V | 520V-650V | 4000W | 30m³/h | 70m | 2" | 2m | <900V | ≥1.3*PUMP POWER |
| 4ADPC30-80-380/520-5500 | AC380/DC520V | 520V-650V | 5500W | 30m³/h | 80m | 2" | 2m | <900V | ≥1.3*PUMP POWER |
| 4ADPC30-90-380/520-7500 | AC380/DC520V | 520V-650V | 7500W | 30m³/h | 90m | 2" | 2m | <900V | ≥1.3*PUMP POWER |
| 4ADPC41-52-380/520-3000 | AC380/DC520V | 520V-650V | 3000W | 41m³/h | 52m | 3" | 2m | <900V | ≥1.3*PUMP POWER |
| 4ADPC41-60-380/520-4000 | AC380/DC520V | 520V-650V | 4000W | 41m³/h | 60m | 3" | 2m | <900V | ≥1.3*PUMP POWER |
| 4ADPC41-82-380/520-5500 | AC380/DC520V | 520V-650V | 5500W | 41m³/h | 82m | 3" | 2m | <900V | ≥1.3*PUMP POWER |
| 4ADPC41-102-380/520-7500 | AC380/DC520V | 520V-650V | 7500W | 41m³/h | 102m | 3" | 2m | <900V | ≥1.3*PUMP POWER |
