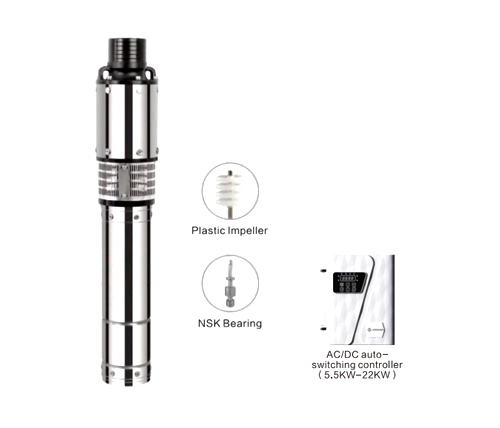

The 6ADPC AC/DC Brushless Motor Solar Deep Well Pump is a next-generation water pumping solution that combines dual-power compatibility with advanced motor technology. Designed for solar and grid-powered systems, it features a high-efficiency brushless DC motor capable of running on both AC and DC inputs, ensuring continuous operation even under fluctuating sunlight or unstable grid conditions.
The pump integrates premium NSK bearings for smooth and silent rotation, delivering outstanding durability and mechanical stability. Its high-strength plastic impeller provides exceptional hydraulic efficiency while remaining lightweight, corrosion-resistant, and energy-saving. Built with deep-well capability, this pump is ideal for agricultural, residential, and livestock water supply systems in off-grid or hybrid setups.
AC/DC Brushless Motor System – Intelligent dual-mode design supports both solar DC and grid AC power with seamless automatic switching.
NSK High-Precision Bearings – Guarantees long-lasting stability, reduced friction, and quieter operation under continuous use.
Plastic Impeller Technology – Lightweight, anti-corrosive, and wear-resistant impeller ensures efficient water delivery and long service life.
Solar Powered Efficiency – Operates directly from solar panels through MPPT controllers, improving energy utilization.
High Lift and Strong Flow Performance – Designed for deep wells, providing reliable and steady water output for irrigation and household needs.
Durable Construction – Stainless steel body and sealed structure prevent rust and extend operational lifespan in harsh environments.
Low Maintenance and Eco-Friendly – Brushless motor reduces mechanical wear, requiring minimal servicing while offering zero-emission operation.
Agricultural Irrigation Systems – Ideal for crop fields, orchards, and greenhouses powered by solar or hybrid systems.
Livestock and Ranch Water Supply – Provides continuous, clean water for remote pastures and farms.
Rural and Off-Grid Domestic Water Use – Ensures reliable water delivery in areas without stable grid electricity.
Solar Borehole Projects – good for solar-powered deep-well installations and community water programs.
Hybrid Backup Systems – Operates efficiently with solar energy by day and AC power by night or cloudy weather.

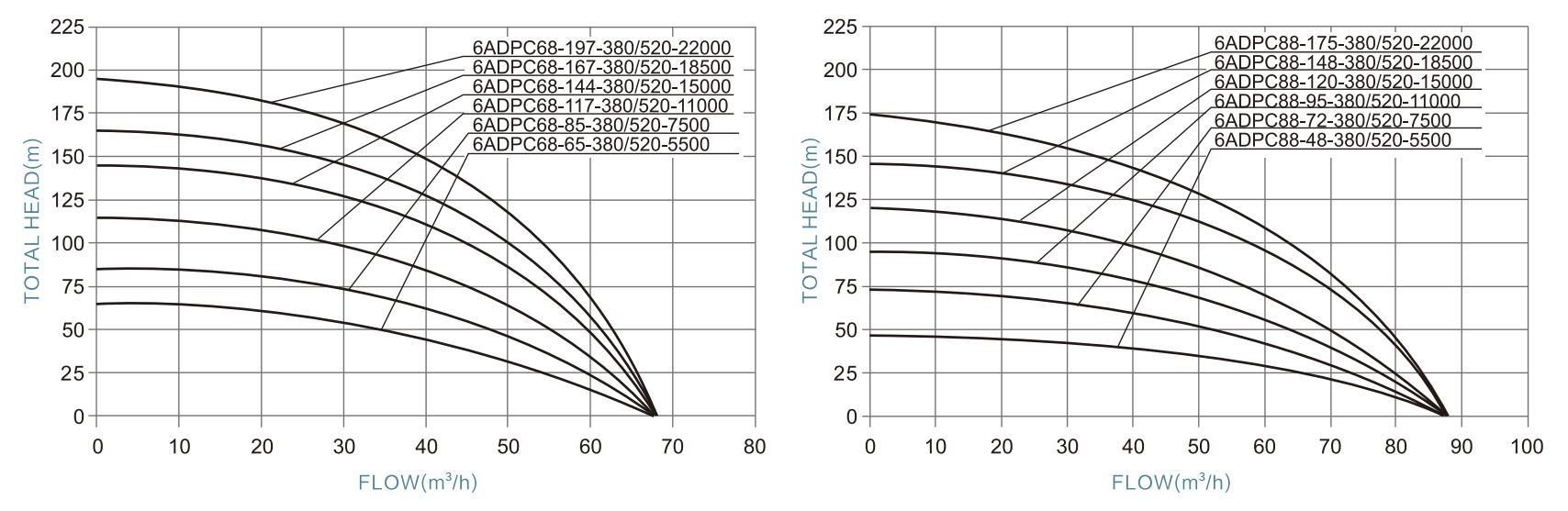

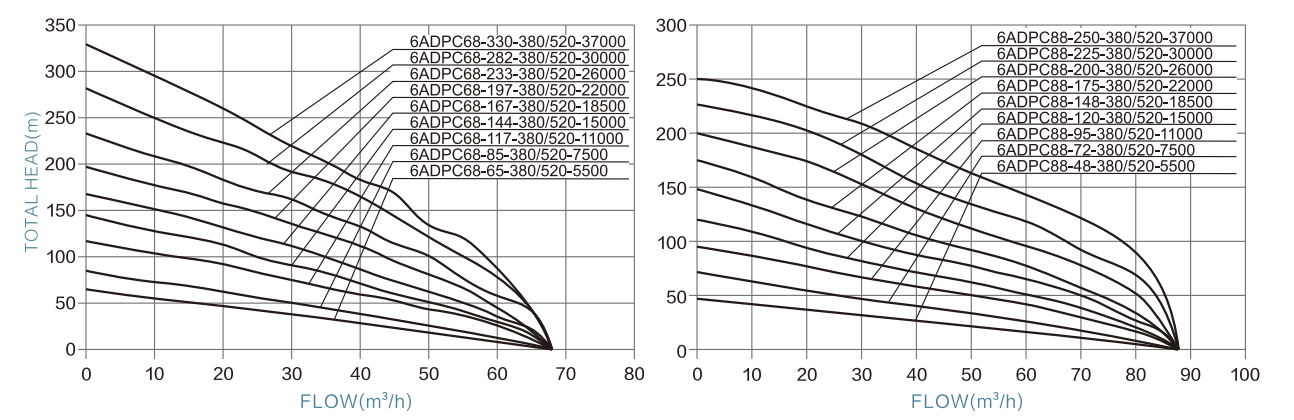

| ITEM | Voltage | Optimum input voltage (DC) | Power | Max. Flow | Max. Head | Outlet | Cable | Solar panel - Open circuit voltage (VOC) |
Solar panel - Power |
| 6ADPC68-65-380/520-5500 | AC380/DC520V | 520V-650V | 5500W | 68m³/h | 65m | 3" | 2m | <900V | ≥1.3*PUMP POWER |
| 6ADPC68-85-380/520-7500 | AC380/DC520V | 520V-650V | 7500W | 68m³/h | 85m | 3" | 2m | <900V | ≥1.3*PUMP POWER |
| 6ADPC68-117-380/520-11000 | AC380/DC520V | 520V-650V | 11000W | 68m³/h | 117m | 3" | 2m | <900V | ≥1.3*PUMP POWER |
| 6ADPC68-144-380/520-15000 | AC380/DC520V | 520V-650V | 15000W | 68m³/h | 144m | 3" | 2m | <900V | ≥1.3*PUMP POWER |
| 6ADPC68-167-380/520-18500 | AC380/DC520V | 520V-650V | 18500W | 68m³/h | 167m | 3" | 2m | <900V | ≥1.3*PUMP POWER |
| 6ADPC68-197-380/520-22000 | AC380/DC520V | 520V-650V | 22000W | 68m³/h | 197m | 3" | 2m | <900V | ≥1.3*PUMP POWER |
| 6ADPC68-233-380/520-26000 | AC380/DC520V | 520V-650V | 26000W | 68m³/h | 233m | 3" | 2m | <900V | ≥1.3*PUMP POWER |
| 6ADPC68-282-380/520-30000 | AC380/DC520V | 520V-650V | 30000W | 68m³/h | 282m | 3" | 2.5m | <900V | ≥1.3*PUMP POWER |
| 6ADPC68-330-380/520-37000 | AC380/DC520V | 520V-650V | 37000W | 68m³/h | 330m | 3" | 2.5m | <900V | ≥1.3*PUMP POWER |
| 6ADPC88-48-380/520-5500 | AC380/DC520V | 520V-650V | 5500W | 88m³/h | 48m | 3" | 2.5m | <900V | ≥1.3*PUMP POWER |
| 6ADPC88-72-380/520-7500 | AC380/DC520V | 520V-650V | 7500W | 88m³/h | 72m | 3" | 2m | <900V | ≥1.3*PUMP POWER |
| 6ADPC88-95-380/520-11000 | AC380/DC520V | 520V-650V | 11000W | 88m³/h | 95m | 3" | 2m | <900V | ≥1.3*PUMP POWER |
| 6ADPC88-120-380/520-15000 | AC380/DC520V | 520V-650V | 15000W | 88m³/h | 120m | 3" | 2m | <900V | ≥1.3*PUMP POWER |
| 6ADPC88-148-380/520-18500 | AC380/DC520V | 520V-650V | 18500W | 88m³/h | 148m | 3" | 2m | <900V | ≥1.3*PUMP POWER |
| 6ADPC88-175-380/520-22000 | AC380/DC520V | 520V-650V | 22000W | 88m³/h | 175m | 3" | 2m | <900V | ≥1.3*PUMP POWER |
| 6ADPC88-200-380/520-26000 | AC380/DC520V | 520V-650V | 26000W | 88m³/h | 200m | 3" | 2m | <900V | ≥1.3*PUMP POWER |
| 6ADPC88-225-380/520-30000 | AC380/DC520V | 520V-650V | 30000W | 88m³/h | 225m | 3" | 2m | <900V | ≥1.3*PUMP POWER |
| 6ADPC88-250-380/520-37000 | AC380/DC520V | 520V-650V | 37000W | 88m³/h | 250m | 3" | 2m | <900V | ≥1.3*PUMP POWER |
