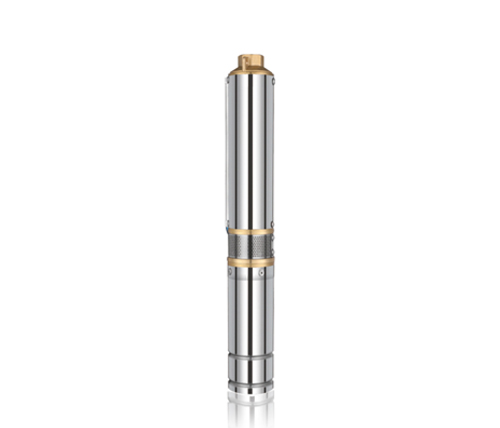

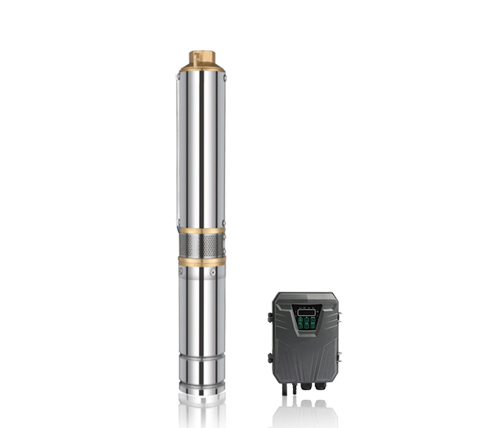

2EPC Brushless DC Motor Submersible Solar Deep Well Pump
View All Products
en
The 2EPC Brushless DC Motor Submersible Solar Deep Well Pump is a compact yet powerful water lifting solution engineered for efficient performance in remote or off-grid areas. Featuring a 2-inch outlet design, it utilises a brushless DC motor powered directly by solar energy, delivering high efficiency and low maintenance operation. Built with a copper outlet and copper oil cylinder, the pump ensures outstanding durability, outstanding sealing, and long-lasting reliability under continuous use. Its NSK bearings guarantee smooth rotation, while the high-performance plastic impeller provides lightweight construction and outstanding water flow with reduced wear.
Brushless DC Motor Drive – Delivers high efficiency, low noise, and longer lifespan compared with brushed types.
2-Inch Outlet Design – Standard compact size for deep well and narrow borehole installations.
Copper Outlet & Copper Oil Cylinder – Strong corrosion resistance and enhanced sealing performance for harsh environments.
NSK Bearings – Ensures stable motor operation, reduced friction, and extended pump life.
Plastic Impeller Technology – Lightweight, wear-resistant, and optimized for high water delivery efficiency.

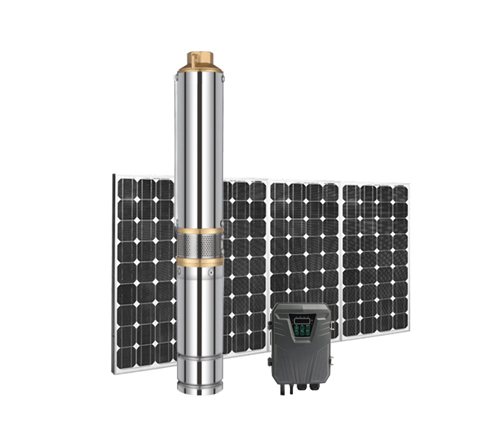

Solar-Powered System – Compatible with solar panels and MPPT controllers, ideal for off-grid water applications.
Easy Installation & Low Maintenance – Simple structure and durable materials minimize service needs.
Agricultural Irrigation – Ideal for small to medium farm irrigation using solar energy.
Livestock Water Supply – Provides reliable water for cattle, sheep, and rural pastures.
Domestic & Village Water Systems – Efficient water supply for rural homes and off-grid communities.
Garden and Greenhouse Irrigation – Maintains stable water flow for plants and crops.
Solar-Powered Water Projects – Suitable for remote, environmentally friendly water supply systems.

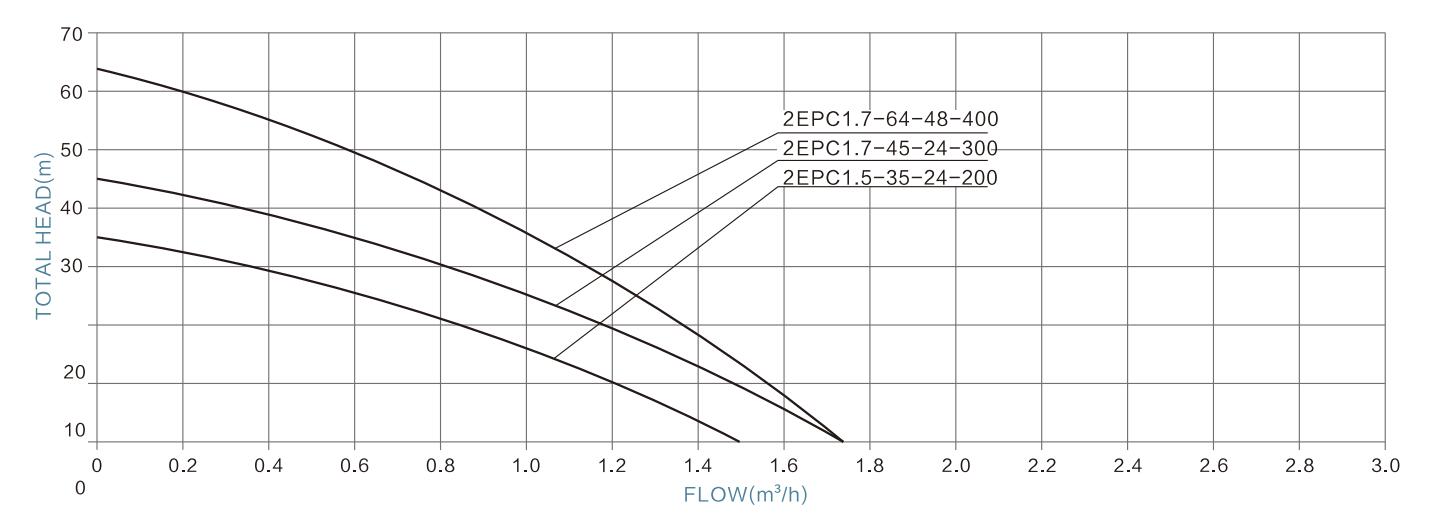

| ITEM | Voltage | Optimum input voltage (DC) | Power | Max. Flow | Max. Head | Outlet | Cable | Solar panel - Open circuit voltage (VOC) |
Solar panel - Power |
| 2EPC1.5-35-24-200 | 24V | 30V-48V | 200W | 1.5m³/h | 35m | 0.75" | 2m | <60V | ≥1.3*PUMP POWER |
| 2EPC1.7-45-24-300 | 24V | 30V-48V | 300W | 1.7m³/h | 45m | 0.75" | 2m | <60V | ≥1.3*PUMP POWER |
| 2EPC1.7-64-48-400 | 48V | 60V-90V | 400W | 1.7m³/h | 64m | 0.75" | 2m | <110V | ≥1.3*PUMP POWER |
