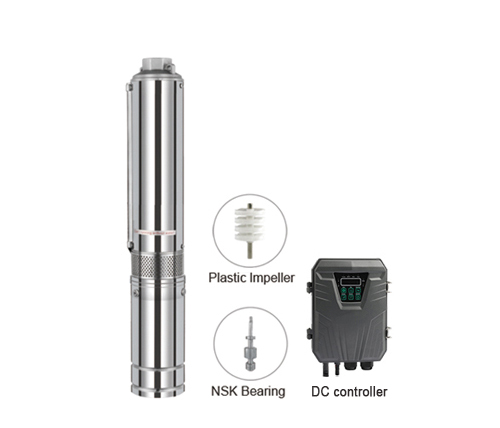

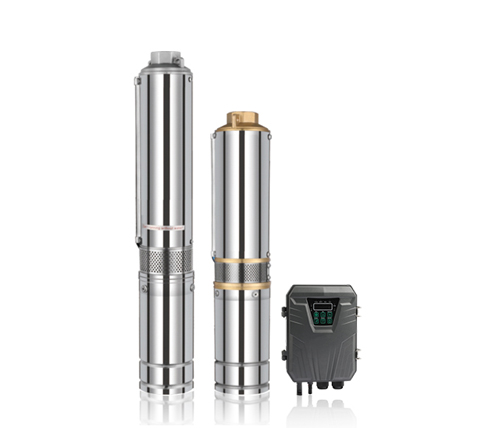

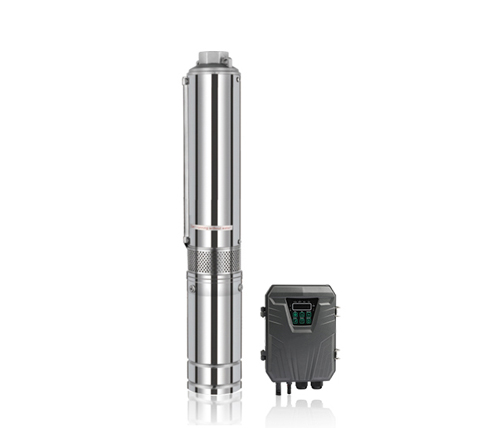

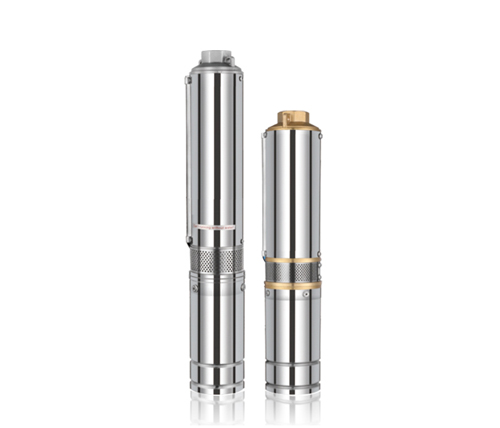

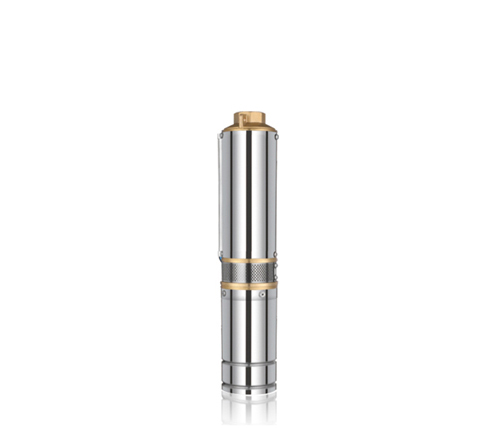

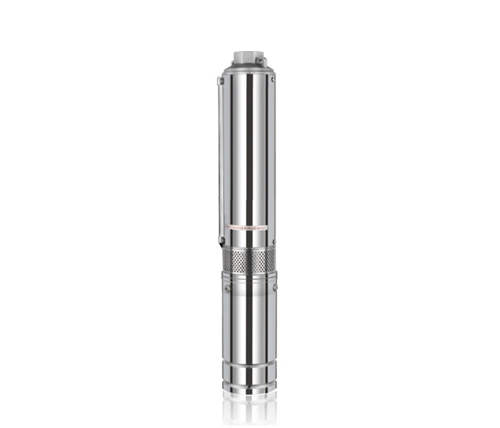

The 3EPC DC Motor Plastic Impeller Solar Deep Well Pump is an energy-efficient water pumping solution designed for remote or off-grid water supply systems. Powered by solar energy and driven by a high-performance DC motor, this pump combines lightweight construction with stable performance. Its durable plastic impeller ensures reliable water flow while maintaining resistance to corrosion and wear, making it ideal for long-term outdoor use.
High-Efficiency DC Motor – Brushless DC motor ensures smooth operation, low power consumption, and extended service life.

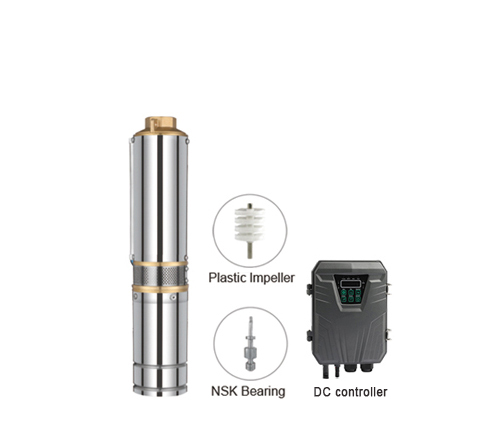

Plastic Impeller Design – Corrosion-resistant impeller reduces weight and improves hydraulic efficiency, suitable for various water quality conditions.

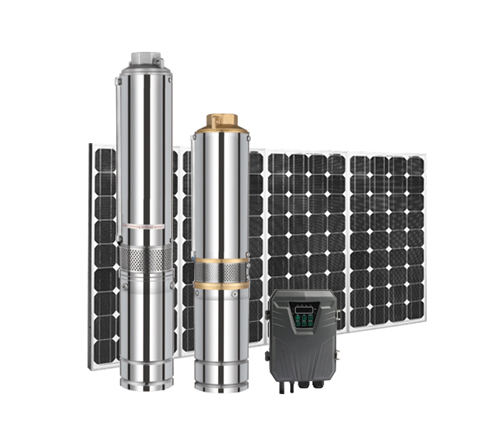

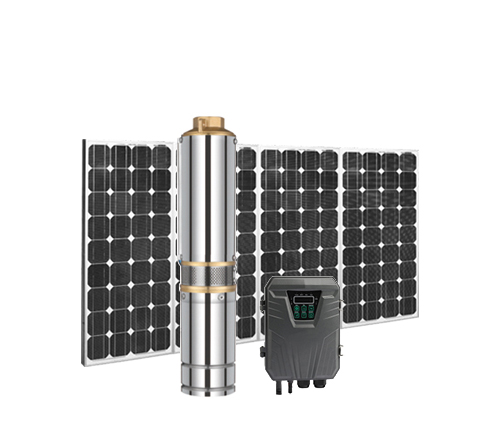

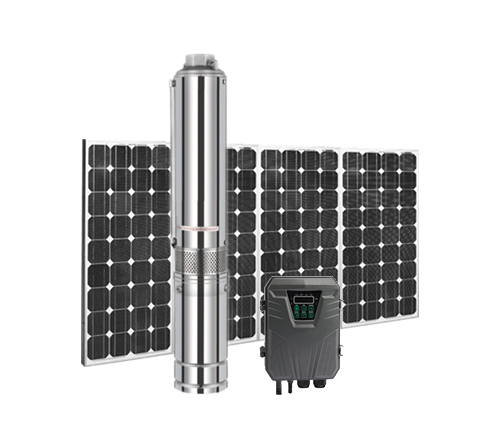

Solar-Powered Operation – Works directly with solar panels for off-grid environments, reducing energy costs and environmental impact.
Stable Water Output – Capable of maintaining steady water flow from deep wells with high lift and low noise.
Durable and Lightweight Construction – Combines high-strength materials for easy installation and long-term reliability.

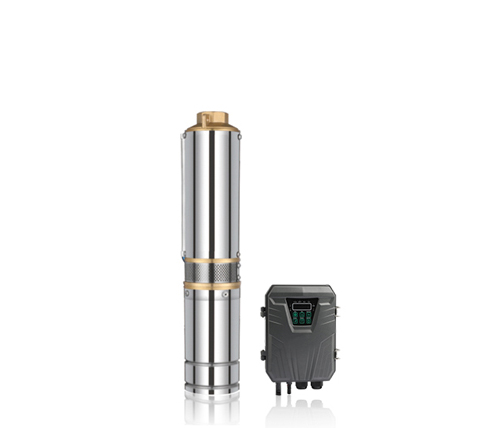

MPPT Controller Compatible – Optional smart controller for automatic voltage adjustment and system protection.
Agricultural Irrigation – Efficiently delivers water to farmlands in remote areas.
Livestock Watering Systems – Provides reliable water supply for cattle, sheep, and poultry farms.
Domestic Water Supply – Suitable for rural households or communities with limited grid access.
Greenhouse and Garden Watering – Maintains consistent water flow for controlled irrigation systems.
Solar-Powered Water Projects – Ideal for government or NGO off-grid water development programs.

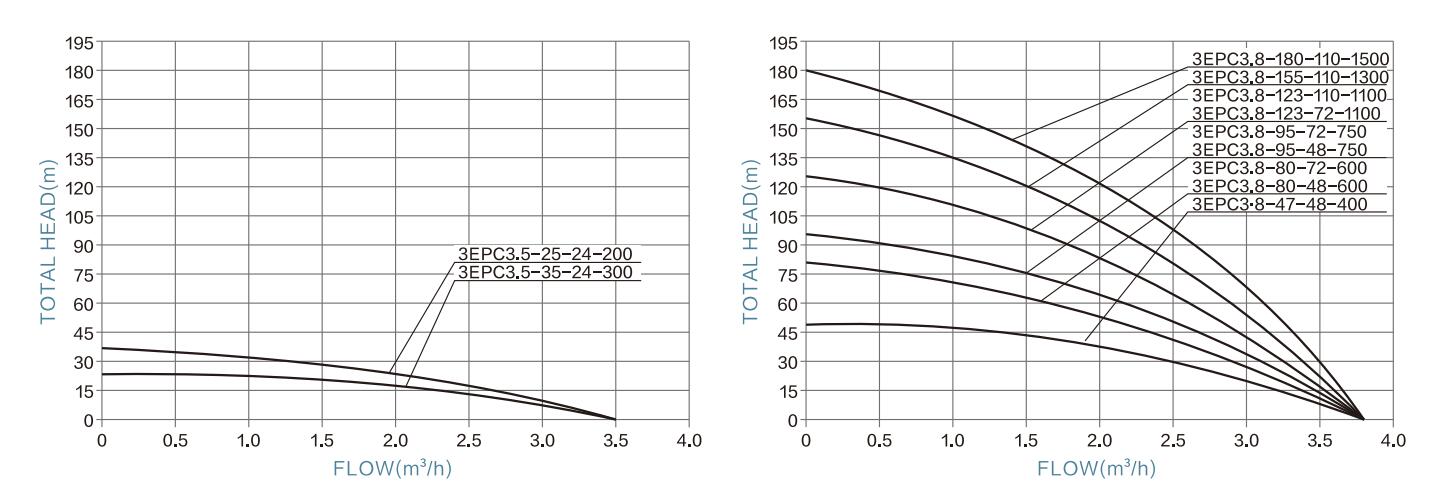

| ITEM | Voltage | Optimum input voltage (DC) | Power | Max. Flow | Max. Head | Outlet | Cable |
Solar panel - Open circuit voltage (VOC) |
Solar panel - Power |
| 3EPC3.5-25-24-200 | 24V | 30V-48V | 200W | 3.5m³/h | 25m | 1.25" | 2m | <60V | ≥1.3*PUMP POWER |
| 3EPC3.5-35-24-300 | 24V | 30V-48V | 300W | 3.5m³/h | 35m | 1.25" | 2m | <60V | ≥1.3*PUMP POWER |
| 3EPC3.8-47-48-400 | 48V | 60V-90V | 400W | 3.8m³/h | 47m | 1.25" | 2m | <110V | ≥1.3*PUMP POWER |
| 3EPC3.8-80-48-600 | 48V | 60V-90V | 600W | 3.8m³/h | 80m | 1.25" | 2m | <110V | ≥1.3*PUMP POWER |
| 3EPC3.8-80-72-600 | 72V | 90V-120V | 600W | 3.8m³/h | 80m | 1.25" | 2m | <170V | ≥1.3*PUMP POWER |
| 3EPC3.8-95-48-750 | 48V | 60V-90V | 750W | 3.8m³/h | 95m | 1.25" | 2m | <110V | ≥1.3*PUMP POWER |
| 3EPC3.8-95-72-750 | 72V | 90V-120V | 750W | 3.8m³/h | 95m | 1.25" | 2m | <170V | ≥1.3*PUMP POWER |
| 3EPC3.8-123-72-1100 | 72V | 90V-120V | 1100W | 3.8m³/h | 123m | 1.25" | 2m | <170V | ≥1.3*PUMP POWER |
| 3EPC3.8-123-110-1100 | 110V | 110V-150V | 1100W | 3.8m³/h | 123m | 1.25" | 2m | <220V | ≥1.3*PUMP POWER |
| 3EPC3.8-155-110-1300 | 110V | 110V-150V | 1300W | 3.8m³/h | 155m | 1.25" | 2m | <220V | ≥1.3*PUMP POWER |
| 3EPC3.8-180-110-1500 | 110V | 110V-150V | 1500W | 3.8m³/h | 180m | 1.25" | 2m | <220V | ≥1.3*PUMP POWER |

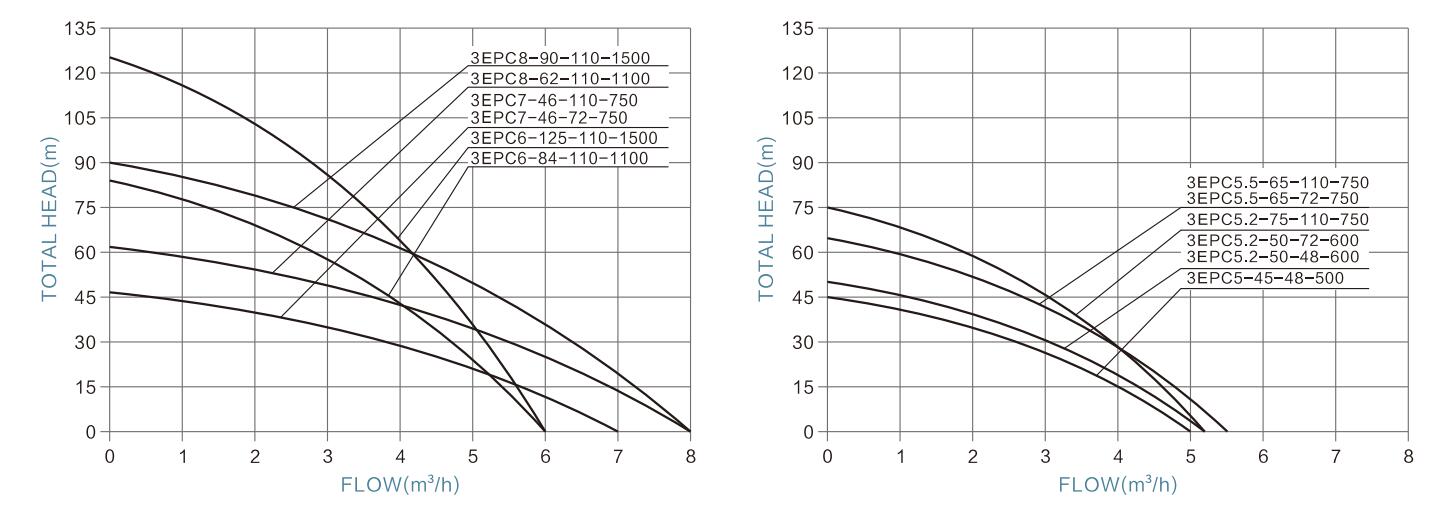

| ITEM | Voltage | Optimum input voltage (DC) | Power | Max. Flow | Max. Head | Outlet | Cable |
Solar panel - |
Solar panel - Power |
| 3EPC5-45-48-500 | 48V | 60V-90V | 500W | 5m³/h | 45m | 1.5" | 2m | <110V | ≥1.3*PUMP POWER |
| 3EPC5.2-50-48-600 | 48V | 60V-90V | 600W | 5.2m³/h | 50m | 1.5" | 2m | <110V | ≥1.3*PUMP POWER |
| 3EPC5.2-50-72-600 | 72V | 90V-120V | 600W | 5.2m³/h | 50m | 1.5" | 2m | <170V | ≥1.3*PUMP POWER |
| 3EPC5.2-75-110-750 | 110V | 110V-150V | 750W | 5.2m³/h | 75m | 1.5" | 2m | <220V | ≥1.3*PUMP POWER |
| 3EPC5.5-65-72-750 | 72V | 90V-120V | 750W | 5.5m³/h | 65m | 1.5" | 2m | <170V | ≥1.3*PUMP POWER |
| 3EPC5.5-65-110-750 | 110V | 110V-150V | 750W | 5.5m³/h | 65m | 1.5" | 2m | <220V | ≥1.3*PUMP POWER |
| 3EPC6-84-110-1100 | 110V | 110V-150V | 1100W | 6m³/h | 84m | 1.5" | 2m | <220V | ≥1.3*PUMP POWER |
| 3EPC6-125-110-1500 | 110V | 110V-150V | 1500W | 6m³/h | 125m | 1.5" | 2m | <220V | ≥1.3*PUMP POWER |
| 3EPC7-46-72-750 | 72V | 90V-120V | 750W | 7m³/h | 46m | 1.5" | 2m | <170V | ≥1.3*PUMP POWER |
| 3EPC7-46-110-750 | 110V | 110V-150V | 750W | 7m³/h | 46m | 1.5" | 2m | <220V | ≥1.3*PUMP POWER |
| 3EPC8-62-110-1100 | 110V | 110V-150V | 1100W | 8m³/h | 62m | 1.5" | 2m | <220V | ≥1.3*PUMP POWER |
| 3EPC8-90-110-1500 | 110V | 110V-150V | 1500W | 8m³/h | 90m | 1.5" | 2m | <220V | ≥1.3*PUMP POWER |
