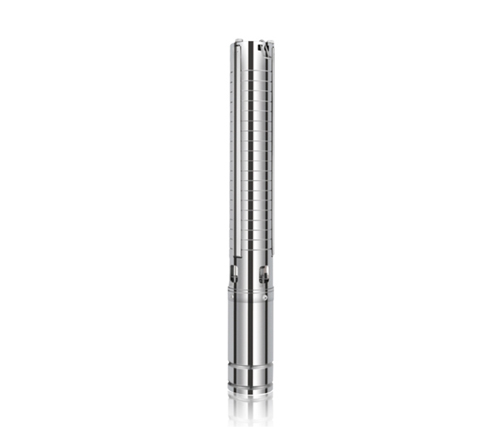

The 3ESC Brushless DC Motor Deep Well Pump is engineered for reliable and maintenance-free water pumping in deep well applications. Featuring a high-performance brushless DC motor and a corrosion-resistant stainless steel impeller, this pump delivers consistent water flow while reducing energy consumption. Its compact and robust design makes it an ideal solution for areas where efficiency, durability, and quiet operation are essential.
Brushless DC Motor: Offers long service life, low maintenance, and quiet operation, good for continuous deep well pumping.
Stainless Steel Impeller: Ensures corrosion resistance and smooth water flow, maintaining efficiency even under harsh conditions.
Compact and Durable Design: Space-saving construction suitable for various deep well installations.
Energy-Efficient Performance: Optimized for lower power consumption while maintaining high water output.

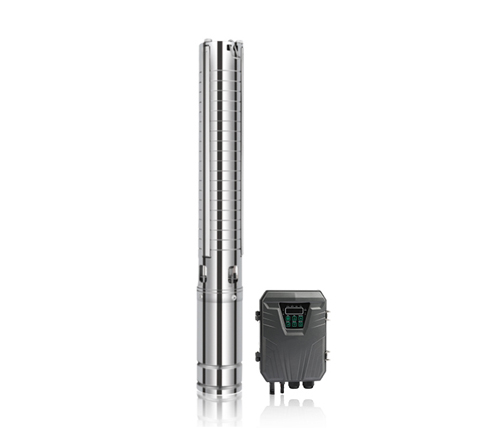

Versatile Operation: Can be integrated into solar-powered or AC-powered systems for flexible water supply solutions.
Quiet & Stable Pumping: Reduces vibration and noise, ideal for residential, agricultural, and livestock applications.
Applications :
Deep well irrigation for farms, orchards, and greenhouses
Off-grid or residential water supply systems
Livestock and pasture water distribution
Remote water supply projects requiring quiet, efficient pumping

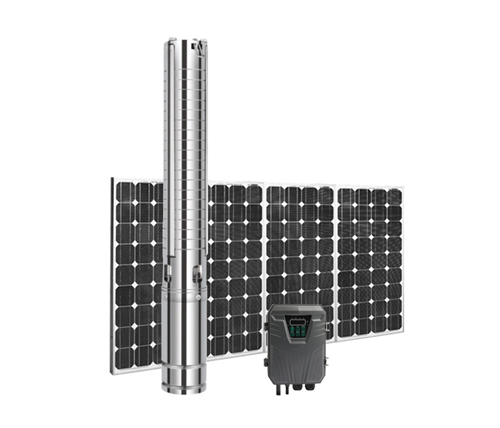

Solar-powered or hybrid water pumping solutions

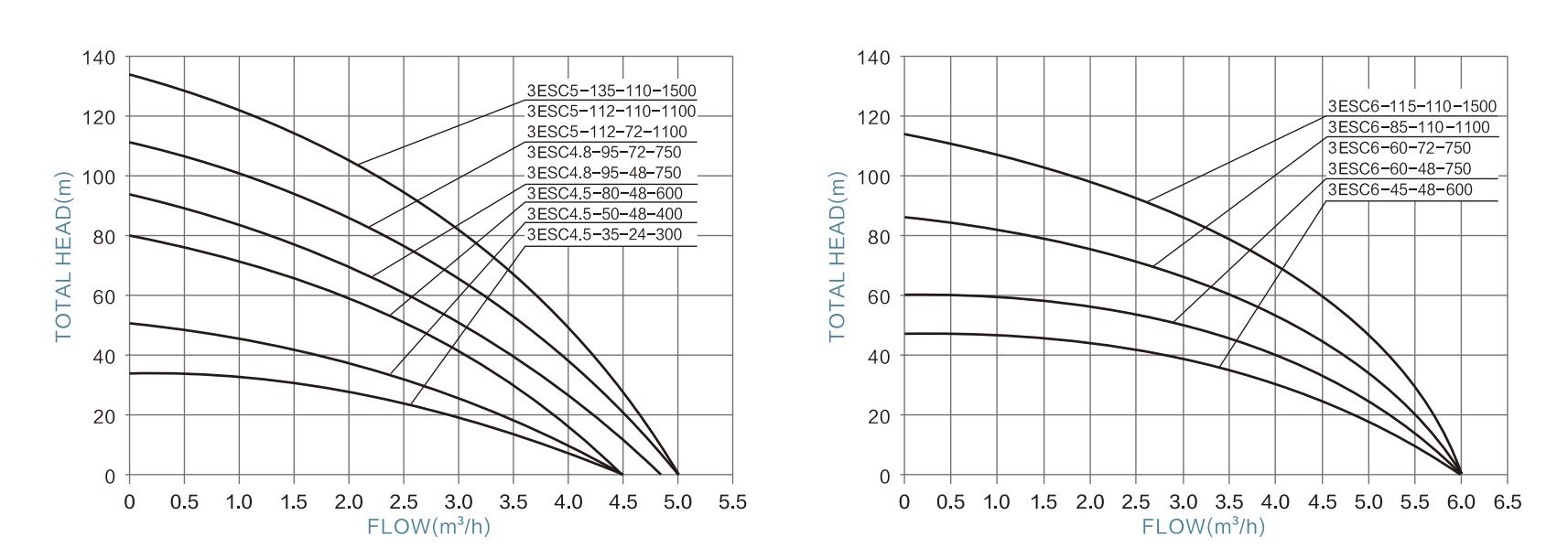

| ITEM | Voltage | Optimum input voltage (DC) | Power | Max. Flow | Max. Head | Outlet | Cable | Solar panel - Open circuit voltage (VOC) |
Solar panel - Power |
| 3ESC4.5-35-24-300 | 24V | 30V-48V | 300W | 4.5m³/h | 35m | 1.25" | 2m | <60V | ≥1.3*PUMP POWER |
| 3ESC4.5-50-48-400 | 48V | 60V-90V | 400W | 4.5m³/h | 50m | 1.25" | 2m | <110V | ≥1.3*PUMP POWER |
| 3ESC4.5-80-48-600 | 48V | 60V-90V | 600W | 4.5m³/h | 80m | 1.25" | 2m | <110V | ≥1.3*PUMP POWER |
| 3ESC4.8-95-48-750 | 48V | 60V-90V | 750W | 4.8m³/h | 95m | 1.25" | 2m | <110V | ≥1.3*PUMP POWER |
| 3ESC4.8-95-72-750 | 72V | 90V-120V | 750W | 4.8m³/h | 95m | 1.25" | 2m | <170V | ≥1.3*PUMP POWER |
| 3ESC5-112-72-1100 | 72V | 90V-120V | 1100W | 5m³/h | 112m | 1.25" | 2m | <170V | ≥1.3*PUMP POWER |
| 3ESC5-112-110-1100 | 110V | 110V-150V | 1100W | 5m³/h | 112m | 1.25" | 2m | <220V | ≥1.3*PUMP POWER |
| 3ESC5-135-110-1500 | 110V | 110V-150V | 1500W | 5m³/h | 135m | 1.25" | 2m | <220V | ≥1.3*PUMP POWER |
| 3ESC6-45-48-600 | 48V | 60V-90V | 600W | 6m³/h | 45m | 1.25" | 2m | <110V | ≥1.3*PUMP POWER |
| 3ESC6-60-48-750 | 48V | 60V-90V | 750W | 6m³/h | 60m | 1.25" | 2m | <110V | ≥1.3*PUMP POWER |
| 3ESC6-60-72-750 | 72V | 90V-120V | 750W | 6m³/h | 60m | 1.25" | 2m | <170V | ≥1.3*PUMP POWER |
| 3ESC6-85-110-1100 | 110V | 110V-150V | 1100W | 6m³/h | 85m | 1.25" | 2m | <220V | ≥1.3*PUMP POWER |
| 3ESC6-115-110-1500 | 110V | 110V-150V | 1500W | 6m³/h | 115m | 1.25" | 2m | <220V | ≥1.3*PUMP POWER |
