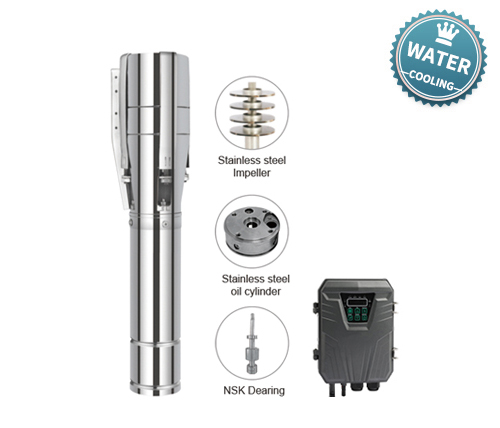

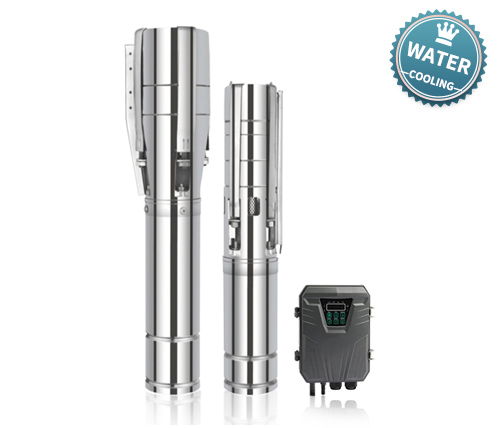

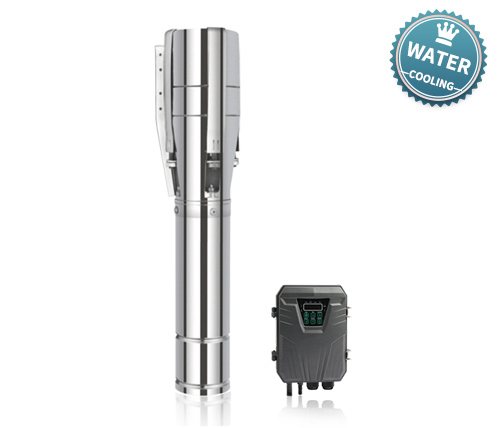

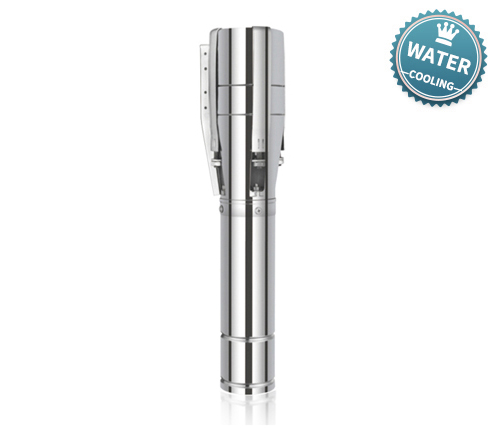

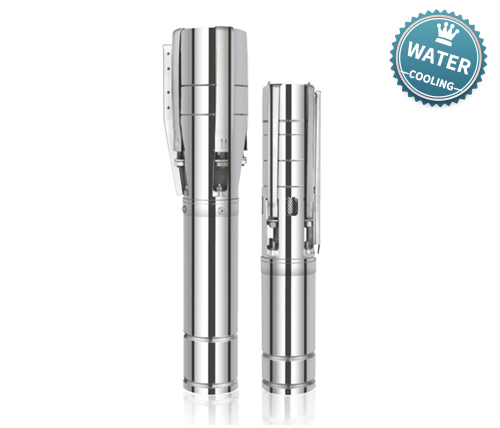

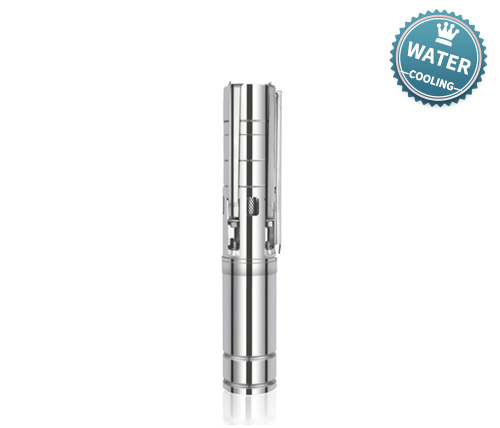

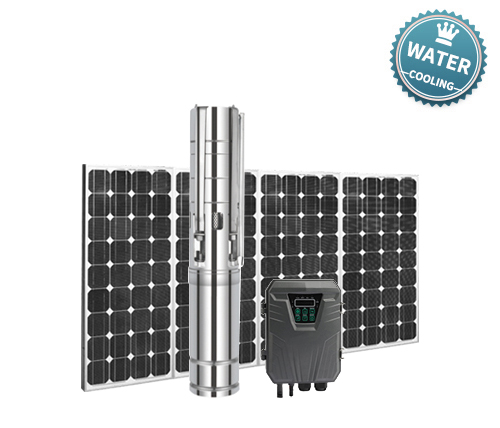

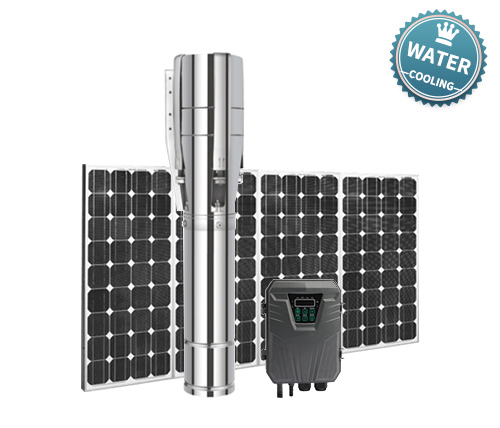

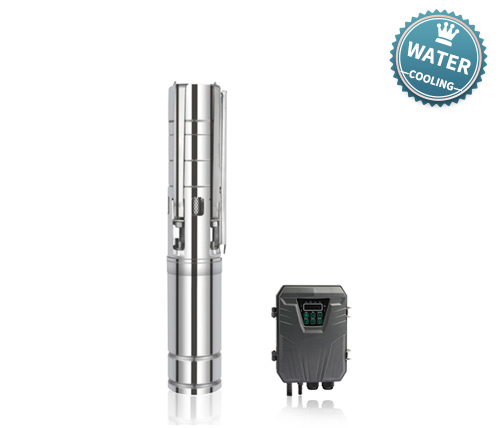

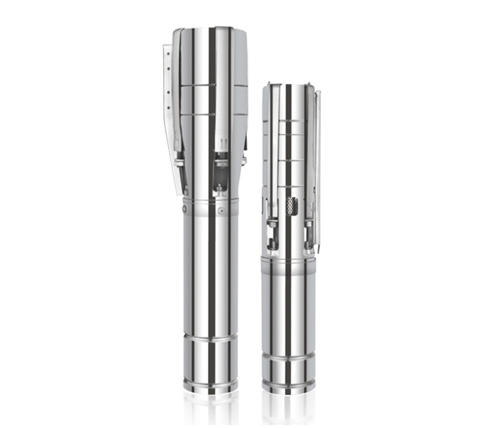

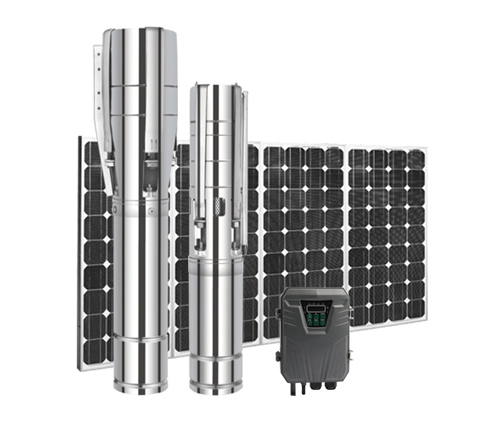

The 4ESC & 4/6ESC DC Powered Solar Deep Well Pump is specifically designed for off-grid and solar-powered applications, delivering reliable water supply from deep wells. Equipped with a corrosion-resistant stainless steel impeller and a robust DC motor, this pump ensures high efficiency and long-term durability. Its compact design and energy-efficient performance make it ideal for residential, agricultural, and remote water systems where consistent pumping is required.
DC-Powered Operation: Optimized for solar or battery-powered systems, providing stable water flow in off-grid locations.

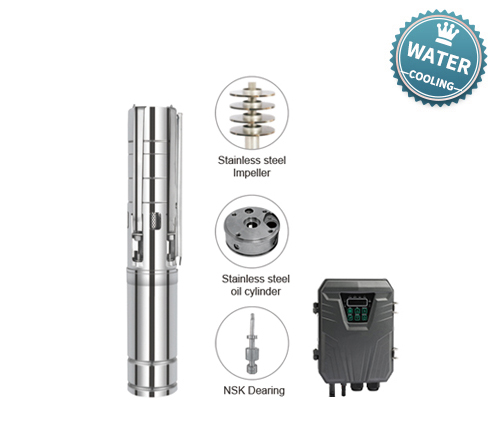

Stainless Steel Impeller: Corrosion-resistant and durable, ensuring reliable performance in deep well pumping.
High Efficiency & Low Energy Consumption: Brushless DC motor design improves water output while minimizing power usage.
Compact & Robust Design: Easy to install in wells with limited space while providing long-term durability.
Quiet and Stable Pumping: Low vibration and noise suitable for residential and agricultural environments.
Versatile Water Supply Solution: Ideal for irrigation, livestock watering, rural households, and solar-powered systems.
Applications :
Solar deep well irrigation for farmlands, orchards, and greenhouses
Off-grid household and community water supply
Livestock and pasture watering systems
Remote or rural water projects requiring reliable DC-powered pumping
Small-scale solar-powered water transfer and storage systems

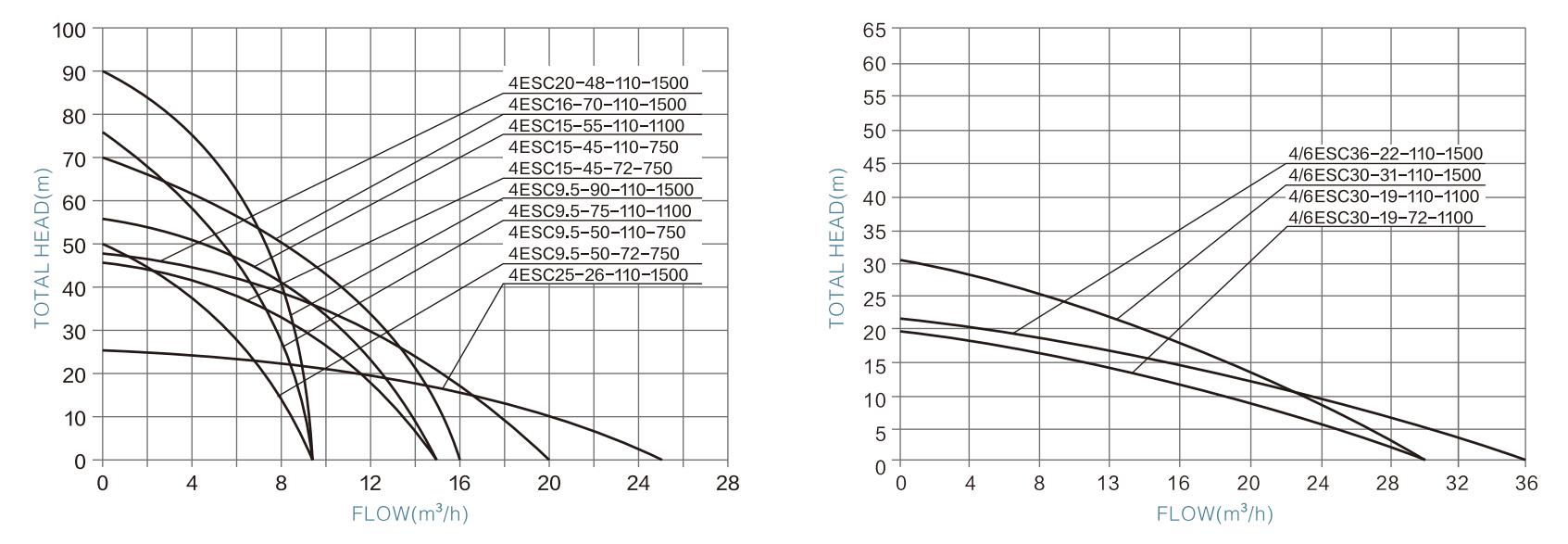

| ITEM | Voltage | Optimum input voltage (DC) | Power | Max. Flow | Max. Head | Outlet | Cable | Solar panel - Open circuit voltage (VOC) |
Solar panel - Power |
| 4ESC9.5-50-72-750 | 72V | 90V-120V | 750W | 9.5m³/h | 50m | 2" | 2m | <170V | ≥1.3*PUMP POWER |
| 4ESC9.5-50-110-750 | 110V | 110V-150V | 750W | 9.5m³/h | 50m | 2" | 2m | <220V | ≥1.3*PUMP POWER |
| 4ESC9.5-75-110-1100 | 110V | 110V-150V | 1100W | 9.5m³/h | 75m | 2" | 2m | <220V | ≥1.3*PUMP POWER |
| 4ESC9.5-90-110-1500 | 110V | 110V-150V | 1500W | 9.5m³/h | 90m | 2" | 2m | <220V | ≥1.3*PUMP POWER |
| 4ESC15-45-72-750 | 72V | 90V-120V | 750W | 15m³/h | 45m | 2" | 2m | <170V | ≥1.3*PUMP POWER |
| 4ESC15-45-110-750 | 110V | 110V-150V | 750W | 15m³/h | 45m | 2" | 2m | <220V | ≥1.3*PUMP POWER |
| 4ESC15-55-110-1100 | 110V | 110V-150V | 1100W | 15m³/h | 55m | 2" | 2m | <220V | ≥1.3*PUMP POWER |
| 4ESC16-70-110-1500 | 110V | 110V-150V | 1500W | 16m³/h | 70m | 2" | 2m | <220V | ≥1.3*PUMP POWER |
| 4ESC20-48-110-1500 | 110V | 110V-150V | 1500W | 20m³/h | 48m | 2" | 2m | <220V | ≥1.3*PUMP POWER |
| 4ESC25-26-110-1500 | 110V | 110V-150V | 1500W | 25m³/h | 26m | 2" | 2m | <220V | ≥1.3*PUMP POWER |
| 4/6ESC30-19-72-1100 | 72V | 90V-120V | 1100W | 30m³/h | 19m | 3" | 2m | <170V | ≥1.3*PUMP POWER |
| 4/6ESC30-19-110-1100 | 110V | 110V-150V | 1100W | 30m³/h | 19m | 3" | 2m | <220V | ≥1.3*PUMP POWER |
| 4/6ESC30-31-110-1500 | 110V | 110V-150V | 1500W | 30m³/h | 31m | 3" | 2m | <220V | ≥1.3*PUMP POWER |
| 4/6ESC36-22-110-1500 | 110V | 110V-150V | 1500W | 36m³/h | 22m | 3" | 2m | <220V | ≥1.3*PUMP POWER |
