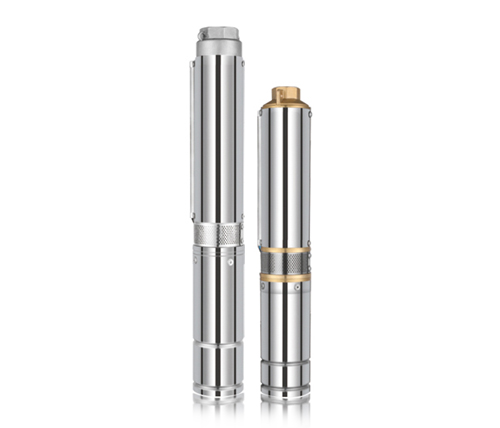

Name: 4EPC Brushless DC Powered Solar Irrigation Deep Well Pump
Brand: Taizhou Edwin Electric Co., Ltd.

High-Efficiency Brushless DC Motor – Provides smooth, quiet operation, high torque output, and longer lifespan.

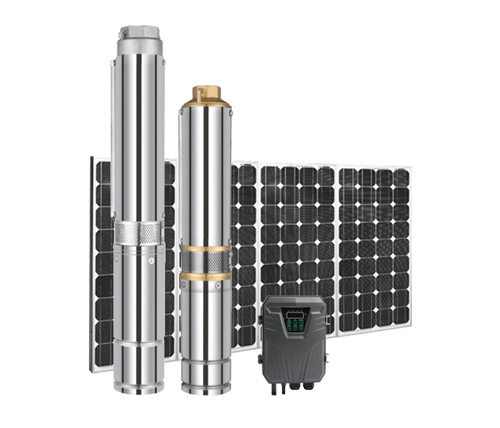

Solar-Powered Operation – Works directly with solar panels or hybrid systems, reducing energy costs and carbon emissions.

High Lift and Strong Flow Rate – Designed for deep wells and irrigation applications requiring stable water pressure.

Corrosion-Resistant Stainless Steel Structure – Ensures durability in harsh outdoor environments.

Smart MPPT Controller Compatibility – improves solar power utilization, protects the pump from overvoltage, dry run, and overheating.

Low Maintenance Design – No brushes or lubricating oil required, simplifying operation and extending service intervals.

Wide Voltage Range (24V / 48V / 72V) – Compatible with various solar configurations and battery backup systems.

Agricultural Irrigation Systems – Ideal for drip, sprinkler, and flood irrigation powered by solar energy.

Livestock and Poultry Farms – Delivers continuous water supply in off-grid ranching areas.

Rural and Remote Water Supply – Provides clean water for villages, schools, and households.

Solar Borehole and Deep Well Projects – Suitable for areas with limited electricity or unstable power supply.

Environmental and Government Water Projects – good for eco-friendly water management and renewable energy initiatives.

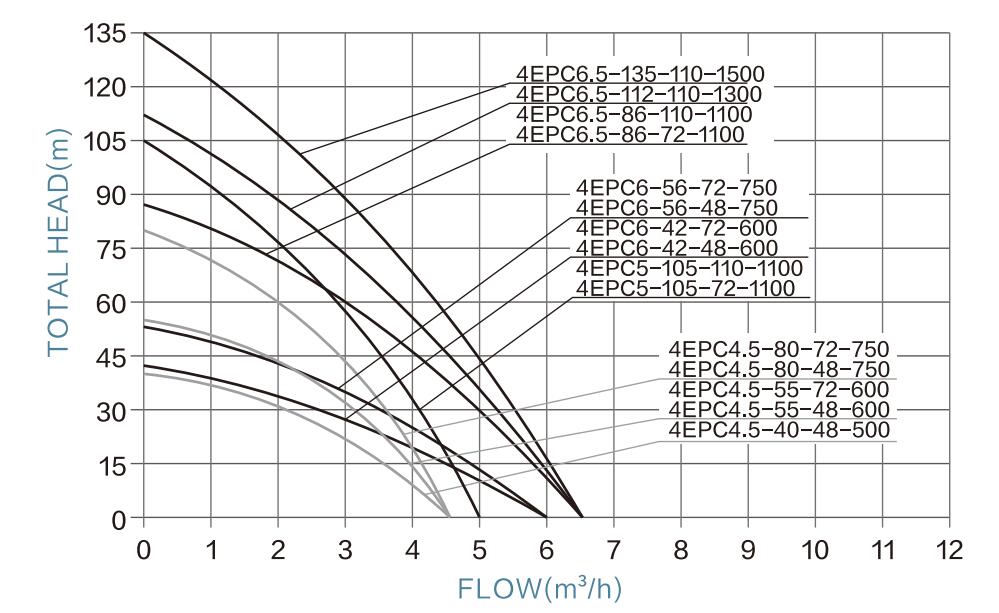

ITEM	Voltage	Optimum input voltage (DC)	Power	Max. Flow	Max. Head	Outlet	Cable	Solar panel - Open circuit voltage (VOC)	Solar panel - Power
4EPC4.5-40-48-500	48V	60V-90V	500W	4.5m³/h	40m	1.25"	2m	<110V	≥1.3*PUMP POWER
4EPC4.5-55-48-600	48V	60V-90V	600W	4.5m³/h	55m	1.25"	2m	<110V	≥1.3*PUMP POWER
4EPC4.5-55-72-600	72V	90V-120V	600W	4.5m³/h	55m	1.25"	2m	<170V	≥1.3*PUMP POWER
4EPC4.5-80-48-750	48V	60V-90V	750W	4.5m³/h	80m	1.25"	2m	<110V	≥1.3*PUMP POWER
4EPC4.5-80-72-750	72V	90V-120V	750W	4.5m³/h	80m	1.25"	2m	<170V	≥1.3*PUMP POWER
4EPC5-105-72-1100	72V	90V-120V	1100W	5m³/h	105m	1.25"	2m	<170V	≥1.3*PUMP POWER
4EPC5-105-110-1100	110V	110V-150V	1100W	5m³/h	105m	1.25"	2m	<220V	≥1.3*PUMP POWER
4EPC6-42-48-600	48V	60V-90V	600W	6m³/h	42m	1.25"	2m	<110V	≥1.3*PUMP POWER
4EPC6-42-72-600	72V	90V-120V	600W	6m³/h	42m	1.25"	2m	<170V	≥1.3*PUMP POWER
4EPC6-56-48-750	48V	60V-90V	750W	6m³/h	56m	1.25"	2m	<110V	≥1.3*PUMP POWER
4EPC6-56-72-750	72V	90V-120V	750W	6m³/h	56m	1.25"	2m	<170V	≥1.3*PUMP POWER
4EPC6.5-86-72-1100	72V	90V-120V	1100W	6.5m³/h	86m	1.25"	2m	<170V	≥1.3*PUMP POWER
4EPC6.5-86-110-1100	110V	110V-150V	1100W	6.5m³/h	86m	1.25"	2m	<220V	≥1.3*PUMP POWER
4EPC6.5-112-110-1300	110V	110V-150V	1300W	6.5m³/h	112m	1.25"	2m	<220V	≥1.3*PUMP POWER
4EPC6.5-135-110-1500	110V	110V-150V	1500W	6.5m³/h	135m	1.25"	2m	<220V	≥1.3*PUMP POWER

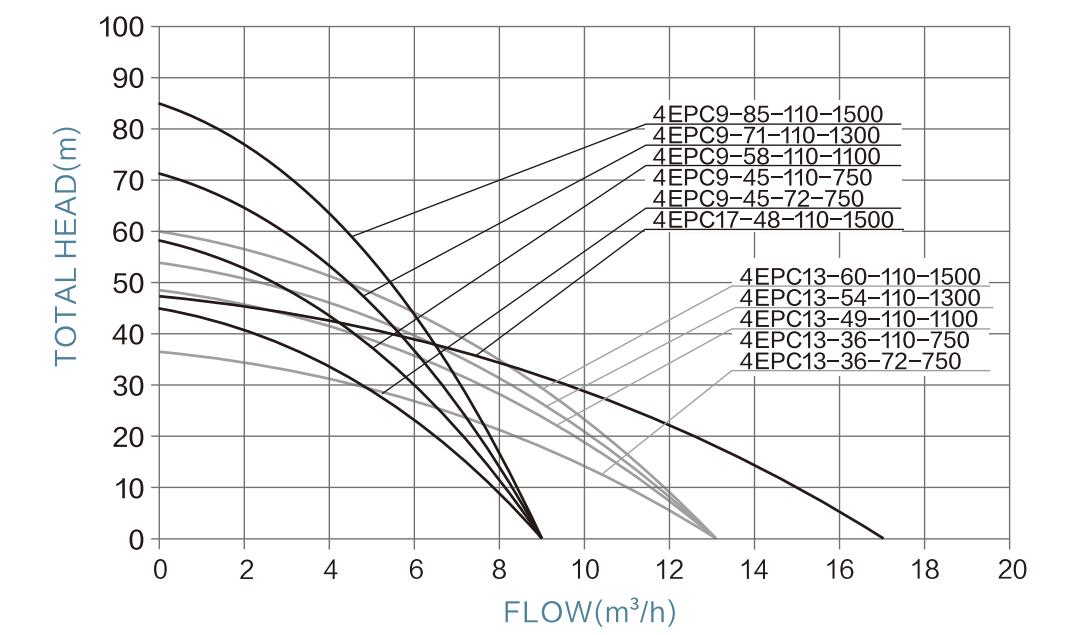

ITEM	Voltage	Optimum input voltage (DC)	Power	Max. Flow	Max. Head	Outlet	Cable	Solar panel - Open circuit voltage (VOC)	Solar panel - Power
4EPC9-45-72-750	72V	90V-120V	750W	9m³/h	45m	2"	2m	<170V	≥1.3*PUMP POWER
4EPC9-45-110-750	110V	110V-150V	750W	9m³/h	45m	2"	2m	<220V	≥1.3*PUMP POWER
4EPC9-58-110-1100	110V	110V-150V	1100W	9m³/h	58m	2"	2m	<220V	≥1.3*PUMP POWER
4EPC9-71-110-1300	110V	110V-150V	1300W	9m³/h	71m	2"	2m	<220V	≥1.3*PUMP POWER
4EPC9-85-110-1500	110V	110V-150V	1500W	9m³/h	85m	2"	2m	<220V	≥1.3*PUMP POWER
4EPC13-36-72-750	72V	90V-120V	750W	13m³/h	36m	2"	2m	<170V	≥1.3*PUMP POWER
4EPC13-36-110-750	110V	110V-150V	750W	13m³/h	36m	2"	2m	<220V	≥1.3*PUMP POWER
4EPC13-49-110-1100	110V	110V-150V	1100W	13m³/h	49m	2"	2m	<220V	≥1.3*PUMP POWER
4EPC13-54-110-1300	110V	110V-150V	1300W	13m³/h	54m	2"	2m	<220V	≥1.3*PUMP POWER
4EPC13-60-110-1500	110V	110V-150V	1500W	13m³/h	60m	2"	2m	<220V	≥1.3*PUMP POWER
4EPC17-48-110-1500	110V	110V-150V	1500W	17m³/h	48m	2"	2m	<220V	≥1.3*PUMP POWER
