The 4HVLR Wide Voltage Solar Deep Well Pump features a 4-inch diameter design with a wide-voltage brushless DC motor, enabling reliable operation under varying solar power conditions. Its copper water outlet and copper cylinder provide enhanced durability and corrosion resistance, while the lightweight plastic impeller reduces energy consumption and ensures smooth water flow. Designed for efficient deep well pumping, this solar pump is ideal for both domestic and industrial water management solutions.
Wide-Voltage Brushless DC Motor: Delivers stable performance and energy efficiency in solar or DC-powered systems.
Copper Outlet & Cylinder: Resistant to wear and corrosion for long-term reliability.
Plastic Impeller: Lightweight and efficient, optimized for smooth water flow and reduced energy use.
NSK Bearings: Provide low-friction operation, extending pump lifespan.
Compact 4-Inch Bore: Suitable for various deep well installations with moderate water flow requirements.
Durable and Low Maintenance: Built for long-term operation in challenging environments.
Solar water supply for small commercial facilities and workshops
Remote household or community water systems with variable power sources
Garden and landscape water management in rural or semi-urban areas
Industrial water transfer from deep wells for cleaning or processing needs
Off-grid water projects requiring energy-efficient and reliable pumping

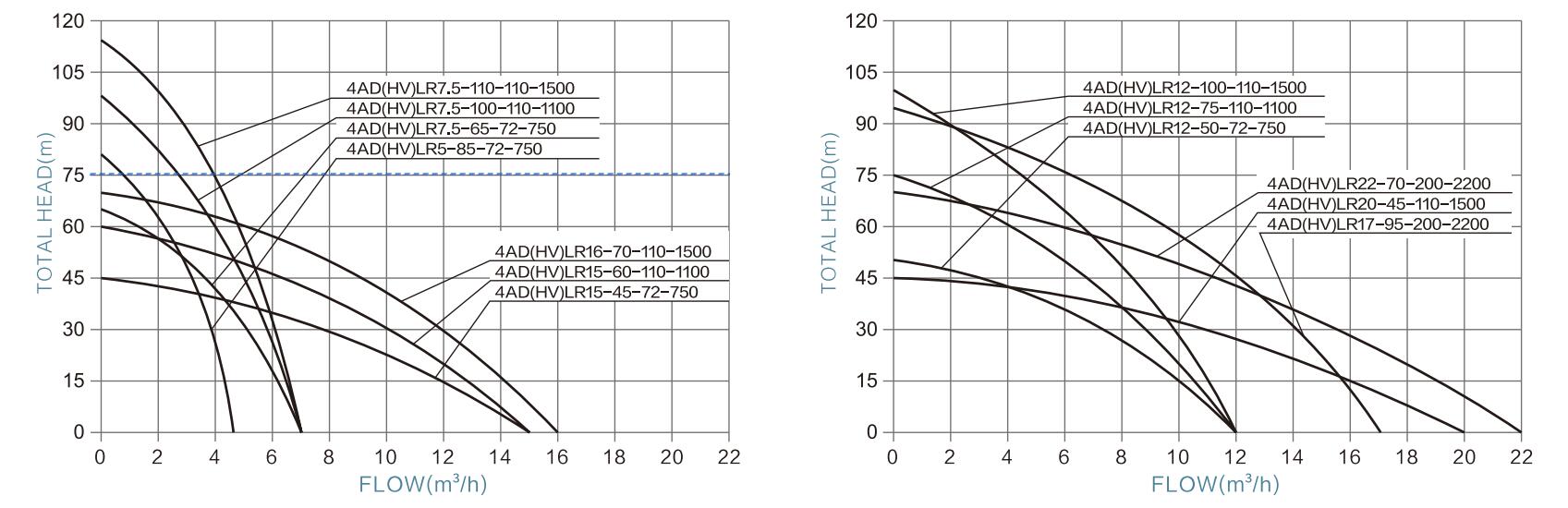

| ITEM | (AC) Voltage | Optimum input voltage (DC) | Power | Max. Flow | Max. Head | Outlet | Cable | Solar panel - Open circuit voltage (VOC) |
Solar panel - Power |
| 4ADLR5-85-110-750 | 85V-280V | 110V-350V | 750W | 5m³/h | 85m | 1.25" | 2m | <430V | ≥1.3*PUMP POWER |
| 4HVLR5-85-110-750 | / | 110V-350V | 750W | 5m³/h | 85m | 1.25" | 2m | <430V | ≥1.3*PUMP POWER |
| 4ADLR7.5-65-110-750 | 85V-280V | 110V-350V | 750W | 7.5m³/h | 65m | 2" | 2m | <430V | ≥1.3*PUMP POWER |
| 4HVLR7.5-65-110-750 | / | 110V-350V | 750W | 7.5m³/h | 65m | 2" | 2m | <430V | ≥1.3*PUMP POWER |
| 4ADLR7.5-100-110-1100 | 85V-280V | 110V-350V | 1100W | 7.5m³/h | 100m | 2" | 2m | <430V | ≥1.3*PUMP POWER |
| 4HVLR7.5-100-110-1100 | / | 110V-350V | 1100W | 7.5m³/h | 100m | 2" | 2m | <430V | ≥1.3*PUMP POWER |
| 4ADLR7.5-110-150-1500 | 85V-280V | 150V-350V | 1500W | 7.5m³/h | 110m | 2" | 2m | <430V | ≥1.3*PUMP POWER |
| 4HVLR7.5-110-150-1500 | / | 150V-350V | 1500W | 7.5m³/h | 110m | 2" | 2m | <430V | ≥1.3*PUMP POWER |
| 4ADLR12-50-110-750 | 85V-280V | 110V-350V | 750W | 12m³/h | 50m | 2" | 2m | <430V | ≥1.3*PUMP POWER |
| 4HVLR12-50-110-750 | / | 110V-350V | 750W | 12m³/h | 50m | 2" | 2m | <430V | ≥1.3*PUMP POWER |
| 4ADLR12-75-110-1100 | 85V-280V | 110V-350V | 1100W | 12m³/h | 75m | 2" | 2m | <430V | ≥1.3*PUMP POWER |
| 4HVLR12-75-110-1100 | / | 110V-350V | 1100W | 12m³/h | 75m | 2" | 2m | <430V | ≥1.3*PUMP POWER |
| 4ADLR12-100-150-1500 | 85V-280V | 150V-350V | 1500W | 12m³/h | 100m | 2" | 2m | <430V | ≥1.3*PUMP POWER |
| 4HVLR12-100-150-1500 | / | 150V-350V | 1500W | 12m³/h | 100m | 2" | 2m | <430V | ≥1.3*PUMP POWER |
| 4ADLR15-45-110-750 | 85V-280V | 110V-350V | 750W | 15m³/h | 45m | 2" | 2m | <430V | ≥1.3*PUMP POWER |
| 4HVLR15-45-110-750 | / | 110V-350V | 750W | 15m³/h | 45m | 2" | 2m | <430V | ≥1.3*PUMP POWER |
| 4ADLR15-60-110-1100 | 85V-280V | 110V-350V | 1100W | 15m³/h | 60m | 2" | 2m | <430V | ≥1.3*PUMP POWER |
| 4HVLR15-60-110-1100 | / | 110V-350V | 1100W | 15m³/h | 60m | 2" | 2m | <430V | ≥1.3*PUMP POWER |
| 4ADLR16-70-150-1500 | 85V-280V | 150V-350V | 1500W | 16m³/h | 70m | 2" | 2m | <430V | ≥1.3*PUMP POWER |
| 4HVLR16-70-150-1500 | / | 150V-350V | 1500W | 16m³/h | 70m | 2" | 2m | <430V | ≥1.3*PUMP POWER |
| 4ADLR17-95-200-2200 | 85V-280V | 200V-350V | 2200W | 17m³/h | 95m | 2" | 2m | <430V | ≥1.3*PUMP POWER |
| 4HVLR17-95-200-2200 | / | 200V-350V | 2200W | 17m³/h | 95m | 2" | 2m | <430V | ≥1.3*PUMP POWER |
| 4ADLR20-45-150-1500 | 85V-280V | 150V-350V | 1500W | 20m³/h | 45m | 2" | 2m | <430V | ≥1.3*PUMP POWER |
| 4HVLR20-45-150-1500 | / | 150V-350V | 1500W | 20m³/h | 45m | 2" | 2m | <430V | ≥1.3*PUMP POWER |
| 4ADLR22-70-200-2200 | 85V-280V | 200V-350V | 2200W | 22m³/h | 70m | 2" | 2m | <430V | ≥1.3*PUMP POWER |
| 4HVLR22-70-200-2200 | / | 200V-350V | 2200W | 22m³/h | 70m | 2" | 2m | <430V | ≥1.3*PUMP POWER |
