4HVPC Wide Voltage Solar-Powered Deep Well Pump with Plastic Impeller
View All Products
en
The 4HVPC Wide Voltage Solar-Powered Deep Well Pump features a 4-inch diameter design with a wide-voltage brushless DC motor, delivering reliable and efficient water pumping in solar-powered systems. Its lightweight plastic impeller reduces energy consumption while ensuring smooth water flow. Built for durability and consistent performance, this pump is ideal for domestic water supply, small-scale agricultural irrigation, and off-grid solar water projects.
Wide-Voltage Brushless DC Motor: Stable operation under variable solar power conditions for energy-efficient pumping.
Plastic Impeller: Corrosion-resistant and lightweight, ensuring smooth water flow and reduced energy usage.
Compact 4-Inch Bore: Suitable for small to medium deep well installations.
Durable Construction: Reliable performance for long-term operation in off-grid or rural environments.
Low Maintenance: Engineered for extended service life with minimal upkeep.
Applications :
Solar-powered domestic water supply in rural or off-grid areas
Small-scale agricultural irrigation for gardens, orchards, and farms
Off-grid water transfer and storage projects
Remote water pumping systems for livestock or small communities
Energy-efficient deep well pumping in residential and small commercial setups

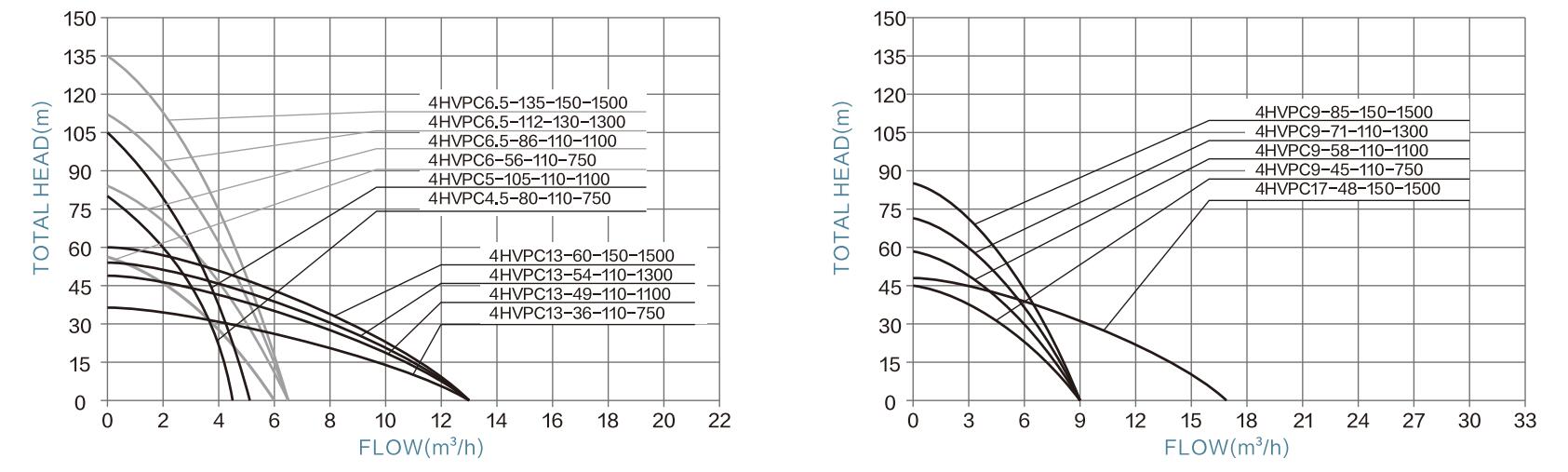

| ITEM | (AC) Voltage | Optimum input voltage (DC) | Power | Max. Flow | Max. Head | Outlet | Cable | Solar panel -Open circuit voltage (VOC) | Solar panel - Power |
| 4HVPC4.5-80-110-750 | / | 110-350V | 750W | 4.5m³/h | 80m | 1.25" | 2m | <450V | ≥1.3*PUMP POWER |
| 4HVPC5-105-110-1100 | / | 110-350V | 1100W | 5m³/h | 105m | 1.25" | 2m | <450V | ≥1.3*PUMP POWER |
| 4HVPC6-56-110-750 | / | 110-350V | 750W | 6m³/h | 56m | 1.25" | 2m | <450V | ≥1.3*PUMP POWER |
| 4HVPC6.5-86-110-1100 | / | 110-350V | 1100W | 6.5m³/h | 86m | 1.25" | 2m | <450V | ≥1.3*PUMP POWER |
| 4HVPC6.5-112-110-1300 | / | 110-350V | 1300W | 6.5m³/h | 112m | 1.25" | 2m | <450V | ≥1.3*PUMP POWER |
| 4HVPC6.5-135-150-1500 | / | 150-350V | 1500W | 6.5m³/h | 135m | 1.25" | 2m | <450V | ≥1.3*PUMP POWER |
| 4HVPC9-45-110-750 | / | 110-350V | 750W | 9m³/h | 45m | 2" | 2m | <450V | ≥1.3*PUMP POWER |
| 4HVPC9-58-110-1100 | / | 110-350V | 1100W | 9m³/h | 58m | 2" | 2m | <450V | ≥1.3*PUMP POWER |
| 4HVPC9-71-110-1300 | / | 110-350V | 1300W | 9m³/h | 71m | 2" | 2m | <450V | ≥1.3*PUMP POWER |
| 4HVPC9-85-150-1500 | / | 150-350V | 1500W | 9m³/h | 85m | 2" | 2m | <450V | ≥1.3*PUMP POWER |
| 4HVPC13-36-110-750 | / | 110-350V | 750W | 13m³/h | 36m | 2" | 2m | <450V | ≥1.3*PUMP POWER |
| 4HVPC13-49-110-1100 | / | 110-350V | 1100W | 13m³/h | 49m | 2" | 2m | <450V | ≥1.3*PUMP POWER |
| 4HVPC13-54-110-1300 | / | 110-350V | 1300W | 13m³/h | 54m | 2" | 2m | <450V | ≥1.3*PUMP POWER |
| 4HVPC13-60-150-1500 | / | 150-350V | 1500W | 13m³/h | 60m | 2" | 2m | <450V | ≥1.3*PUMP POWER |
| 4HVPC17-48-150-1500 | / | 150-350V | 1500W | 17m³/h | 48m | 2" | 2m | <450V | ≥1.3*PUMP POWER |
