The HVQD Series Solar Submersible Pump features a wide-voltage brushless DC motor and a robust aluminum pump body, delivering efficient and reliable solar-powered water pumping. Its closed impeller design ensures smooth and consistent flow while protecting against debris, making it ideal for clean water applications. Lightweight yet durable, this aluminum submersible pump is optimized for residential, agricultural, and small-scale solar irrigation systems.
Wide-Voltage Brushless Motor: Stable and energy-efficient operation under variable solar power conditions.
Aluminum Pump Body: Lightweight, corrosion-resistant, and durable for long-term submersible use.
Closed Impeller Design: Smooth water flow and protection against debris for clean water applications.
Compact & Easy Installation: Suitable for submersible installation in wells, tanks, or reservoirs.
Low Maintenance & Energy Efficient: Optimized for solar-powered environments with minimal upkeep.
Applications :
Solar-powered household water supply
Small-scale agricultural irrigation for gardens and orchards
Off-grid and remote water pumping projects
Residential and community clean water supply
Energy-efficient deep well and storage tank pumping

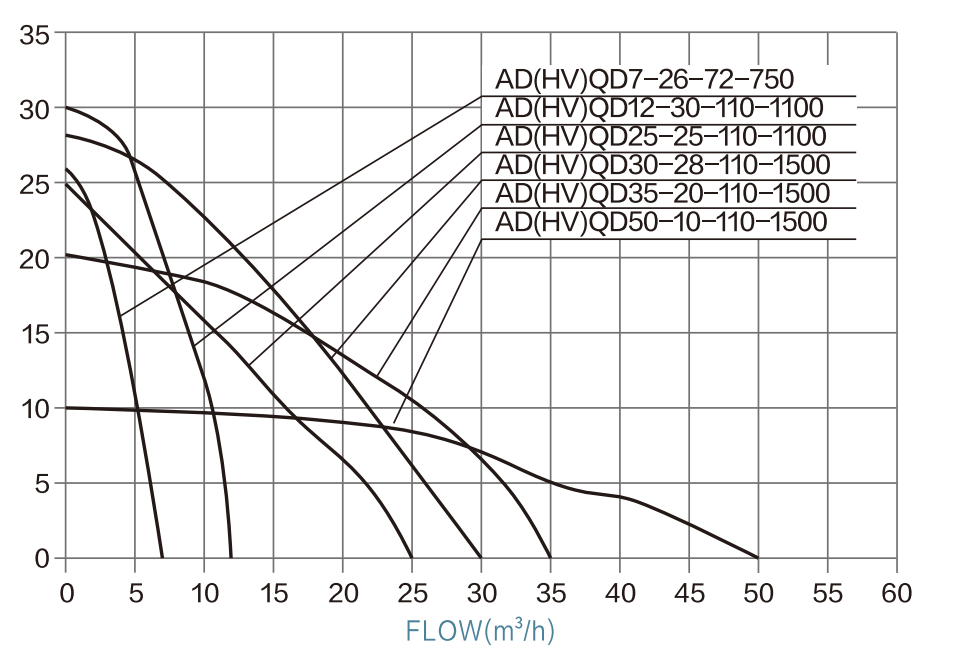

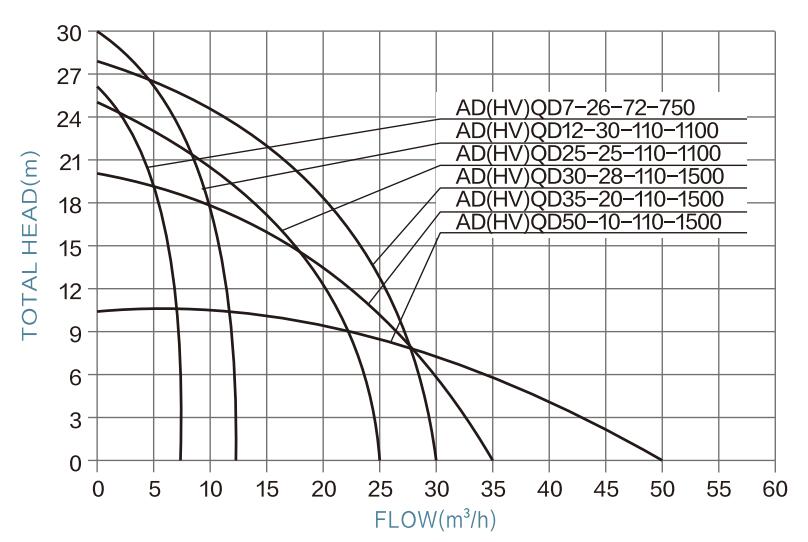

| ITEM | (AC) Voltage | Optimum input voltage (DC) | Power | Max. Flow | Max. Head | Outlet | Cable | Solar panel - Open circuit voltage(VOC) |
Solar panel - Power |
| HVQD7-26-72-750 | 85V-280V | 100V-350V | 750W | 7m³/h | 26m | 1" | 5m | <450V | ≥1.3*PUMP POWER |
| HVQD12-30-110-1100 | 85V-280V | 110V-350V | 1100W | 12m³/h | 30m | 1.5" | 5m | <450V | ≥1.3*PUMP POWER |
| HVQD25-25-110-1100 | 85V-280V | 110V-350V | 1100W | 25m³/h | 25m | 2" | 5m | <450V | ≥1.3*PUMP POWER |
| HVQD30-28-110-1500 | 85V-280V | 110V-350V | 1500W | 30m³/h | 28m | 2" | 5m | <450V | ≥1.3*PUMP POWER |
| HVQD35-20-110-1500 | 85V-280V | 110V-350V | 1500W | 35m³/h | 20m | 2.5" | 5m | <450V | ≥1.3*PUMP POWER |
| HVQD50-10-110-1500 | 85V-280V | 110V-350V | 1500W | 50m³/h | 10m | 3" | 5m | <450V | ≥1.3*PUMP POWER |
