The HVWQD Series Solar Sewage Pump features a wide-voltage brushless DC motor and a robust cast iron body, providing reliable and efficient solar-powered operation for wastewater and sewage applications. Its semi-open impeller design allows handling of water containing solids, reducing clogging while maintaining smooth flow. Built for durability and low maintenance, this pump is ideal for residential, agricultural, and small-scale municipal sewage and wastewater management projects.
Wide-Voltage Brushless Motor: Ensures stable, energy-efficient performance under variable solar or DC power conditions.
Cast Iron Pump Body: Durable and corrosion-resistant, suitable for challenging wastewater environments.
Semi-Open Impeller Design: Handles water with suspended solids, minimizing clogging and ensuring smooth flow.
Compact & Easy Installation: Designed for submersible installation in wells, ponds, or sewage tanks.
Low Maintenance & Long Service Life: Optimized for solar-powered operation with minimal upkeep.
Applications :
Solar-powered sewage and wastewater pumping for residential areas
Agricultural drainage and livestock wastewater management
Small-scale municipal or community sewage systems
Off-grid or remote water recycling and treatment projects
Energy-efficient solar sewage pumping for farms, gardens, and rural communities

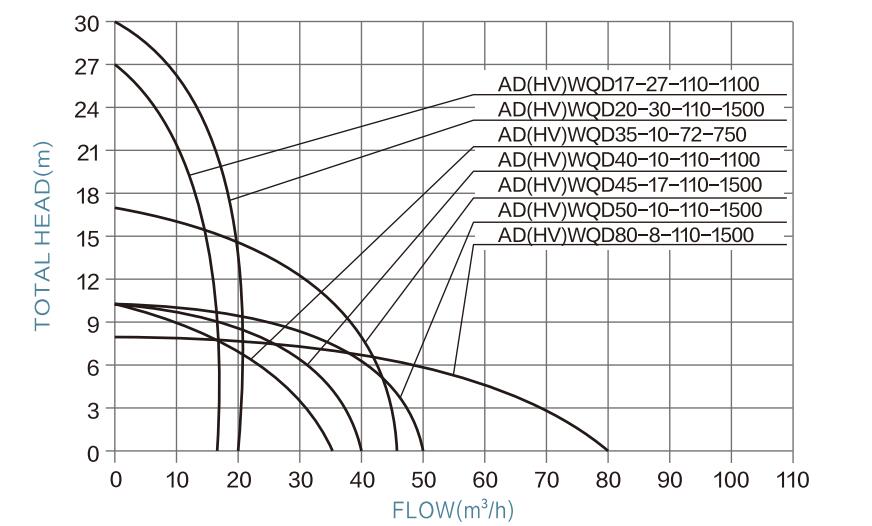

| ITEM | (AC) Voltage | Optimum input voltage (DC) | Power | Max. Flow | Max. Head | Outlet | Cable | Solar panel - Open circuit voltage(VOC) |
Solar panel - Power |
| HVWQD17-27-110-1100 | 85V-280V | 110V-350V | 1100W | 17m³/h | 27m | 2" | 5m | <450V | ≥1.3*PUMP POWER |
| HVWQD20-30-110-1500 | 85V-280V | 110V-350V | 1500W | 20m³/h | 30m | 2" | 5m | <450V | ≥1.3*PUMP POWER |
| HVWQD35-10-72-750 | 85V-280V | 100V-350V | 750W | 35m³/h | 10m | 3" | 5m | <450V | ≥1.3*PUMP POWER |
| HVWQD40-10-110-1100 | 85V-280V | 110V-350V | 1100W | 40m³/h | 10m | 3" | 5m | <450V | ≥1.3*PUMP POWER |
| HVWQD45-17-110-1500 | 85V-280V | 110V-350V | 1500W | 45m³/h | 17m | 3" | 5m | <450V | ≥1.3*PUMP POWER |
| HVWQD50-10-110-1500 | 85V-280V | 110V-350V | 1500W | 50m³/h | 10m | 3" | 5m | <450V | ≥1.3*PUMP POWER |
| HVWQD80-8-110-1500 | 85V-280V | 110V-350V | 1500W | 80m³/h | 8m | 4" | 5m | <450V | ≥1.3*PUMP POWER |
