Hot And Cold Circulating Pump
for Hot Clean Water Heater
Inlet/Outlet: 1 1/2" x 1 1/2"
Body length: 180mm
This pump is engineered to deliver exceptional performance with a flow rate of up to 5.4m³/h and a head of up to 8 meters, making it ideal for a variety of heating applications.
Heating systems in residential and commercial buildings
Industrial equipment cooling
Solar water heating systems
Boiler circulation systems
Flow Rate: Up to 5.4 m³/h
Head: Up to 8 meters
Pressure: Up to 10 bar
Ambient Temperature: 0℃~40℃
Ambient Humidity: 95%
Liquid Temperature: -10℃~110℃
Motor: Copper-wound with thermal protection
Shaft Material: Ceramic
Bearing Material: Ceramic
Impeller Material: Polypropylene
Connection: Flange mount
Voltage and Frequency: Customizable (50Hz or 60Hz)

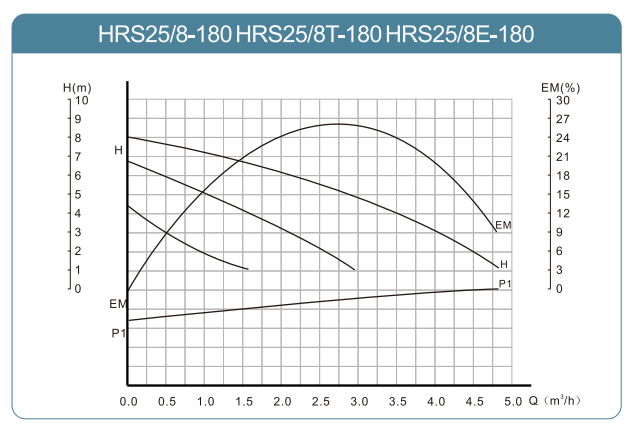

Performance Curves :
Technical Data :
| Max.Flow | Max.Head | Voltage | Material of pump body | Dimension(mm) | Weight | |||||||
| (m³/h) | (m) | 220V/ 50Hz | 220V/ 60Hz | 127V/ 60Hz | Cast Iron | Brass | Stainless steel | L | B | H | G | (Kg) |
| 5.4/3.6/2 | 8/7/5 | ★ | ★ | ★ | ★ | ★ | 180 | 127 | 159 | 11/2" | 3.4 | |
| 3.4 | ||||||||||||
| 3.4 | ||||||||||||
Installation Dimension :
