1、Low noise : With its advanced technology and superior engineering, this pump ensures minimal noise levels during operation, making it an ideal choice for environments where noise reduction is a priority.
2、High power : Its high-power motor ensures optimal performance, allowing for efficient and consistent pumping operations.
3、Brass impeller : The brass impeller enhances the pump's efficiency, allowing for smooth and efficient fluid transfer.
4、End-suction design : The Dk Series boasts an end suction centrifugal pump configuration, which allows for easy installation and maintenance.
5、Horizontal pump : Its compact design and versatile mounting options make it suitable for both horizontal and vertical installations, providing flexibility to meet specific project requirements.
|

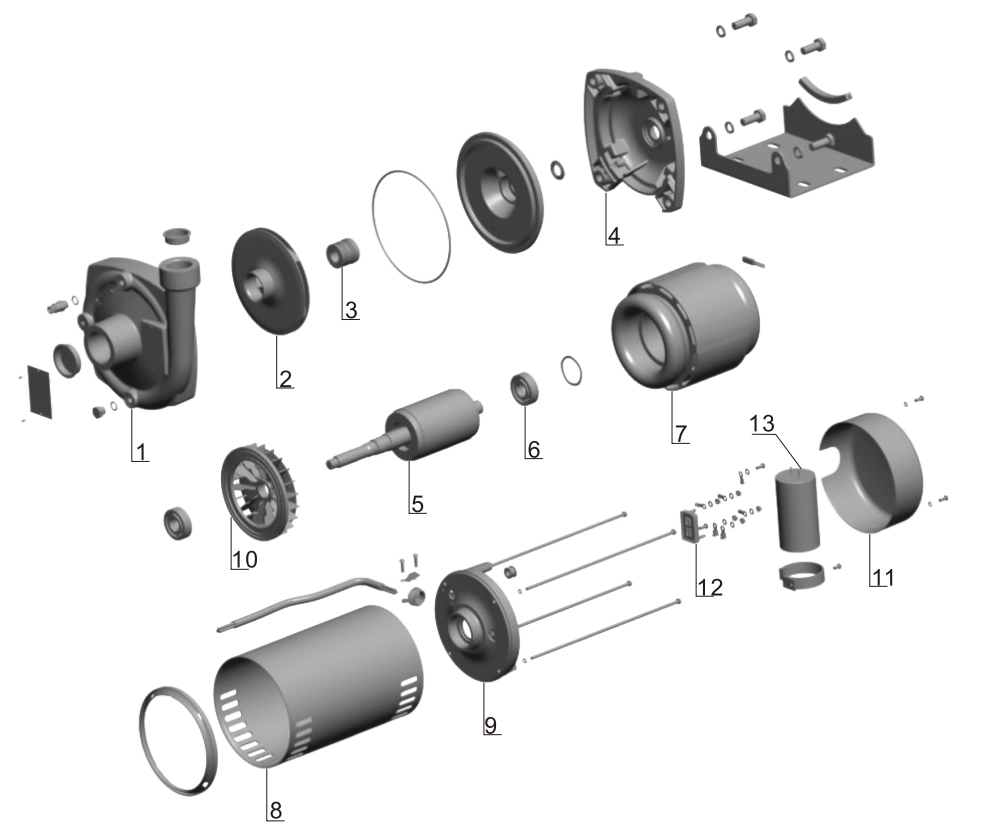

Materials Table |
||
|
NO. |
Part |
Material |
|
1 |
Pump Body |
HT200 |
|
2 |
Impeller |
Brass |
|
3 |
Mechanical Seal |
Carbon/Ceramic |
|
4 |
Support |
HT200 |
|
5 |
Shaft And Rotor |
|
|
6 |
Ball Bearing |
|
|
7 |
Stator | |
|
8 |
Motor Case |
Cast iron |
|
9 |
Motor Cover |
Aluminum |
|
10 |
Fan |
PP |
|
11 |
Fan Cover |
|
|
12 |
Terminal Board |
PC |
|
13 |
Capacitor |
|
| Model | Power | Inlet x Outlet | Max. Flow | Max. Head | Max. Suction | |
| KW | HP | (L/min) | (m) | (m) | ||
| HCT-07 | 0.55 | 0.75 | 1.25"x1" | 140 | 25 | 8 |
| HCT-10 | 0.75 | 1.0 | 1.25"x1" | 165 | 27 | 8 |
| HCT-15 | 1.10 |
1.50 | 1.25"x1" | 170 | 28 | 8 |
| HCT-20 | 1.50 | 2.0 | 1.25"x1" |
180 | 35 | 8 |
