SS Pump Body and Semi-open Impeller
Sea Water and Sewage
End Suction Horizontal Centrifugal Pump
For Light Chemical Industrial
ET Non-clogging self priming sewage pump is our latest developed product,and is suitable for the treatment project of municipal sewage and industrial sewage as well as stage treatment and concentrated treatment system of various sewages. lt's known as “King of Self priming Sewage Pump", and the most ideal new-generation sewage product.
Stable performance,reliable operation;
The motors clockwise rotation from drive;
The pump shall be installed on the pedestal. axial suction and radial discharge;
Back-pull-out construction: Convenient for maintenance and troubleshooting. Daily maintenance can be performed rapidly by common head tools, saving time and labor; The removable cover plate with handle andousher bolt can provides access to the pump interior without disconnecting piping easily, Cloas can beremoved and the pump can be returned to service in minutes.
Semi-open impeller structure and non-clogging design: Strong passing capacity.
Convenient usage: The pump can be mounted high and dry at floor level, with only the suction line down inthe liquid(the pump shall be filled with water for first start).
Applications :
Non flammable and non-explosive liquid,
Rain waterand common sewage;
Municipal drainage project, construction site, drainage station of people's air defense system;
Industrial sewage of light Industry, paper mil, textile, food processing plant, chemical industry, electricutility.deep mines, etc;
Sewage dischargein theresidential area:
Sewage and deposit of water purifying system;
Tanning industry, sewage of slaughter house, fish breeding in the river and pond.
Wine and sugarindustry;
Sewage discharge not having strong corrosiveness but seriously polluted.
Operating Conditions :
Liquid temperature: 0℃-40℃, medium density<1.2x 103kg/m3,PH5-9
Volume ratio of solids in the medium≤2%;
Diameter of maximum grain free pass: ET-2 : 44mm; ET-3 : 63mm; ET4-8 : 76mm
Ambient temperature:<40°C:
Altitude: Max. 1 000m;
CE Cerificate :
|
NO |
Part Name |
Material |
|
1 |
Suction Inlet |
HT250 |
|
2 |
Flap Valve |
NBR+Carbon stee |
|
3 |
Infusion cover |
HT250 |
|
4 |
Discharge Outlet |
HT250 |
|
5 |
End Cover |
HT250 |
|
6 |
Wear Plate |
ASTM 1045 |
|
7 |
Volute |
HT250 |
|
8 |
Impeller |
QT500/SS304/SS316 |
|
9 |
Impeller Cover |
HT250 |
|
10 |
Mechanical Seal |
TC/TC/iton |
|
11 |
O-Ring |
NBR |
|
12 |
Shaft |
SS420 |
|
13 |
Bearing Body |
HT250 |
|
14 |
Bearing Cover |
HT200 |
|

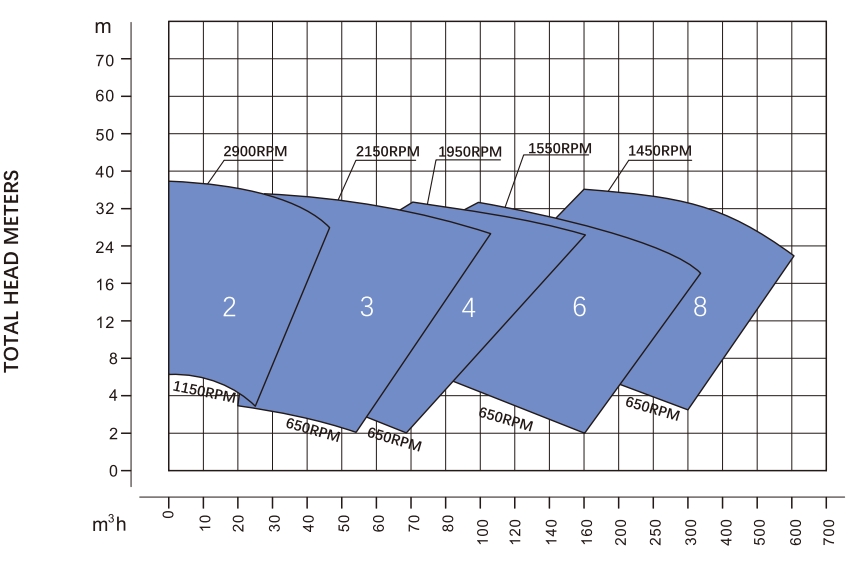

Model |
Speed (rpm) |
Max.Flow (m³/h) |
Max.Head (m) |
Npsh (m) |
Power (HP) |
Max. Solids (mm) |
|
ET-2 |
1150-2900 |
46 |
35 |
7.3-7.6 |
1-10 |
44.45 |
|
ET-3 |
650-2150 |
110 |
35 |
1.5-7.6 |
1-20 |
63.5 |
|
ET-4 |
650-1950 |
160 |
36 |
1.5-7.6 |
1-30 |
76.2 |
|
ET-6 |
650-1550 |
350 |
32 |
2.4-7.6 |
2-40 |
76.2 |
|
ET-8 |
650-1450 |
600 |
36.5 |
2.7-7 |
7.5-75 |
76.2 |
