the HGZ15/35EA-A series high-efficiency WiFi water-cooled intelligent permanent magnet VFD booster pump is an advanced and reliable water supply solution for residential, commercial, garden irrigation and vegetable greenhouse applications. Its advanced functions, including temperature control constant pressure automatic function, memory function, stall protection function, over-under voltage protection function, temperature abnormality reminder, waterless operation protection, water leakage protection, GPS function background operation can be remotely controlled according to the mobile phone APP network, etc., making it a versatile and efficient choice to meet various water supply needs.
Permanent magnet variable frequency: The pump adopts a high-efficiency design, using permanent magnet motor and variable frequency drive (VFD) technology to optimize energy consumption and reduce operating costs.
Shielded structure: Different from traditional fan cooling, the shielded structure can easily achieve low noise below 45db and avoid water pump leakage problems.
Temperature control start and stop: The temperature control function is used as a circulation mode, and it can automatically start and stop according to the set temperature.
Intelligent memory: The pump can accurately identify your usage habits and record them in the program. The next time you use it, the pump can run according to your usage habits, which can greatly reduce energy consumption and conform to the concept of environmental protection.
Water-cooled design: The pump adopts a water-cooled motor design, which helps to dissipate heat more effectively. The high external ambient temperature does not affect the use, ensuring optimal performance and extending the service life of the pump.
Intelligent dual control: The pump is equipped with intelligent flow and pressure control functions, which can accurately adjust the pressure level, flow and other parameters to meet the continuous water pressure and water flow.
Cold and hot water: The pump can use cold water and hot water at the same time, integrating pressurization and circulation.
Multiple protections: Protection functions: locked rotor protection, undervoltage protection, abnormal temperature reminder, waterless operation protection, water leakage protection
SENSATA sensors and flow switches: It ensures high-precision testing, accurating and reliable, intelligent and stable
Working conditions :
Liquid Temperature: 2-95°C.
Ambient Temperature: 2-40℃
Maximum System pressure: 10bar/1Mpa
Maximum Inlet pressure: 3bar/0.3Mpa
Maximum Head: 45m
IP class: X4D(Outdoor installation)
Pump liquid: Clean water
|

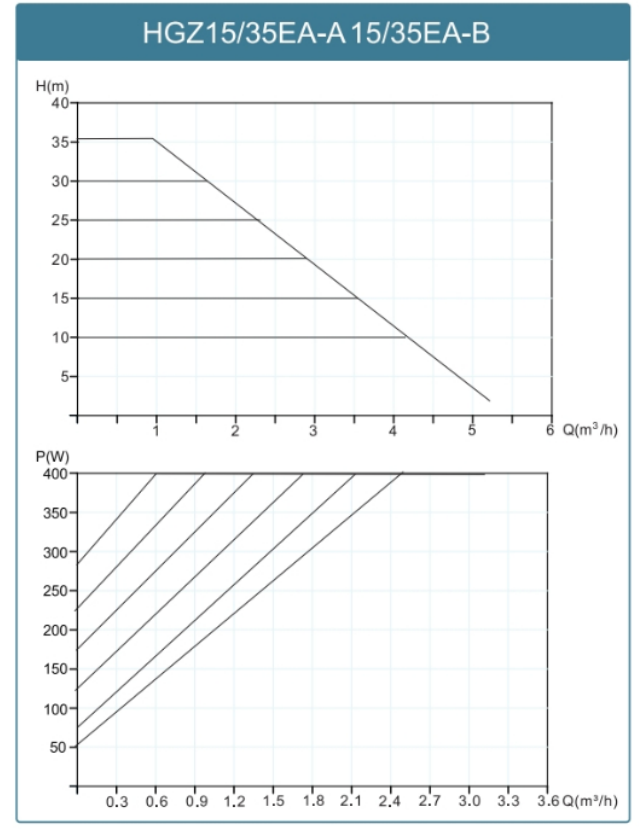

Model |
Connection size（Inch） |
Power |
Power (HP) |
Rated flow |
Rated head |
Max.head |
|
HGZ15/35EA-A |
1” |
400 |
0.5 |
2.2 |
25 |
40 |
