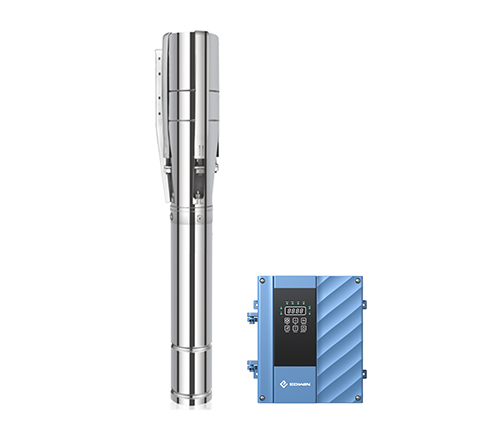

The 4ADSCW Brushless AC/DC Water-Filled Solar Deep Well Pump features an advanced hybrid brushless water-filled motor, ensuring stable operation on solar DC or mains AC power. It delivers reliable pumping even in low-light or challenging conditions. Equipped with a stainless steel cylinder and impeller, the pump provides outstanding corrosion resistance and maintains consistent efficiency during continuous operation, extending overall lifespan.
AC/DC Hybrid Brushless Motor: Ensures reliable water flow under variable solar or mains power conditions.
Stainless Steel Cylinder and Impeller: Corrosion-resistant design for long-term durability in deep well environments.
Water-Filled Heat Dissipation: Enhances efficiency and reduces energy consumption for extended pumping operations.
NSK Bearings: Smooth operation with low friction, minimal maintenance, and quiet performance.
4-Inch Bore Design: Suitable for a wide range of deep well applications including agricultural irrigation and rural water supply.
High Efficiency and Durability: Combines energy efficiency, stability, and longevity for sustainable deep well pumping solutions.
Solar deep well irrigation for farmlands, orchards, and greenhouses
Domestic and household water supply in rural or remote areas
Pasture and livestock water supply
Off-grid and small-scale community water systems
Clean water access from deep wells in challenging environments

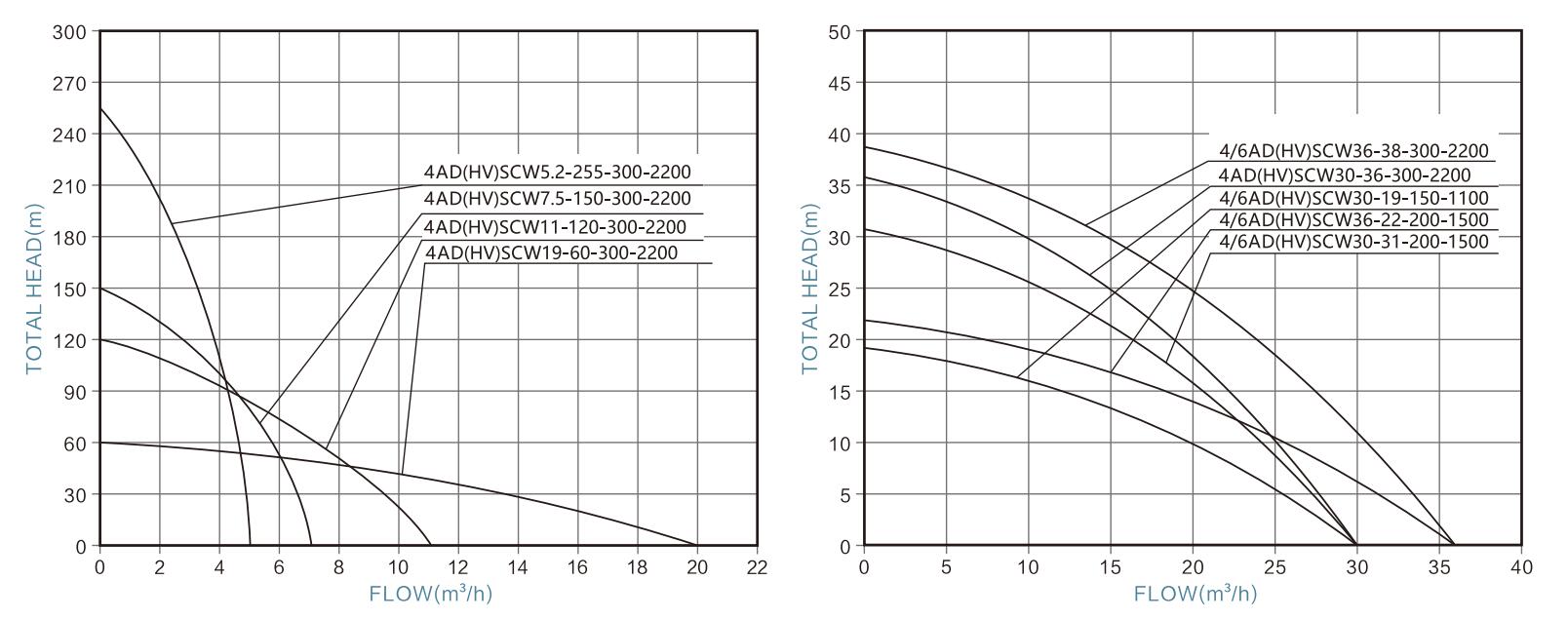

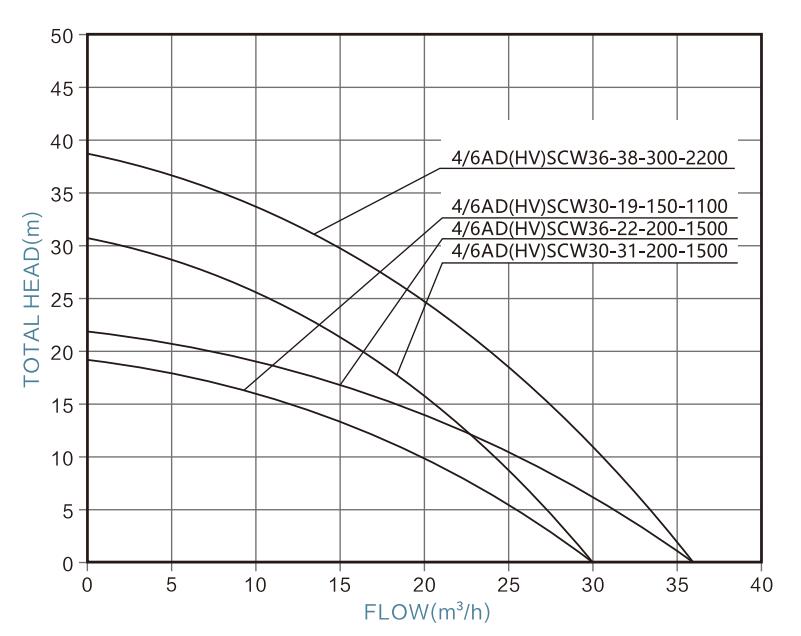

| ITEM | (AC) Voltage | (DC) Voltage | Power | Max. Flow | Max. Head | Outlet | Cable | Solar panel - Open circuit voltage (VOC) |
Solar panel - Power |
| 4/6ADSCW30-19-150-1100 | 85V-280V | 80V-430V | 1100W | 30m³/h | 19m | 3" | 2m | <430V | ≥1.3*PUMP POWER |
| 4/6ADSCW36-22-200-1500 | 85V-280V | 80V-430V | 1500W | 36m³/h | 22m | 3" | 2m | <430V | ≥1.3*PUMP POWER |
| 4/6ADSCW30-31-200-1500 | 85V-280V | 80V-430V | 1500W | 30m³/h | 31m | 3" | 2m | <430V | ≥1.3*PUMP POWER |
| 4/6ADSCW36-38-300-2200 | 85V-280V | 80V-430V | 2200W | 36m³/h | 38m | 3" | 2m | <430V | ≥1.3*PUMP POWER |
