AC/DC Brushless Water-Filled Motor: Provides efficient, maintenance-free operation while supporting both solar DC and AC electricity.

Water-Cooled Structure: Reduces heat and prevents leaks for stable long-term performance.

Corrosion-Resistant Components: Core parts made of environmentally friendly, oil-free 304 stainless steel with high durability.

Japanese NSK Bearings: Exceptional wear resistance and extended service life for continuous operation.

Enhanced Rotor Shaft & Thrust Bearing: Ceramic-coated rotor shaft improves wear resistance, and thrust bearing ensures stable support.

Intelligent Controller: Built-in automatic start/stop, soft start, AC/DC switching, and MPPT solar mode for efficiency exceeding 99%.

Rural drinking water supply

Household and community water systems

Small- to medium-sized agricultural irrigation

Off-grid water pumping projects

Solar-powered water transfer for storage tanks and reservoirs

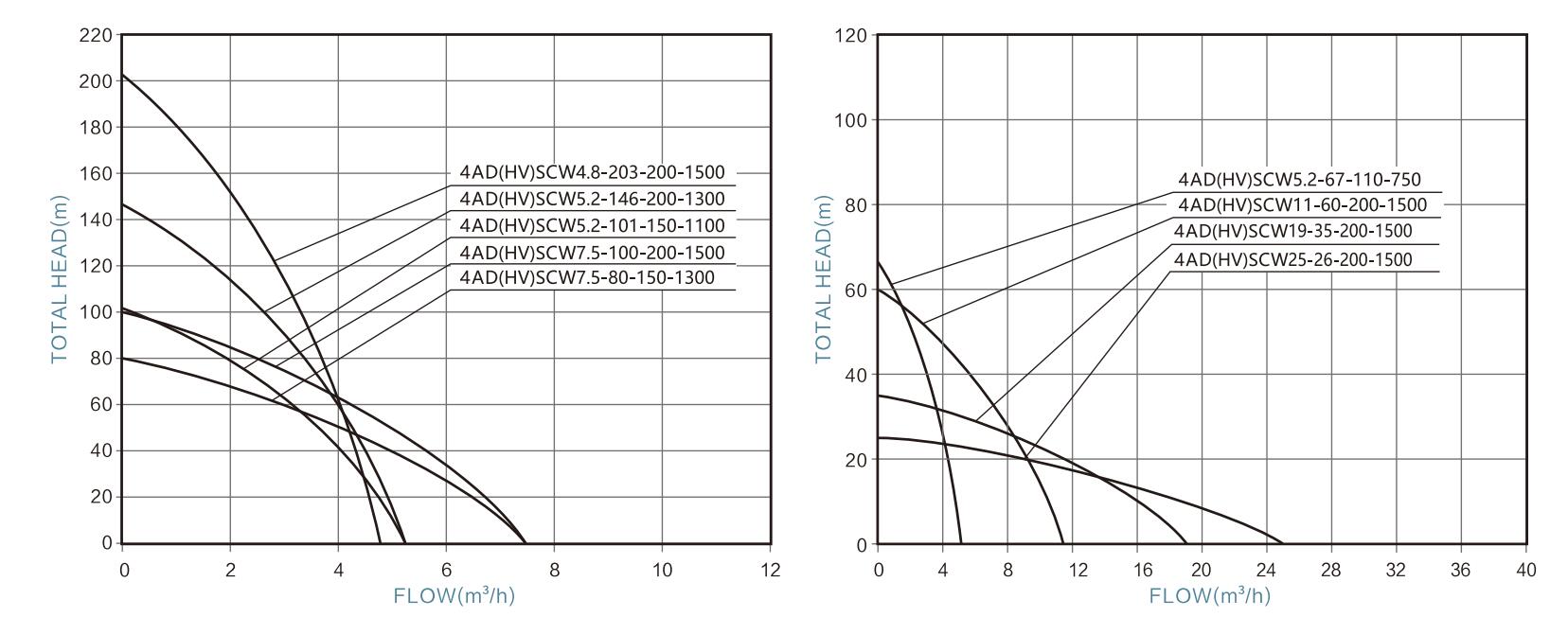

ITEM	(AC) Voltage	(DC) Voltage	Power	Max. Flow	Max. Head	Outlet	Cable	Solar panel - Open circuit voltage (VOC)	Solar panel - Power
4ADSCW5.2-67-110-750	85V-280V	80V-430V	750W	5.2m³/h	67m	1.25"	2m	<430V	≥1.3*PUMP POWER
4ADSCW4.8-203-200-1500	85V-280V	80V-430V	1500W	4.8m³/h	203m	1.25"	2m	<430V	≥1.3*PUMP POWER
4ADSCW5.2-101-150-1100	85V-280V	80V-430V	1100W	5.2m³/h	101m	1.25"	2m	<430V	≥1.3*PUMP POWER
4ADSCW5.2-146-200-1300	85V-280V	80V-430V	1300W	5.2m³/h	146m	1.25"	2m	<430V	≥1.3*PUMP POWER
4ADSCW7.5-80-150-1300	85V-280V	80V-430V	1300W	7.5m³/h	80m	1.25"	2m	<430V	≥1.3*PUMP POWER
4ADSCW7.5-100-200-1500	85V-280V	80V-430V	1500W	7.5m³/h	100m	1.25"	2m	<430V	≥1.3*PUMP POWER
4ADSCW11-60-200-1500	85V-280V	80V-430V	1500W	11m³/h	60m	2"	2m	<430V	≥1.3*PUMP POWER
4ADSCW19-35-200-1500	85V-280V	80V-430V	1500W	19m³/h	35m	2"	2m	<430V	≥1.3*PUMP POWER
4ADSCW25-26-200-1500	85V-280V	80V-430V	1500W	25m³/h	26m	2"	2m	<430V	≥1.3*PUMP POWER

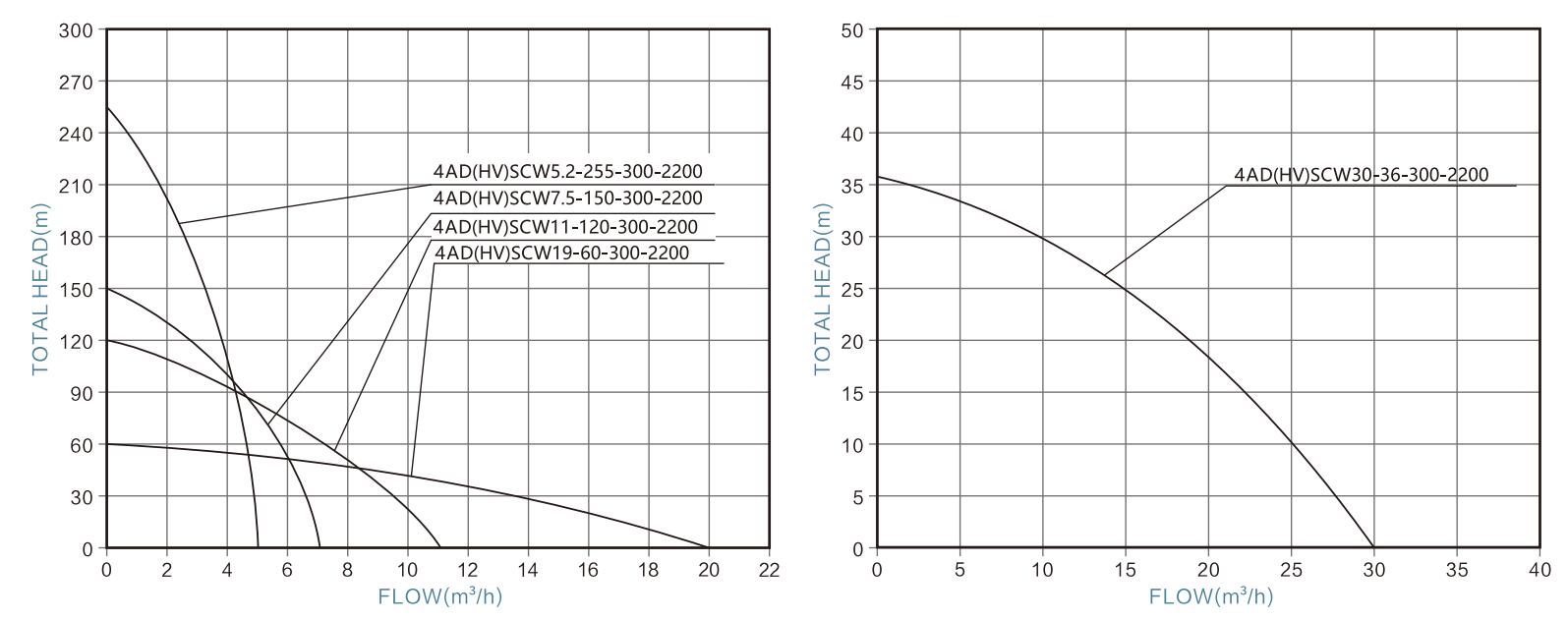

ITEM	(AC) Voltage	(DC) Voltage	Power	Max. Flow	Max. Head	Outlet	Cable	Solar panel - Open circuit voltage(VOC)	Solar panel - Power
4HVSCW5.2-255-300-2200	85V-280V	80V-430V	2200W	5.2m³/h	255m	1.25"	2m	<430V	≥1.3*PUMP POWER
4HVSCW7.5-150-300-2200	85V-280V	80V-430V	2200W	7.5m³/h	150m	1.25"	2m	<430V	≥1.3*PUMP POWER
4HVSCW11-120-300-2200	85V-280V	80V-430V	2200W	11m³/h	120m	2"	2m	<430V	≥1.3*PUMP POWER
4HVSCW19-60-300-2200	85V-280V	80V-430V	2200W	19m³/h	60m	2"	2m	<430V	≥1.3*PUMP POWER
4HVSCW30-36-300-2200	85V-280V	80V-430V	2200W	30m³/h	36m	2"	2m	<430V	≥1.3*PUMP POWER
