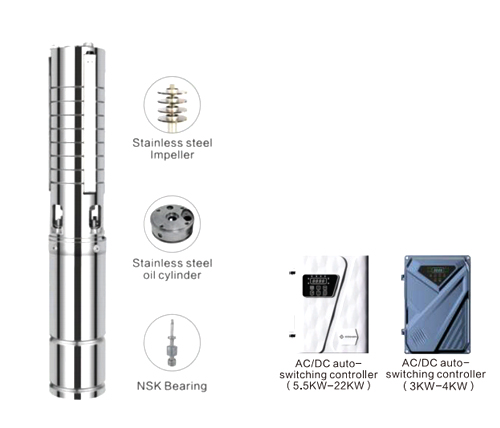

The 4ADSC AC/DC Brushless Motor Stainless Steel Impeller Deep Well Pump is a high-performance water pumping solution engineered for reliable operation under deep well and solar-powered conditions. Designed with an AC/DC hybrid brushless motor, it ensures continuous functionality — powered by solar panels during the day and seamlessly switching to AC electricity when sunlight is limited. Its stainless steel impeller provides exceptional durability, corrosion resistance, and high hydraulic efficiency, making it ideal for long-term water supply systems in demanding environments.
AC/DC Hybrid Operation – Supports both solar and mains power, allowing flexible installation and 24-hour continuous operation.
Brushless Motor Efficiency – Low noise, low maintenance, and long service life, ensuring stable water output even at deep levels.
Stainless Steel Impeller – Provides outstanding strength, wear resistance, and consistent performance under high water pressure.
Corrosion-Resistant Construction – Suitable for underground, agricultural, and outdoor use in varying water conditions.
Intelligent Control Compatibility – Works with MPPT solar controllers for automatic voltage regulation and motor protection.
Energy-Saving Design – Efficient power utilization minimizes energy consumption while improving water delivery.
NSK Bearings & Sealed Housing – Ensures long-term smooth rotation and protection from sand or water ingress.
Agricultural Irrigation Systems – Supplies reliable water for farms, orchards, and greenhouses.
Domestic and Rural Water Supply – Ideal for wells, boreholes, and off-grid communities.
Livestock and Pasture Watering – Ensures steady flow for livestock farms and remote ranches.
Industrial & Construction Sites – Suitable for deep well dewatering, water transfer, and utility pumping.
Hybrid Solar Systems – Efficient solution for users needing flexible power between solar and grid sources.

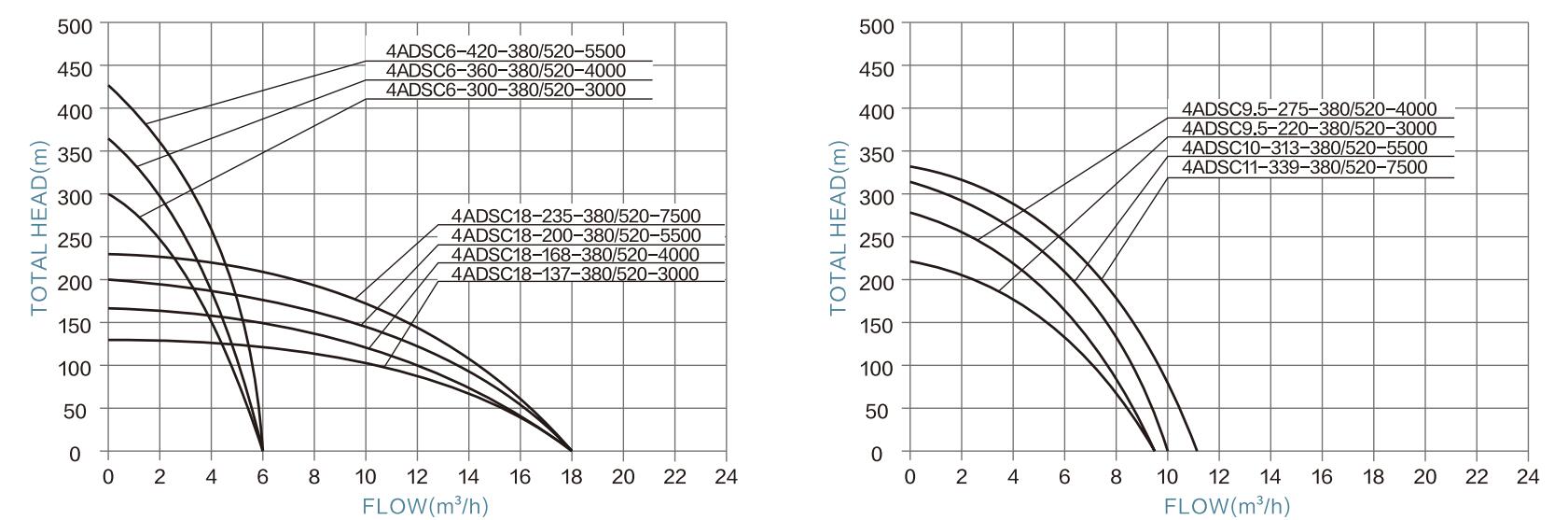

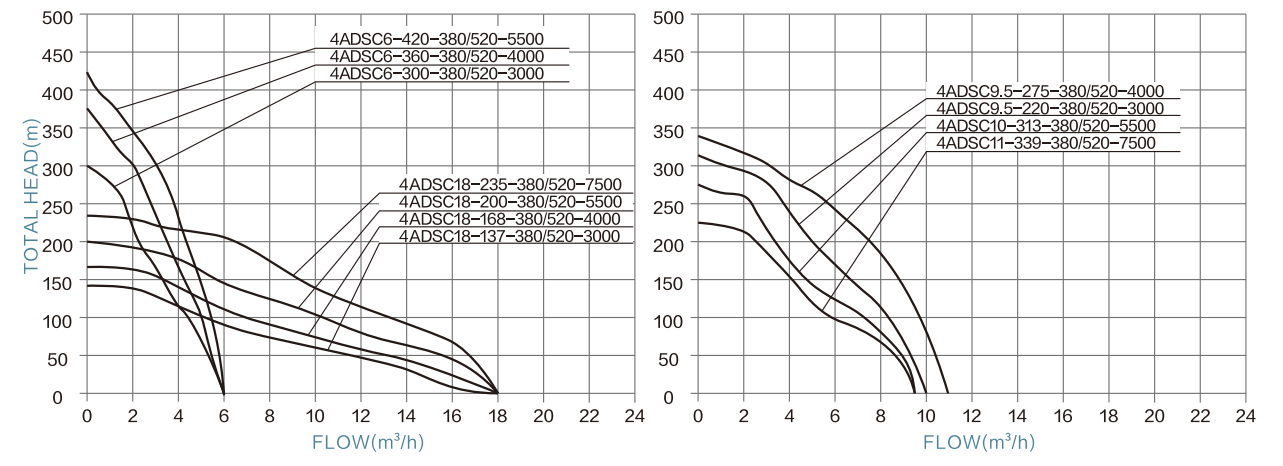

| ITEM | Voltage | Optimum input voltage (DC) | Power | Max. Flow | Max. Head | Outlet | Cable | Solar panel - Open circuit voltage (VOC) |
Solar panel - Power |
| 4ADSC6-300-380/520-3000 | AC380/DC520V | 520V-650V | 3000W | 6m³/h | 300m | 1.25" | 2m | <780V | ≥1.3*PUMP POWER |
| 4ADSC6-360-380/520-4000 | AC380/DC520V | 520V-650V | 4000W | 6m³/h | 360m | 1.25" | 2m | <780V | ≥1.3*PUMP POWER |
| 4ADSC6-420-380/520-5500 | AC380/DC520V | 520V-650V | 5500W | 6m³/h | 420m | 1.25" | 2m | <780V | ≥1.3*PUMP POWER |
| 4ADSC9.5-220-380/520-3000 | AC380/DC520V | 520V-650V | 3000W | 9.5m³/h | 220m | 2" | 2m | <780V | ≥1.3*PUMP POWER |
| 4ADSC9.5-275-380/520-4000 | AC380/DC520V | 520V-650V | 4000W | 9.5m³/h | 275m | 2" | 2m | <780V | ≥1.3*PUMP POWER |
| 4ADSC10-313-380/520-5500 | AC380/DC520V | 520V-650V | 5500W | 10m³/h | 313m | 2" | 2m | <780V | ≥1.3*PUMP POWER |
| 4ADSC11-339-380/520-7500 | AC380/DC520V | 520V-650V | 7500W | 11m³/h | 339m | 2" | 2m | <780V | ≥1.3*PUMP POWER |
| 4ADSC18-137-380/520-3000 | AC380/DC520V | 520V-650V | 3000W | 18m³/h | 137m | 2" | 2m | <780V | ≥1.3*PUMP POWER |
| 4ADSC18-168-380/520-4000 | AC380/DC520V | 520V-650V | 4000W | 18m³/h | 168m | 2" | 2m | <780V | ≥1.3*PUMP POWER |
| 4ADSC18-200-380/520-5500 | AC380/DC520V | 520V-650V | 5500W | 18m³/h | 200m | 2" | 2m | <780V | ≥1.3*PUMP POWER |
| 4ADSC18-235-380/520-7500 | AC380/DC520V | 520V-650V | 7500W | 18m³/h | 235m | 2" | 2m | <780V | ≥1.3*PUMP POWER |

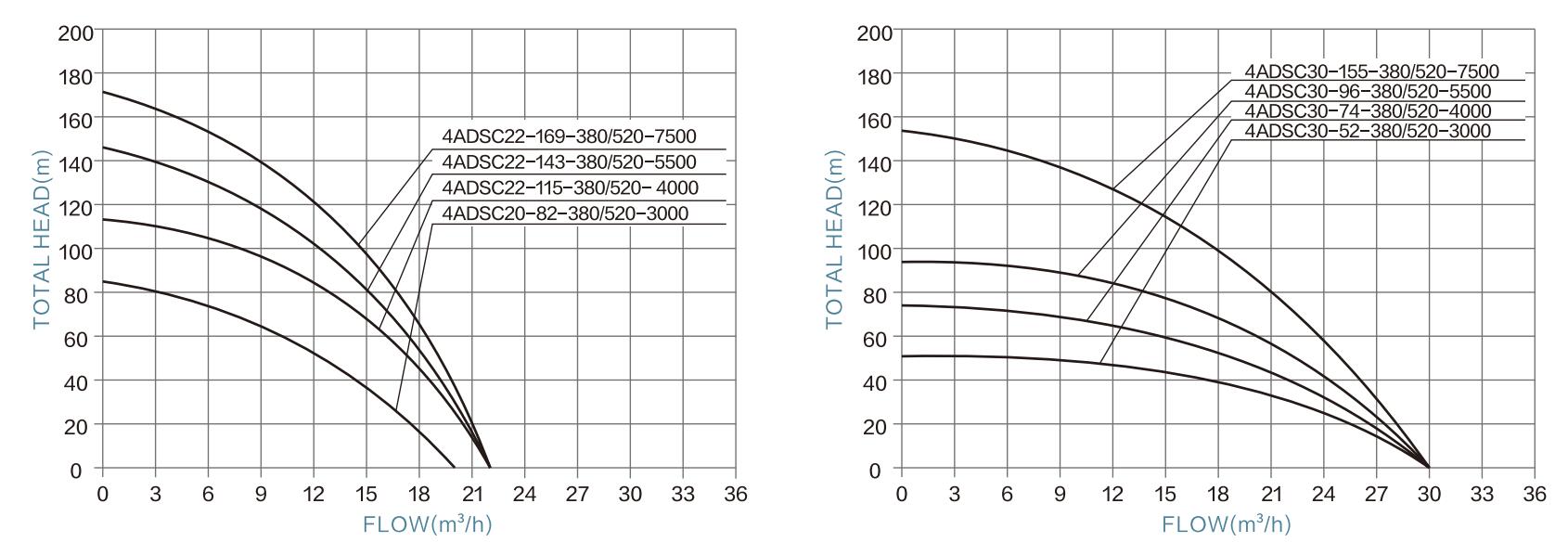

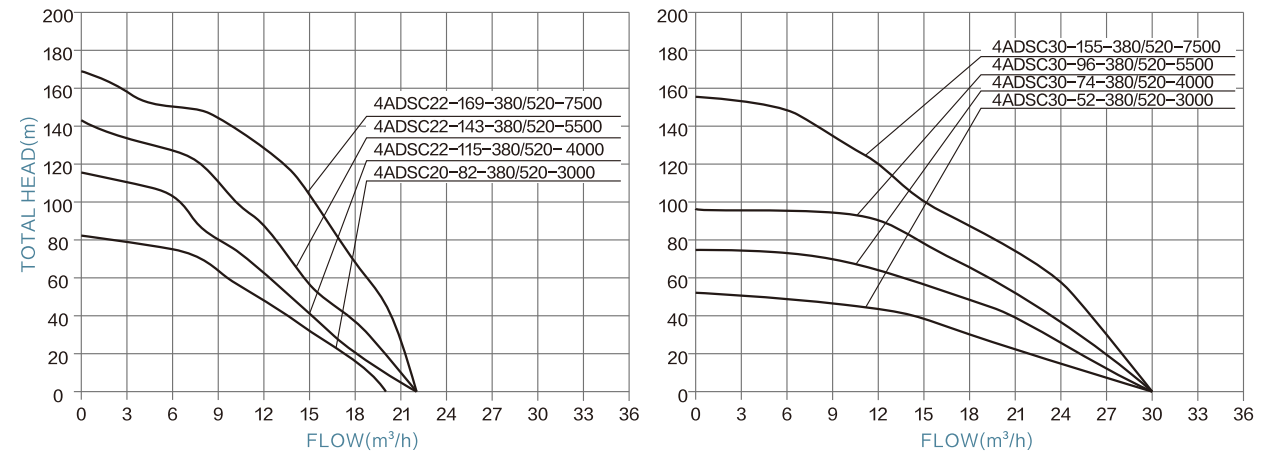

| ITEM | Voltage | Optimum input voltage (DC) | Power | Max. Flow | Max. Head | Outlet | Cable | Solar panel - Open circuit voltage (VOC) |
Solar panel - Power |
| 4ADSC20-82-380/520-3000 | AC380/DC520V | 520V-650V | 3000W | 20m³/h | 82m | 2" | 2m | <780V | ≥1.3*PUMP POWER |
| 4ADSC22-115-380/520-4000 | AC380/DC520V | 520V-650V | 4000W | 22m³/h | 115m | 2" | 2m | <780V | ≥1.3*PUMP POWER |
| 4ADSC22-143-380/520-5500 | AC380/DC520V | 520V-650V | 5500W | 22m³/h | 143m | 2" | 2m | <780V | ≥1.3*PUMP POWER |
| 4ADSC22-169-380/520-7500 | AC380/DC520V | 520V-650V | 7500W | 22m³/h | 169m | 2" | 2m | <780V | ≥1.3*PUMP POWER |
| 4ADSC30-52-380/520-3000 | AC380/DC520V | 520V-650V | 3000W | 30m³/h | 52m | 2" | 2m | <780V | ≥1.3*PUMP POWER |
| 4ADSC30-74-380/520-4000 | AC380/DC520V | 520V-650V | 4000W | 30m³/h | 74m | 2" | 2m | <780V | ≥1.3*PUMP POWER |
| 4ADSC30-96-380/520-5500 | AC380/DC520V | 520V-650V | 5500W | 30m³/h | 96m | 2" | 2m | <780V | ≥1.3*PUMP POWER |
| 4ADSC30-155-380/520-7500 | AC380/DC520V | 520V-650V | 7500W | 30m³/h | 155m | 2" | 2m | <780V | ≥1.3*PUMP POWER |
