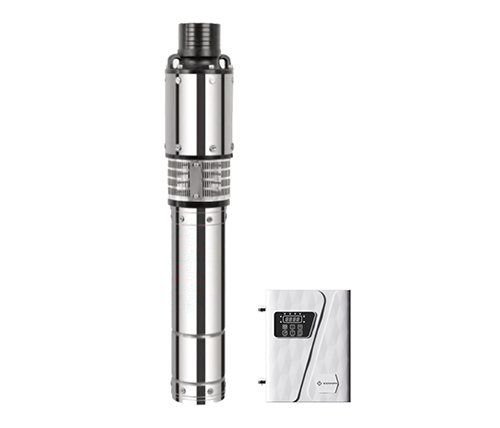

The 6/8ADPC AC/DC Hybrid Brushless Motor Solar Deep Well Pump is designed for stable and efficient water supply in agricultural, industrial, and residential systems. This pump integrates a hybrid AC/DC brushless motor, capable of operating seamlessly with both solar DC power and conventional AC electricity. It ensures continuous performance during day and night or in varying weather conditions. The pump's advanced brushless motor technology reduces energy loss, minimizes heat, and extends service life. Built for deep well applications, it delivers strong water lift and flow even under demanding field conditions.
Hybrid AC/DC Power System – Supports automatic power switching between solar DC and grid AC sources for uninterrupted operation.
High-Efficiency Brushless Motor – Offers smooth, noise-free performance, longer lifespan, and reduced maintenance compared to brushed types.
Precision Engineering – Optimized hydraulic structure ensures high lift, strong flow rate, and reliable water output from deep wells.
Durable Stainless Steel Design – Corrosion-resistant housing enhances durability in outdoor and underground environments.
Wide Voltage Adaptability – Compatible with multiple voltage inputs and solar controllers for flexible installation options.
Smart MPPT Controller Ready – Works with intelligent control systems for improve solar energy utilization and automatic protection.
Energy-Saving and Eco-Friendly – Solar power operation reduces electricity costs and supports sustainable water management.
Agricultural Irrigation – Ideal for field, orchard, and greenhouse irrigation systems using solar or hybrid power.
Livestock Water Supply – Delivers dependable water flow for cattle, poultry, and pasture irrigation.
Off-Grid and Rural Water Projects – Provides sustainable water access for remote homes, schools, and communities.
Industrial and Utility Water Systems – Efficient for continuous pumping in construction, mining, and water treatment fields.
Hybrid Backup Systems – Operates effectively with solar energy during the day and switches to AC power when sunlight is insufficient.

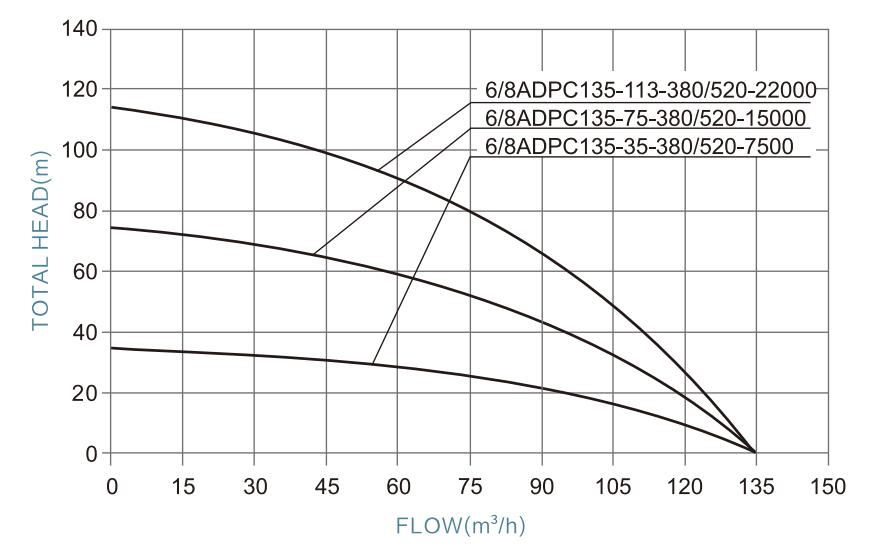

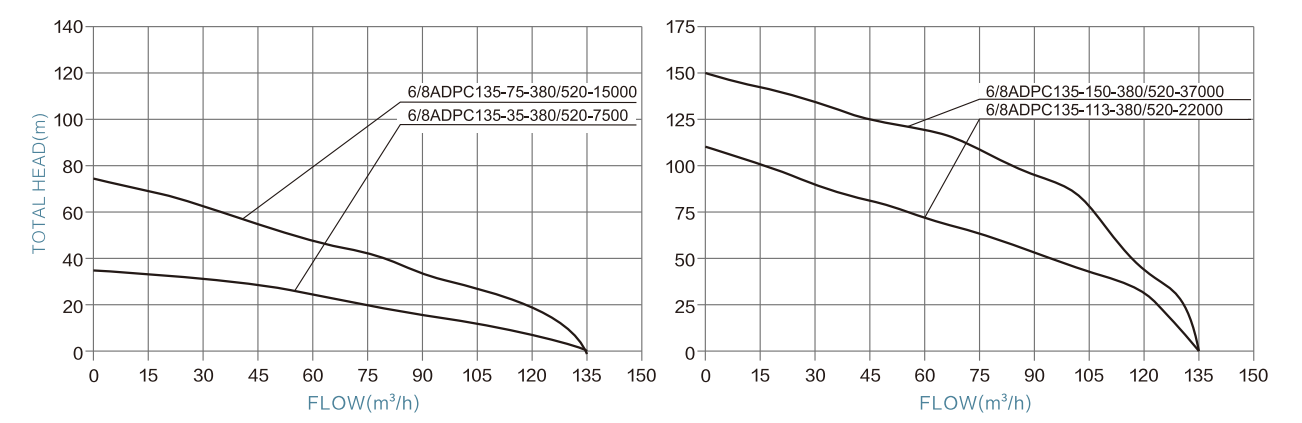

| ITEM | Voltage | Optimum input voltage (DC) | Power | Max. Flow | Max. Head | Outlet | Cable | Solar panel - Open circuit voltage (VOC) |
Solar panel - Power |
| 6/8ADPC135-35-380/520-7500 | AC380/DC520V | 520V-650V | 7500W | 135m³/h | 35m | 4" | 2m | <900V | ≥1.3*PUMP POWER |
| 6/8ADPC135-75-380/520-15000 | AC380/DC520V | 520V-650V | 15000W | 135m³/h | 75m | 4" | 2m | <900V | ≥1.3*PUMP POWER |
| 6/8ADPC135-113-380/520-22000 | AC380/DC520V | 520V-650V | 22000W | 135m³/h | 113m | 4" | 2m | <900V | ≥1.3*PUMP POWER |
| 6/8ADPC135-150-380/520-37000 | AC380/DC520V | 520V-650V | 22000W | 135m³/h | 150m | 4" | 2m | <900V | ≥1.3*PUMP POWER |
