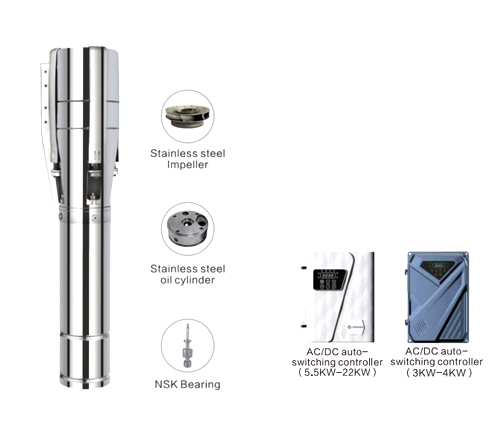

The 4/6ADSC AC/DC Hybrid Brushless Solar Pump is a high-efficiency water pump designed for both solar DC and grid AC power supply. Equipped with a durable stainless steel impeller, this hybrid pump delivers reliable water flow while minimizing maintenance. Its brushless motor ensures long service life, low noise, and energy-efficient operation, making it ideal for remote areas, off-grid irrigation, and sustainable water solutions.
Hybrid AC/DC Power: Operates seamlessly on solar DC power or conventional AC electricity.
Brushless Motor Technology: Longer lifespan, lower maintenance, and higher energy efficiency.
Stainless Steel Impeller: Resistant to corrosion and wear, suitable for freshwater and light sediment applications.
High Efficiency Design: Optimized pump structure for improve water output and reduced energy consumption.
Easy Installation: Compact and versatile design supports ground, well, or tank mounting.
Eco-Friendly: Solar-powered operation reduces carbon footprint and promotes green energy solutions.
Agricultural irrigation for crops, greenhouses, and orchards
Livestock watering systems
Solar-powered fountains and landscape water features
Remote off-grid water supply systems
Water solutions in areas without stable electricity
| ITEM | Voltage | Optimum input voltage (DC) | Power | Max. Flow | Max. Head | Outlet | Cable | Solar panel - Open circuit voltage (VOC) |
Solar panel - Power |
| 4/6ADSC30-70-380/520-3000 | AC380/DC520V | 520V-650V | 3000W | 30m³/h | 70m | 3" | 2m | <900V | ≥1.3*PUMP POWER |
| 4/6ADSC30-100-380/520-4000 | AC380/DC520V | 520V-650V | 4000W | 30m³/h | 100m | 3" | 2m | <900V | ≥1.3*PUMP POWER |
| 4/6ADSC30-122-380/520-5500 | AC380/DC520V | 520V-650V | 5500W | 30m³/h | 122m | 3" | 2m | <900V | ≥1.3*PUMP POWER |
| 4/6ADSC30-143-380/520-7500 | AC380/DC520V | 520V-650V | 7500W | 30m³/h | 143m | 3" | 2m | <900V | ≥1.3*PUMP POWER |
| 4/6ADSC36-56-380/520-3000 | AC380/DC520V | 520V-650V | 3000W | 36m³/h | 56m | 3" | 2m | <900V | ≥1.3*PUMP POWER |
| 4/6ADSC36-80-380/520-4000 | AC380/DC520V | 520V-650V | 4000W | 36m³/h | 80m | 3" | 2m | <900V | ≥1.3*PUMP POWER |
| 4/6ADSC36-108-380/520-5500 | AC380/DC520V | 520V-650V | 5500W | 36m³/h | 108m | 3" | 2m | <900V | ≥1.3*PUMP POWER |
| 4/6ADSC36-145-380/520-7500 | AC380/DC520V | 520V-650V | 7500W | 36m³/h | 145m | 3" | 2m | <900V | ≥1.3*PUMP POWER |
| 4/6ADSC46-51-380/520-3000 | AC380/DC520V | 520V-650V | 3000W | 46m³/h | 51m | 3" | 2m | <900V | ≥1.3*PUMP POWER |
| 4/6ADSC46-68-380/520-4000 | AC380/DC520V | 520V-650V | 4000W | 46m³/h | 68m | 3" | 2m | <900V | ≥1.3*PUMP POWER |
| 4/6ADSC46-86-380/520-5500 | AC380/DC520V | 520V-650V | 5500W | 46m³/h | 86m | 3" | 2m | <900V | ≥1.3*PUMP POWER |
| 4/6ADSC46-112-380/520-7500 | AC380/DC520V | 520V-650V | 7500W | 46m³/h | 112m | 3" | 2m | <900V | ≥1.3*PUMP POWER |
| 4/6ADSC65-42-380/520-4000 | AC380/DC520V | 520V-650V | 4000W | 65m³/h | 42m | 3" | 2m | <900V | ≥1.3*PUMP POWER |
| 4/6ADSC65-63-380/520-5500 | AC380/DC520V | 520V-650V | 5500W | 65m³/h | 63m | 3" | 2m | <900V | ≥1.3*PUMP POWER |
| 4/6ADSC65-85-380/520-7500 | AC380/DC520V | 520V-650V | 7500W | 65m³/h | 85m | 3" | 2m | <900V | ≥1.3*PUMP POWER |
| 4/6ADSC95-66-380/520-7500 | AC380/DC520V | 520V-650V | 7500W | 95m³/h | 66m | 4" | 2m | <900V | ≥1.3*PUMP POWER |
