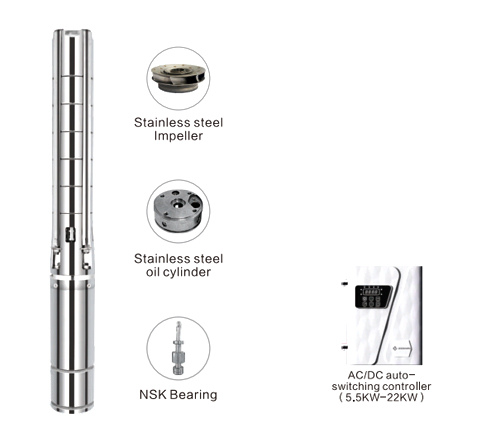

The 6ADSC AC/DC Powered Solar Deep Well Pump is a high-efficiency solution for extracting water from deep wells using solar energy or conventional AC electricity. Equipped with a durable stainless steel impeller, this solar-powered deep well pump delivers reliable, corrosion-resistant performance for long-term irrigation, livestock watering, and off-grid water supply. Its energy-efficient motor ensures stable water flow, making it ideal for agricultural irrigation systems and remote solar water pumping applications.
AC/DC Hybrid Operation: Can run on solar DC power or standard AC electricity, providing continuous water pumping for off-grid locations.
Stainless Steel Impeller: Ensures long-lasting durability and resistance to corrosion, good for deep well water extraction.
Energy-Efficient Motor: Optimized for high performance, reducing energy consumption while delivering strong, stable water flow.
Deep Well Capability: Specially designed to handle high lifting heights, ideal for solar deep well pumping and irrigation projects.
Low Maintenance & Long Lifespan: Brushless motor and robust construction minimize downtime and maintenance needs.
Eco-Friendly Solar Pumping: Uses solar energy to reduce electricity costs and promote sustainable water supply solutions.
Solar-powered irrigation for fields, orchards, and greenhouses
Livestock and poultry water supply in remote areas
Off-grid household and community water systems
Deep well water pumping for rural or agricultural projects
Solar water pumping for fountains or storage tanks
| ITEM | Voltage | Optimum input voltage (DC) | Power | Max. Flow | Max. Head | Outlet | Cable | Solar panel -Open circuit voltage (VOC) | Solar panel - Power |
| 6ADSC36-108-380/520-5500 | AC380/DC520V | 520V-650V | 5500W | 36m³/h | 108m | 3" | 2m | <900V | ≥1.3*PUMP POWER |
| 6ADSC36-145-380/520-7500 | AC380/DC520V | 520V-650V | 7500W | 36m³/h | 145m | 3" | 2m | <900V | ≥1.3*PUMP POWER |
| 6ADSC36-175-380/520-9200 | AC380/DC520V | 520V-650V | 9200W | 36m³/h | 175m | 3" | 2m | <900V | ≥1.3*PUMP POWER |
| 6ADSC36-210-380/520-11000 | AC380/DC520V | 520V-650V | 11000W | 36m³/h | 210m | 3" | 2m | <900V | ≥1.3*PUMP POWER |
| 6ADSC36-270-380/520-15000 | AC380/DC520V | 520V-650V | 15000W | 36m³/h | 270m | 3" | 2m | <900V | ≥1.3*PUMP POWER |
| 6ADSC36-310-380/520-18500 | AC380/DC520V | 520V-650V | 18500W | 36m³/h | 310m | 3" | 2m | <900V | ≥1.3*PUMP POWER |
| 6ADSC46-86-380/520-5500 | AC380/DC520V | 520V-650V | 5500W | 46m³/h | 86m | 3" | 2m | <900V | ≥1.3*PUMP POWER |
| 6ADSC46-112-380/520-7500 | AC380/DC520V | 520V-650V | 7500W | 46m³/h | 112m | 3" | 2m | <900V | ≥1.3*PUMP POWER |
| 6ADSC46-135-380/520-9200 | AC380/DC520V | 520V-650V | 9200W | 46m³/h | 135m | 3" | 2m | <900V | ≥1.3*PUMP POWER |
| 6ADSC46-160-380/520-11000 | AC380/DC520V | 520V-650V | 11000W | 46m³/h | 160m | 3" | 2m | <900V | ≥1.3*PUMP POWER |
| 6ADSC46-204-380/520-15000 | AC380/DC520V | 520V-650V | 15000W | 46m³/h | 204m | 3" | 2m | <900V | ≥1.3*PUMP POWER |
| 6ADSC46-252-380/520-18500 | AC380/DC520V | 520V-650V | 18500W | 46m³/h | 252m | 3" | 2m | <900V | ≥1.3*PUMP POWER |
| 6ADSC46-350-380/520-26000 | AC380/DC520V | 520V-650V | 26000W | 46m³/h | 350m | 3" | 2m | <900V | ≥1.3*PUMP POWER |
| 6ADSC46-398-380/520-30000 | AC380/DC520V | 520V-650V | 30000W | 46m³/h | 398m | 3" | 2m | <900V | ≥1.3*PUMP POWER |
| 6ADSC46-467-380/520-37000 | AC380/DC520V | 520V-650V | 37000W | 46m³/h | 467m | 3" | 2m | <900V | ≥1.3*PUMP POWER |
| ITEM | Voltage | Optimum input voltage (DC) | Power | Max. Flow | Max. Head | Outlet | Cable | Solar panel -Open circuit voltage (VOC) | Solar panel - Power |
| 6ADSC65-63-380/520-5500 | AC380/DC520V | 520V-650V | 5500W | 65m³/h | 63m | 4" | 2m | <900V | ≥1.3*PUMP POWER |
| 6ADSC65-85-380/520-7500 | AC380/DC520V | 520V-650V | 7500W | 65m³/h | 85m | 4" | 2m | <900V | ≥1.3*PUMP POWER |
| 6ADSC65-100-380/520-9200 | AC380/DC520V | 520V-650V | 9200W | 65m³/h | 100m | 4" | 2m | <900V | ≥1.3*PUMP POWER |
| 6ADSC65-120-380/520-11000 | AC380/DC520V | 520V-650V | 11000W | 65m³/h | 120m | 4" | 2m | <900V | ≥1.3*PUMP POWER |
| 6ADSC65-160-380/520-15000 | AC380/DC520V | 520V-650V | 15000W | 65m³/h | 160m | 4" | 2m | <900V | ≥1.3*PUMP POWER |
| 6ADSC65-200-380/520-18500 | AC380/DC520V | 520V-650V | 18500W | 65m³/h | 200m | 4" | 2m | <900V | ≥1.3*PUMP POWER |
| 6ADSC65-237-380/520-26000 | AC380/DC520V | 520V-650V | 26000W | 65m³/h | 237m | 4" | 2.5m | <800V | ≥1.3*PUMP POWER |
| 6ADSC65-280-380/520-30000 | AC380/DC520V | 520V-650V | 30000W | 65m³/h | 280m | 4" | 2.5m | <800V | ≥1.3*PUMP POWER |
| 6ADSC65-324-380/520-37000 | AC380/DC520V | 520V-650V | 37000W | 65m³/h | 324m | 4" | 2.5m | <800V | ≥1.3*PUMP POWER |
| 6ADSC95-66-380/520-7500 | AC380/DC520V | 520V-650V | 7500W | 95m³/h | 66m | 4" | 2m | <900V | ≥1.3*PUMP POWER |
| 6ADSC95-88-380/520-11000 | AC380/DC520V | 520V-650V | 11000W | 95m³/h | 88m | 4" | 2m | <900V | ≥1.3*PUMP POWER |
| 6ADSC95-126-380/520-15000 | AC380/DC520V | 520V-650V | 15000W | 95m³/h | 126m | 4" | 2m | <900V | ≥1.3*PUMP POWER |
| 6ADSC95-153-380/520-18500 | AC380/DC520V | 520V-650V | 18500W | 95m³/h | 153m | 4" | 2m | <900V | ≥1.3*PUMP POWER |
| 6ADSC95-180-380/520-22000 | AC380/DC520V | 520V-650V | 22000W | 95m³/h | 180m | 4" | 2m | <900V | ≥1.3*PUMP POWER |
| 6ADSC95-195-380/520-26000 | AC380/DC520V | 520V-650V | 15000W | 95m³/h | 195m | 4" | 2.5m | <800V | ≥1.3*PUMP POWER |
| 6ADSC95-210-380/520-30000 | AC380/DC520V | 520V-650V | 18500W | 95m³/h | 210m | 4" | 2.5m | <800V | ≥1.3*PUMP POWER |
| 6ADSC95-237-380/520-37000 | AC380/DC520V | 520V-650V | 22000W | 95m³/h | 237m | 4" | 2.5m | <800V | ≥1.3*PUMP POWER |
