The 8ADSC Stainless Steel Cylinder AC/DC Hybrid Solar Deep Well Pump is a high-performance water pump designed for deep well applications. Featuring a corrosion-resistant stainless steel cylinder and hybrid AC/DC operation, this solar-powered deep well pump delivers reliable water flow for agricultural irrigation, livestock watering, and off-grid water supply. Its energy-efficient motor and durable construction ensure long-term operation with minimal maintenance, making it an ideal solution for remote or solar-powered water systems.
Hybrid AC/DC Power: Operates on both solar DC power and conventional AC electricity, ensuring continuous deep well water pumping.
Stainless Steel Cylinder: Provides outstanding corrosion resistance and durability for long-term use in challenging water conditions.
High-Efficiency Motor: Optimized for stable and strong water flow while minimizing energy consumption.
Deep Well Capability: Designed specifically for deep well pumping, suitable for solar irrigation and rural water supply.
Low Maintenance & Long Lifespan: Brushless motor and robust stainless steel construction reduce downtime and maintenance costs.
Eco-Friendly Solar Operation: Utilizes solar energy to provide sustainable water pumping with reduced electricity costs.
Solar-powered irrigation for farmlands, orchards, and greenhouses
Livestock and poultry water supply in remote or off-grid locations
Deep well water pumping for rural communities
Off-grid household or small-scale water systems
Solar water pumping for storage tanks or water features

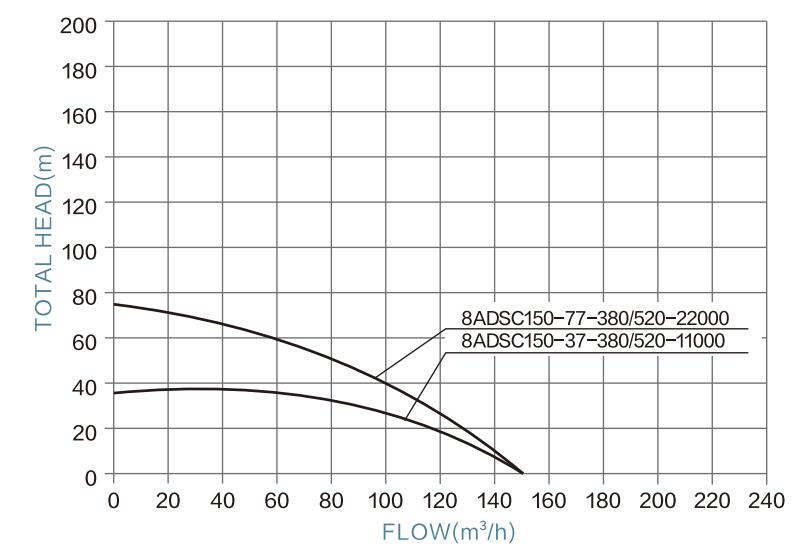

| ITEM | Voltage | Optimum input voltage (DC) | Power | Max. Flow | Max. Head | Outlet | Cable | Solar panel - Open circuit voltage (VOC) |
Solar panel - Power |
| 8ADSC150-37-380/520-11000 | AC380/DC520V | 520V-650V | 11000W | 150m³/h | 37m | 5" | 2m | <780V | ≥1.3*PUMP POWER |
| 8ADSC150-77-380/520-22000 | AC380/DC520V | 520V-650V | 22000W | 150m³/h | 77m | 5" | 2m | <780V | ≥1.3*PUMP POWER |
