Description :
With its advanced technology,ADQD series AC/DC brushless portable anti-corrision solar submersible pump for irrigation is capable of delivering high-quality water without the need for electricity or fuel. It is made of high-quality stainless steel casing, which makes it durable and resistant to corrosion.
Key Features :
1、304 SS shell
2、Easy Installation
3、Anti-corrision operation
4、Ecofriendly :it is not only cost-effective but also environmentally friendly.
5、1 year warranty
Free Spare Parts :
Technical Data：
|
ITEM |
（AC）Voltage |
Optimum input voltage(DC) |
Power |
Max. Flow |
Max.Head |
Outlet |
Cable |
Solar panel |
|
|
Open circuit voltage(VOC) |
Power |
||||||||
|
ADQD7-26-72-750 |
85V-280V |
100V-350V |
750W |
7m³/h |
26m |
1" |
5m |
＜430V |
≥1.3*PUMP POWER |
|
ADQD12-30-110-1100 |
85V-280V |
110V-350V |
1100W |
12m³/h |
30m |
1.5" |
5m |
＜430V |
≥1.3*PUMP POWER |
|
ADQD25-25-110-1100 |
85V-280V |
110V-350V |
1100W |
25m³/h |
25m |
2" |
5m |
＜430V |
≥1.3*PUMP POWER |
|
ADQD30-28-110-1500 |
85V-280V |
110V-350V |
1500W |
30m³/h |
28m |
2" |
5m |
＜430V |
≥1.3*PUMP POWER |
|
ADQD35-20-110-1500 |
85V-280V |
110V-350V |
1500W |
35m³/h |
20m |
2.5" |
5m |
＜430V |
≥1.3*PUMP POWER |
|
ADQD50-10-110-1500 |
85V-280V |
110V-350V |
1500W |
50m³/h |
10m |
3" |
5m |
＜430V |
≥1.3*PUMP POWER |

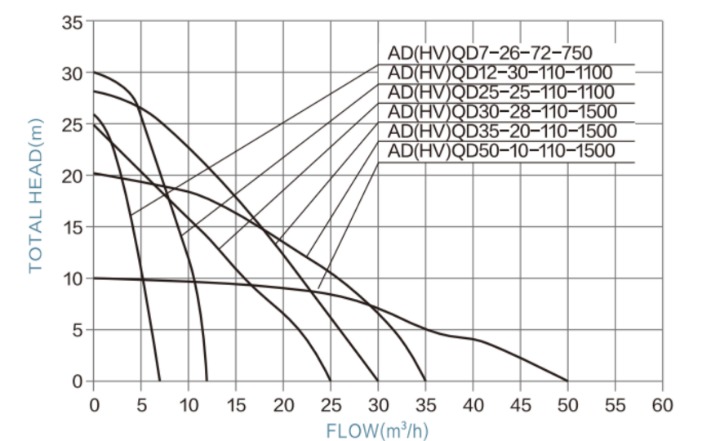

Hydraulic Performance Curves :
EDWIN PUMP is a professional China borewell pumps manufacturers and deep well pumps factory, which supply a wide range of water pumps and water treatment peripheral products to customers around the world.
Our factory mainly produce three types of pumps: deep well pumps, sewage submersible pumps and household borewell pumps. At the same time, when customers have demand, we also provide customers with other related water treatment products by a professional working team from the company.
