6SDM60 6" Anti-corrison Sand Resistance Float Impeller Borehole Submersible Pump

Minimum well diameter : 6"

Rated capacity : 60m³/h
Oil chamber : Cast-Cu or iron
Anti-corrison
Sand Resistance
High Quality Float Impeller
Borehole Submersible Pump

PREV：6SDM50 6" Anti-corrison Sand Resistance Float Impeller Borehole Submersible Pump
NEXT：6SP10 6" Widely Applications Rubber Wear Ring Stainless Steel Impeller Borehole Submersible Pump for Civil Industrial

Description
Components
Curves
Performance Data
Contact Us

Description :

The 6SDM60 6" Anti-corrosion Sand Resistance High Quality Float Impeller Borehole Submersible Pump is a high-quality and durable water pumping solution designed for borehole applications. This pump is equipped with anti-corrosion and sand resistance features, along with a high-quality float impeller.

Applications :

Provides water supply from wells or reservoirs for various use cases.

Caters to domestic, civil, and industrial applications with stable performance.

Supports garden maintenance and agricultural irrigation operations efficiently.

Key Features :

1、The anti-corrosion feature of the pump ensures its resistance to corrosion caused by water or other environmental factors. This enhances the longevity and durability of the pump, making it suitable for long-term use in various water conditions.
2、The sand resistance feature is designed to handle sand and other abrasive particles commonly found in boreholes. It prevents clogging and damage to the pump, ensuring smooth and efficient operation even in challenging environments.
3、The high-quality float impeller of the pump contributes to its overall performance and efficiency. It is designed to efficiently move water, providing reliable and consistent water pumping from the borehole.
4、The 6SDM45 pump is specifically designed for borehole applications, allowing it to be fully submerged in water. This submersible design maximizes efficiency and minimizes noise, making it suitable for various settings including residential, commercial, or agricultural.

Operating Conditions:

Maximum fluid temperature up to +35℃
Maximum sand content : 0.25%
Minimum well diameter : 6"

Motor and Pump :

Reversible Motor

Single-phase : 220-240V/50Hz

Three-phase : 380-415V/50Hz

Equipped with a starter control box or digital automatic control box

Curve tolerance complies with ISO 9906 standards.

Options on request :

Special mechanical seal
Single phase motor with built-in capacitor

Warranty : 2 years

(according to our general sales conditions)

Certificate :

Components and Material :

Components	Material
Pump external casing	AISI 304 SS
Delivery casing	Cast-Cu ASTM C85500
	AISI 304 SS
	Cast-iron ASTM NO.30
Suction lantern	1.AISI 304 SS 2.Cast-ASTM NO.30
Diffuser	Plastic.PC
Impeller	Plastic.POM
Shaft	AISI 304 SS
Shaft coupling	AISI 304 SS
Wear ring	AISI 304 SS
Motor external casing	AISI 304 SS
Oil chamber	①Cast-Cu ASTM C85500
Oil chamber	②Cast-iron ASTM NO.30
Bottom support	AISI 304 SS
Mechanical seal	Special seal for deep well(Graphite-Ceramic)
Shaft	AISI 304 SS-ASTM 5140
Seal lubricant oil	Oil for food machinery and pharmaceutic use.

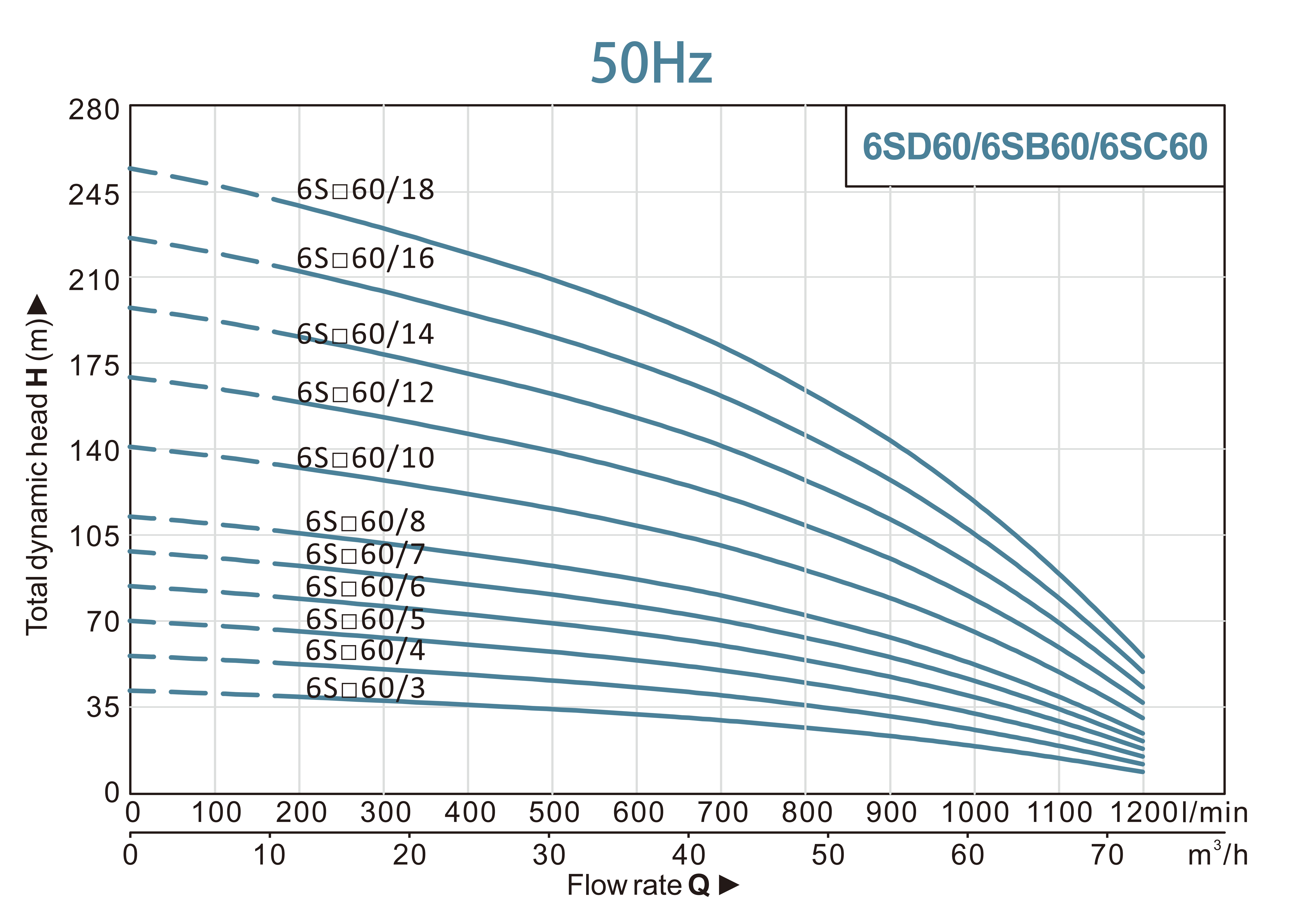

Performance Curves:

Performance Data ( 50Hz ) :

MODEL		MOTOR		DELIVERY n≈2850 r/min
1~220-240V	3~ 380-415V	KW	HP	Q(m³/h)	0	6	12	18	24	30	36	42	48	54	60	66	72
1~220-240V	3~ 380-415V	KW	HP	Q(l/min)	0	100	200	300	400	500	600	700	800	900	1000	1100	1200
6SDM60/3	6SD60/3	5.5	7.5	H(m)	42	41	40	38	37	35	33	30	27	24	20	15	9
-	6SD60/4	7.5	10		57	55	53	51	49	47	44	41	37	32	27	20	13
-	6SD60/5	9.2	12.5		71	69	66	64	61	58	54	51	46	40	33	25	16
-	6SD60/6	11	15		85	83	80	77	74	70	65	61	55	48	40	30	19
-	6SD60/7	13	17.5		99	96	93	89	86	81	76	71	64	56	46	35	22
-	6SD60/8	15	20		113	110	106	102	98	93	87	81	73	64	53	40	25
-	6SD60/10	18.5	25		141	138	133	128	123	116	109	101	91	80	66	50	31
-	6SD60/12	22	30		170	165	159	153	147	140	131	122	110	96	80	60	38
-	6SD60/14	26	35		198	193	186	179	172	163	152	142	128	112	93	70	44
-	6SD60/16	30	40		226	220	212	204	196	186	174	162	146	128	106	80	50
-	6SD60/18	37	40		254	248	239	230	221	209	196	182	164	144	119	90	56

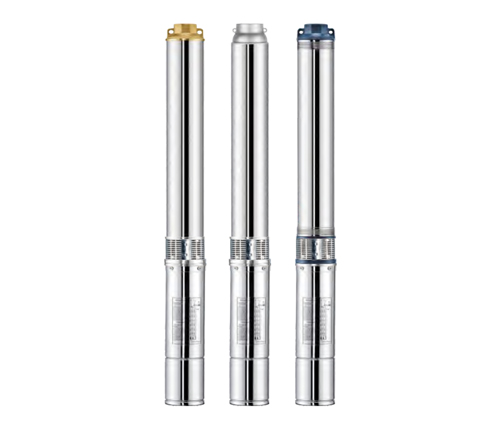

6S□ in the above table can be replaced by 6SD ,6SB,6SC
