The 3HVSC Wide Voltage Solar Deep Well Pump features a 3-inch diameter design and a wide-voltage brushless DC motor, making it ideal for small well installations. Unlike conventional plastic impellers, this pump is equipped with a stainless steel impeller, providing outstanding wear and corrosion resistance for long-term, reliable operation in complex water environments. The stainless steel cylinder and robust pump body enhance durability, while NSK bearings and high-temperature copper wire ensure stable motor performance under variable solar power conditions.
Wide Voltage Brushless DC Motor: Ensures efficient and reliable operation across varying solar power inputs.
Stainless Steel Impeller & Cylinder: Corrosion-resistant and durable, ideal for deep well and small well applications.
NSK Bearings & High-Temperature Copper Wire: Enhances motor stability, reduces friction, and ensures long-term reliability.
Compact 3-Inch Bore: Suitable for small wells, low-flow irrigation, and residential water supply.
Energy-Efficient & Low Maintenance: Optimized for long-term operation in off-grid and remote environments.
Drinking water supply in rural or off-grid areas
Low-flow agricultural irrigation for orchards, gardens, and small farms
Drip irrigation systems for fruit orchards and vineyards
Solar-powered water transfer for small storage tanks
Reliable deep well pumping in challenging or remote environments

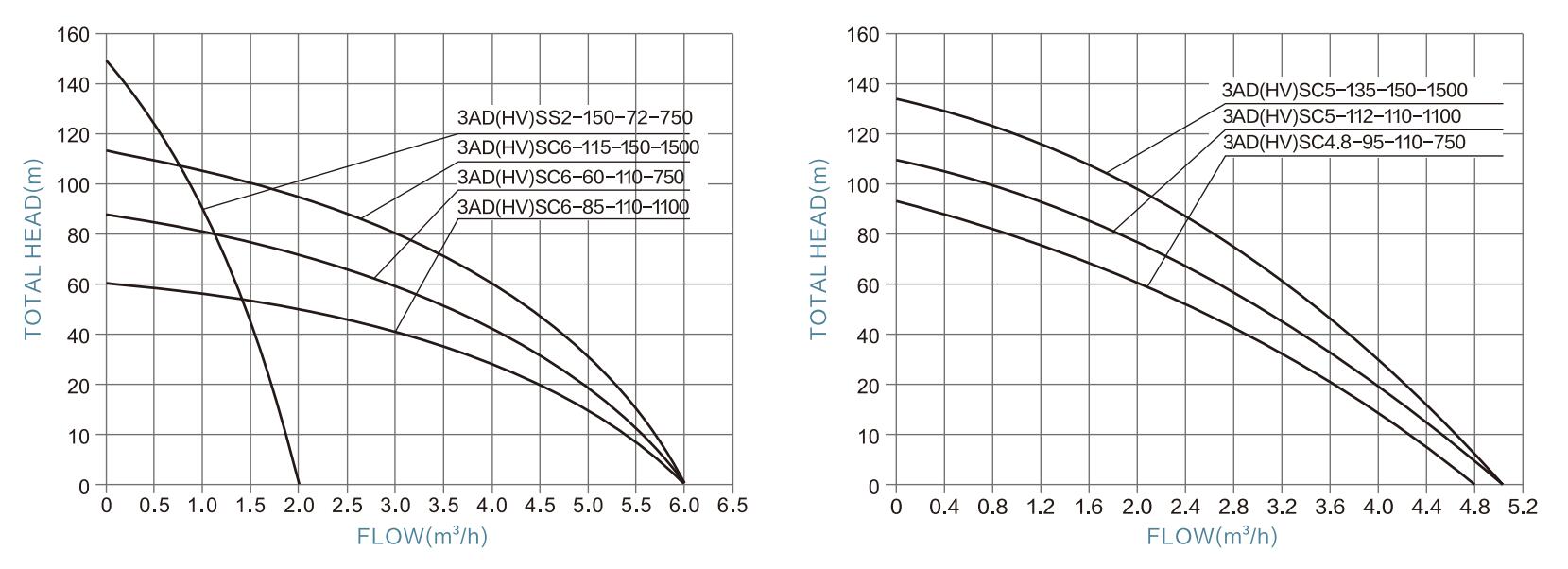

| ITEM | (AC) Voltage | Optimum input voltage (DC) | Power | Max. Flow | Max. Head | Outlet | Cable | Solar panel - Open circuit voltage (VOC) |
Solar panel - Power |
| 3ADSS2-150-72-750 | 85V-280V | 100V-350V | 750W | 2m³/h | 150m | 0.75" | 2m | <430V | ≥1.3*PUMP POWER |
| ITEM | (AC) Voltage | Optimum input voltage (DC) | Power | Max. Flow | Max. Head | Outlet | Cable | Solar panel - Open circuit voltage (VOC) |
Solar panel - Power |
| 3ADSC4.8-95-110-750 | 85V-280V | 110V-350V | 750W | 4.8m³/h | 95m | 1.25" | 2m | <430V | ≥1.3*PUMP POWER |
| 3HVSC4.8-95-110-750 | / | 110V-350V | 750W | 4.8m³/h | 95m | 1.25" | 2m | <430V | ≥1.3*PUMP POWER |
| 3ADSC5-112-110-1100 | 85V-280V | 110V-350V | 1100W | 5m³/h | 112m | 1.25" | 2m | <430V | ≥1.3*PUMP POWER |
| 3HVSC5-112-110-1100 | / | 110V-350V | 1100W | 5m³/h | 112m | 1.25" | 2m | <430V | ≥1.3*PUMP POWER |
| 3ADSC5-135-150-1500 | 85V-280V | 150V-350V | 1500W | 5m³/h | 135m | 1.25" | 2m | <430V | ≥1.3*PUMP POWER |
| 3HVSC5-135-150-1500 | / | 150V-350V | 1500W | 5m³/h | 135m | 1.25" | 2m | <430V | ≥1.3*PUMP POWER |
| 3ADSC6-60-110-750 | 85V-280V | 110V-350V | 750W | 6m³/h | 60m | 1.25" | 2m | <430V | ≥1.3*PUMP POWER |
| 3HVSC6-60-110-750 | / | 110V-350V | 750W | 6m³/h | 60m | 1.25" | 2m | <430V | ≥1.3*PUMP POWER |
| 3ADSC6-85-110-1100 | 85V-280V | 110V-350V | 1100W | 6m³/h | 85m | 1.25" | 2m | <430V | ≥1.3*PUMP POWER |
| 3HVSC6-85-110-1100 | / | 110V-350V | 1100W | 6m³/h | 85m | 1.25" | 2m | <430V | ≥1.3*PUMP POWER |
| 3ADSC6-115-150-1500 | 85V-280V | 150V-350V | 1500W | 6m³/h | 115m | 1.25" | 2m | <430V | ≥1.3*PUMP POWER |
| 3HVSC6-115-150-1500 | / | 150V-350V | 1500W | 6m³/h | 115m | 1.25" | 2m | <430V | ≥1.3*PUMP POWER |
