The 3HVPC Wide Voltage Submersible Solar Deep Well Pump is designed for reliable water pumping from deep wells using solar energy. Equipped with a wide voltage brushless DC motor, this 3-inch bore pump operates efficiently under variable power conditions, delivering stable performance even in low-light environments. Its copper water outlet and copper cylinder enhance durability, while the corrosion-resistant plastic impeller ensures smooth water flow. NSK bearings provide long-term wear resistance, making this solar deep well pump ideal for remote, off-grid, or agricultural applications.
Wide Voltage Brushless DC Motor: Maintains stable and energy-efficient operation across variable solar power inputs.
Submersible Design: Suitable for direct deep well installation, ensuring continuous water supply.
Copper Water Outlet & Cylinder: Enhance durability and reduce corrosion for long-term performance.
Plastic Impeller: Lightweight, corrosion-resistant, and optimized for smooth water flow.
NSK Bearings: Provide wear resistance, reduce friction, and extend pump lifespan.
Compact 3-Inch Bore: Ideal for deep well irrigation, livestock water supply, and remote solar water systems.
Applications :
Solar-powered deep well irrigation for orchards, farms, and greenhouses
Livestock and pasture water supply in remote or off-grid areas
Rural household or small community water systems
Off-grid water pumping projects requiring efficient submersible solutions
Clean water supply for small-scale solar water transfer and storage

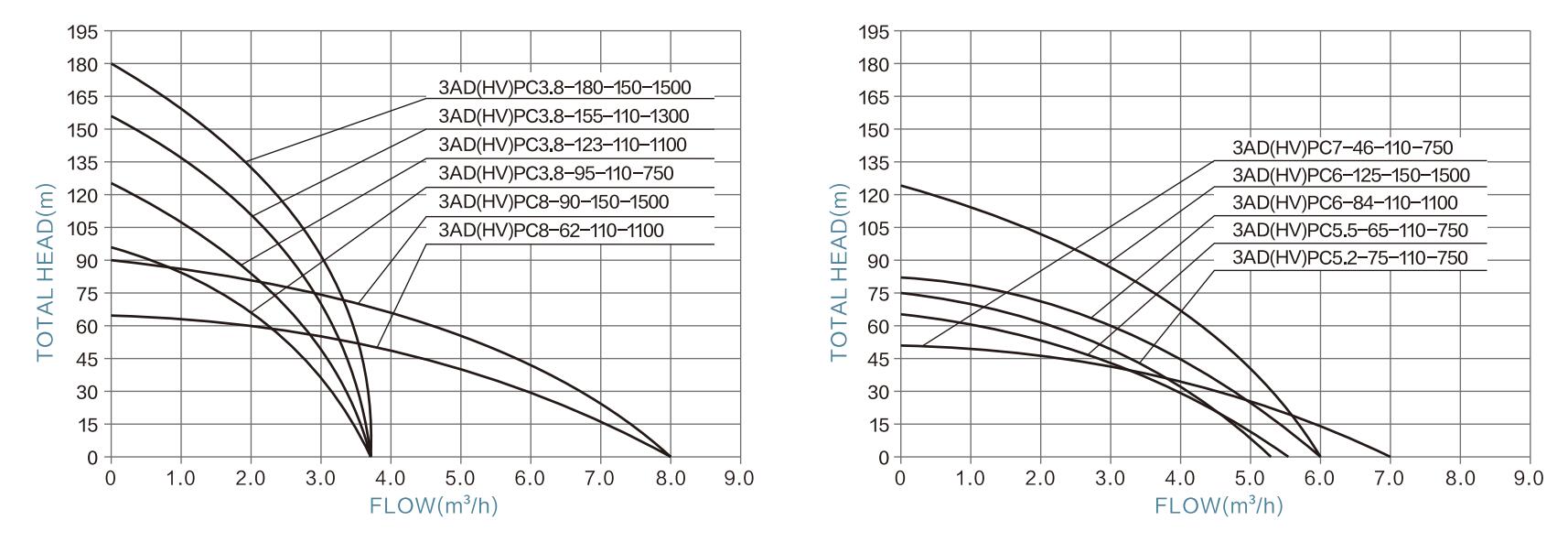

| ITEM | (AC) Voltage | Optimum input voltage (DC) | Power | Max. Flow | Max. Head | Outlet | Cable | Solar panel - Open circuit voltage (VOC) |
Solar panel - Power |
| 3HVPC3.8-95-110-750 | / | 110-350V | 750W | 3.8m³/h | 95m | 1.25" | 2m | <450V | ≥1.3*PUMP POWER |
| 3HVPC3.8-123-110-1100 | / | 110-350V | 1100W | 3.8m³/h | 123m | 1.25" | 2m | <450V | ≥1.3*PUMP POWER |
| 3HVPC3.8-155-110-1300 | / | 110-350V | 1300W | 3.8m³/h | 155m | 1.25" | 2m | <450V | ≥1.3*PUMP POWER |
| 3HVPC3.8-180-150-1500 | / | 150-350V | 1500W | 3.8m³/h | 180m | 1.25" | 2m | <450V | ≥1.3*PUMP POWER |
| 3HVPC5.2-75-110-750 | / | 100-350V | 750W | 5.2m³/h | 75m | 1.5" | 2m | <450V | ≥1.3*PUMP POWER |
| 3HVPC5.5-65-110-750 | / | 100-350V | 750W | 5.5m³/h | 65m | 1.5" | 2m | <450V | ≥1.3*PUMP POWER |
| 3HVPC6-84-110-1100 | / | 110-350V | 1100W | 6m³/h | 84m | 1.5" | 2m | <450V | ≥1.3*PUMP POWER |
| 3HVPC6-125-150-1500 | / | 150-350V | 1500W | 6m³/h | 125m | 1.5" | 2m | <450V | ≥1.3*PUMP POWER |
| 3HVPC7-46-110-750 | / | 100-350V | 750W | 7m³/h | 46m | 1.5" | 2m | <450V | ≥1.3*PUMP POWER |
| 3HVPC8-62-110-1100 | / | 110-350V | 1100W | 8m³/h | 62m | 1.5" | 2m | <450V | ≥1.3*PUMP POWER |
| 3HVPC8-90-150-1500 | / | 150-350V | 1500W | 8m³/h | 90m | 1.5" | 2m | <450V | ≥1.3*PUMP POWER |
