The 4HVPCW Wide Voltage Solar Deep Well Pump features a water-filled brushless DC motor, offering an environmentally friendly, oil-free operation compared to traditional oil-cooled motors. Its 4-inch diameter pump body, combined with a copper cylinder and copper outlet, delivers outstanding corrosion resistance and reliable long-term performance. A lightweight plastic impeller reduces overall weight, simplifying transport and installation, while NSK bearings and a water-cooled heat dissipation design extend service life. Wide voltage adaptability ensures stable operation even under low-light solar conditions, making this pump ideal for both household drinking water supply and energy-efficient agricultural irrigation projects.
Water-Filled Brushless DC Motor: Oil-free, environmentally friendly design with low maintenance requirements.
Copper Cylinder & Outlet: Corrosion-resistant for durable and reliable deep well operation.
Plastic Impeller: Lightweight and efficient, facilitating smooth water flow and easy installation.
Wide Voltage Compatibility: Stable operation under varying solar power conditions, even in low-light environments.
NSK Bearings & Water-Cooled Structure: Enhance durability, reduce friction, and extend pump lifespan.
Compact 4-Inch Bore: Suitable for residential, rural, and small agricultural water supply systems.
Household drinking water supply in rural and off-grid areas
Energy-saving agricultural irrigation for gardens, orchards, and farms
Solar-powered water transfer for small storage tanks
Off-grid water projects requiring low-maintenance, reliable pumping
Deep well water supply in remote or challenging environments

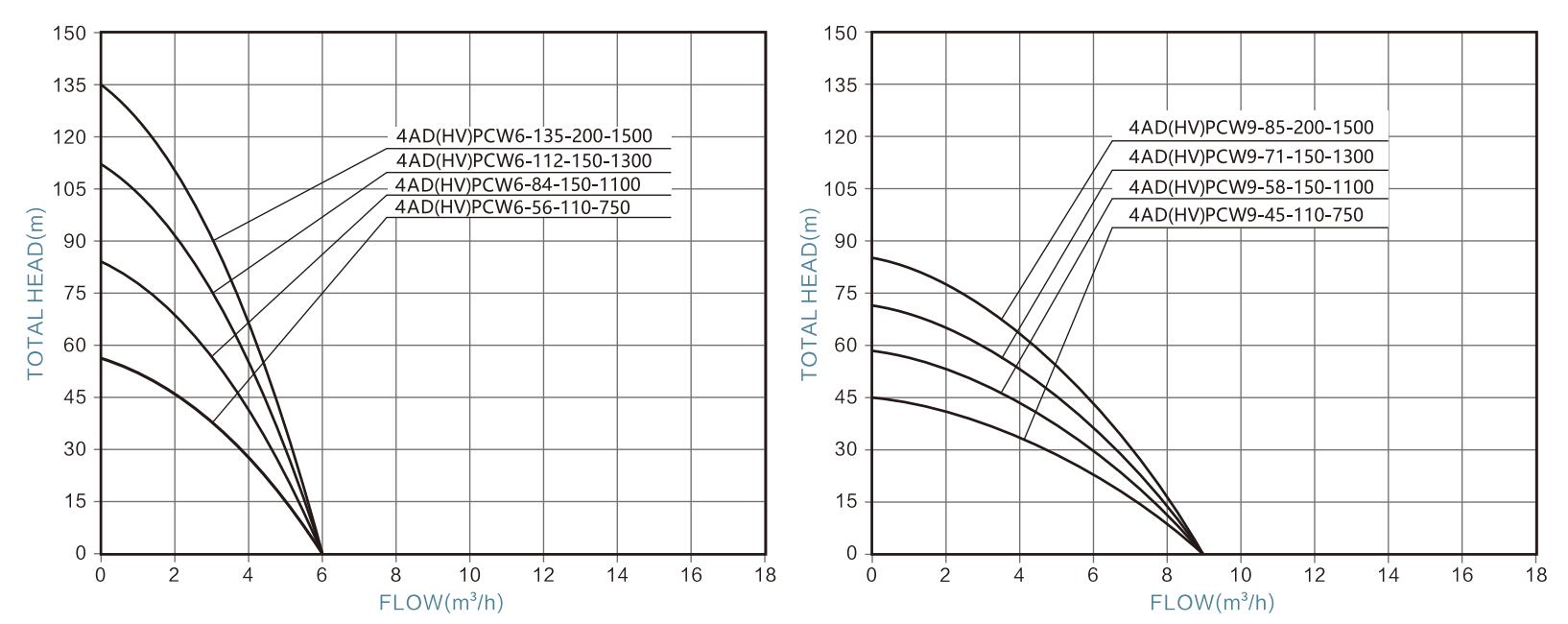

| ITEM | (AC) Voltage | (DC) Voltage | Power | Max. Flow | Max. Head | Outlet | Cable | Solar panel - Open circuit voltage(VOC) |
Solar panel - Power |
| 4HVPCW6-56-110-750 | / | 80V-430V | 750W | 6m³/h | 56m | 1.25" | 2m | <430V | ≥1.3*PUMP POWER |
| 4HVPCW6-84-150-1100 | / | 80V-430V | 1100W | 6m³/h | 84m | 1.25" | 2m | <430V | ≥1.3*PUMP POWER |
| 4HVPCW6-112-150-1300 | / | 80V-430V | 1300W | 6m³/h | 112m | 1.25" | 2m | <430V | ≥1.3*PUMP POWER |
| 4HVPCW6-135-200-1500 | / | 80V-430V | 1500W | 6m³/h | 135m | 1.25" | 2m | <430V | ≥1.3*PUMP POWER |
| 4HVPCW9-45-110-750 | / | 80V-430V | 750W | 9m³/h | 45m | 2" | 2m | <430V | ≥1.3*PUMP POWER |
| 4HVPCW9-58-150-1100 | / | 80V-430V | 1100W | 9m³/h | 58m | 2" | 2m | <430V | ≥1.3*PUMP POWER |
| 4HVPCW9-71-150-1300 | / | 80V-430V | 1300W | 9m³/h | 71m | 2" | 2m | <430V | ≥1.3*PUMP POWER |
| 4HVPCW9-85-200-1500 | / | 80V-430V | 1500W | 9m³/h | 85m | 2" | 2m | <430V | ≥1.3*PUMER |

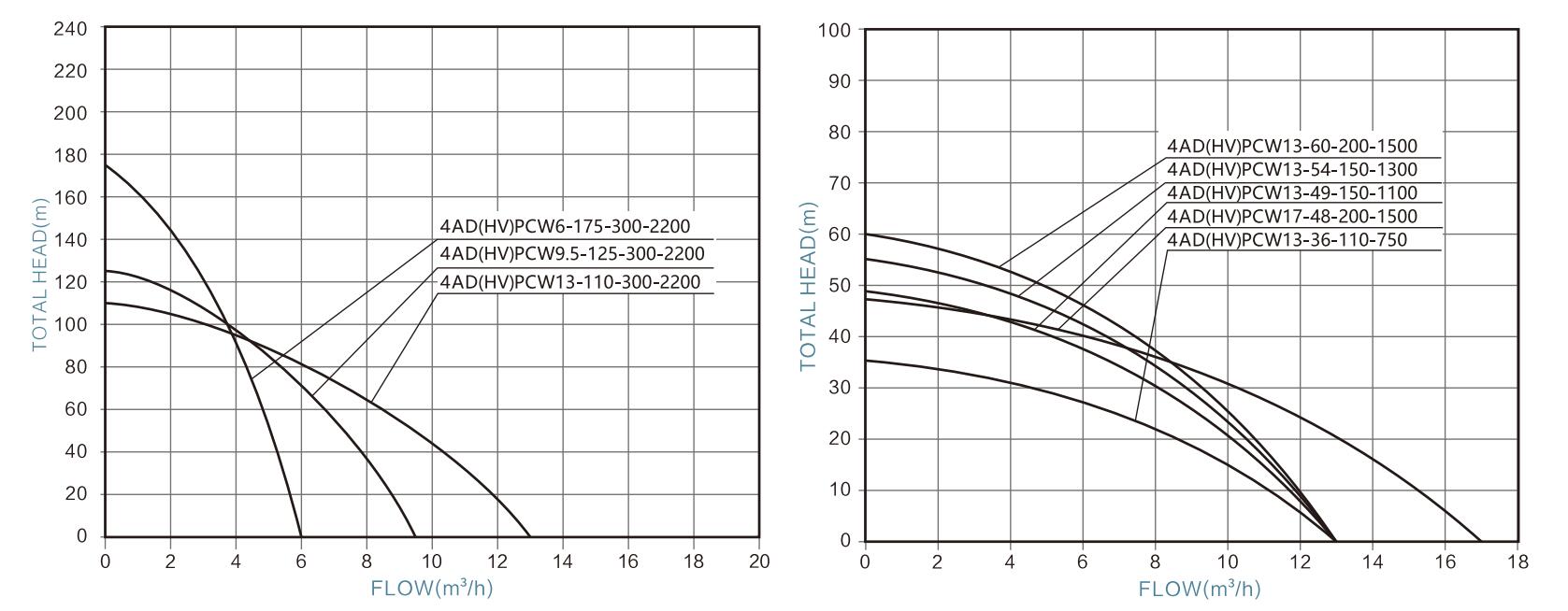

| ITEM | (AC) Voltage | (DC) Voltage | Power | Max. Flow | Max. Head | Outlet | Cable | Solar panel - Open circuit voltage(VOC) |
Solar panel- Power |
| 4HVPCW13-36-110-750 | / | 80V-430V | 750W | 13m³/h | 36m | 2" | 2m | <430V | ≥1.3*PUMP POWER |
| 4HVPCW13-49-150-1100 | / | 80V-430V | 1100W | 13m³/h | 49m | 2" | 2m | <430V | ≥1.3*PUMP POWER |
| 4HVPCW13-54-150-1300 | / | 80V-430V | 1300W | 13m³/h | 54m | 2" | 2m | <430V | ≥1.3*PUMP POWER |
| 4HVPCW13-60-200-1500 | / | 80V-430V | 1500W | 13m³/h | 60m | 2" | 2m | <430V | ≥1.3*PUMP POWER |
| 4HVPCW17-48-200-1500 | / | 80V-430V | 1500W | 17m³/h | 48m | 2" | 2m | <430V | ≥1.3*PUMP POWER |
| 4HVPCW6-175-300-2200 | / | 80V-430V | 2200W | 6m³/h | 175m | 1.25" | 2m | <430V | ≥1.3*PUMP POWER |
| 4HVPCW9.5-125-300-2200 | / | 80V-430V | 2200W | 9.5m³/h | 125m | 2" | 2m | <430V | ≥1.3*PUMP POWER |
| 4HVPCW13-110-300-2200 | / | 80V-430V | 2200W | 13m³/h | 110m | 2" | 2m | <430V | ≥1.3*PUMP POWER |
