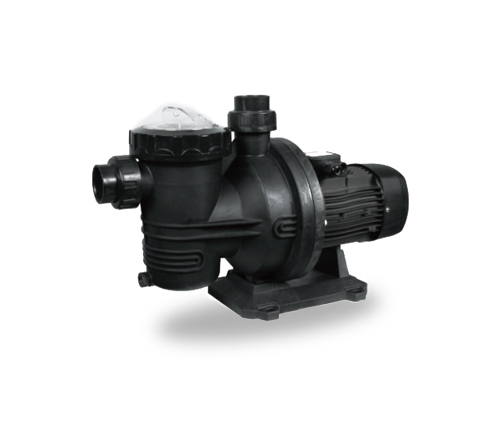

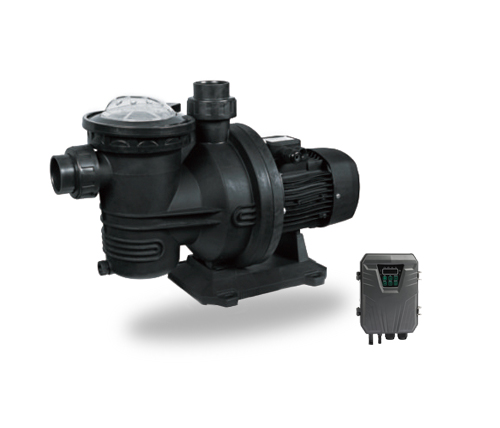

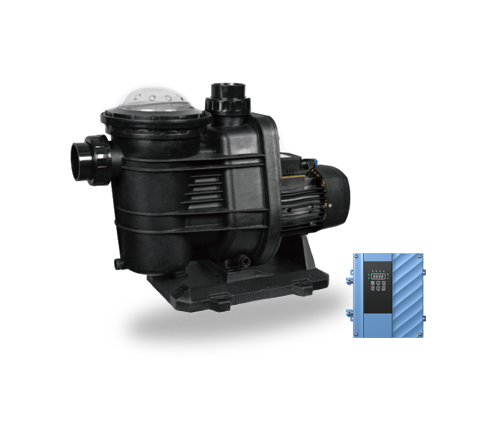

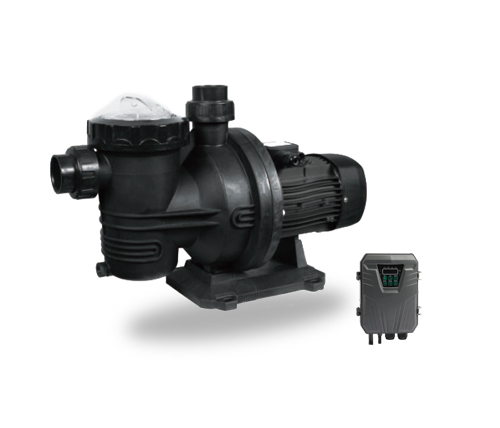

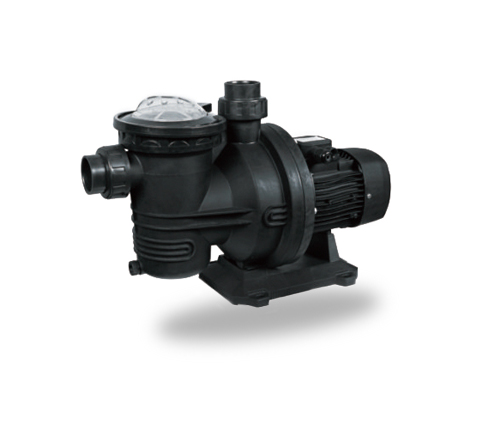

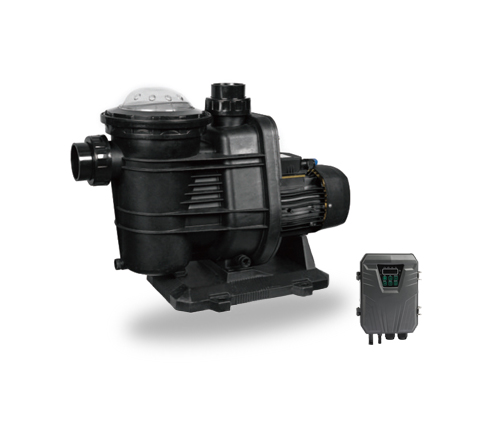

ELP Seires DC Brushless Motor Solar Swimming Pool Pump
View All Products
en
The ELP Series Solar Swimming Pool Pump features a high-efficiency DC brushless motor, designed for reliable and energy-efficient water circulation in solar-powered pool systems. Its specialized swimming pool pump design ensures consistent water flow, proper filtration, and clean, safe pool water. Compact and durable, the ELP Series combines low maintenance with outstanding performance, making it ideal for residential pools, small hotel pools, and community pool setups powered by solar energy.
DC Brushless Motor: Provides energy-efficient, maintenance-free, and stable operation under solar power.
Swimming Pool Pump Design: Optimized for smooth water circulation, filtration, and clean pool maintenance.
Durable Construction: Long-lasting components suitable for residential, commercial, and off-grid solar pool applications.
Compact & Easy Installation: Suitable for pool-side or underground installations with solar-powered systems.
Energy-Efficient & Low Maintenance: Optimized for solar operation, reducing electricity costs and maintenance efforts.
Applications :
Solar-powered residential swimming pools
Small hotel and guesthouse pool circulation systems
Community or public pool water circulation
Off-grid and remote solar-powered swimming pool setups
Energy-efficient pool water management for private and commercial use

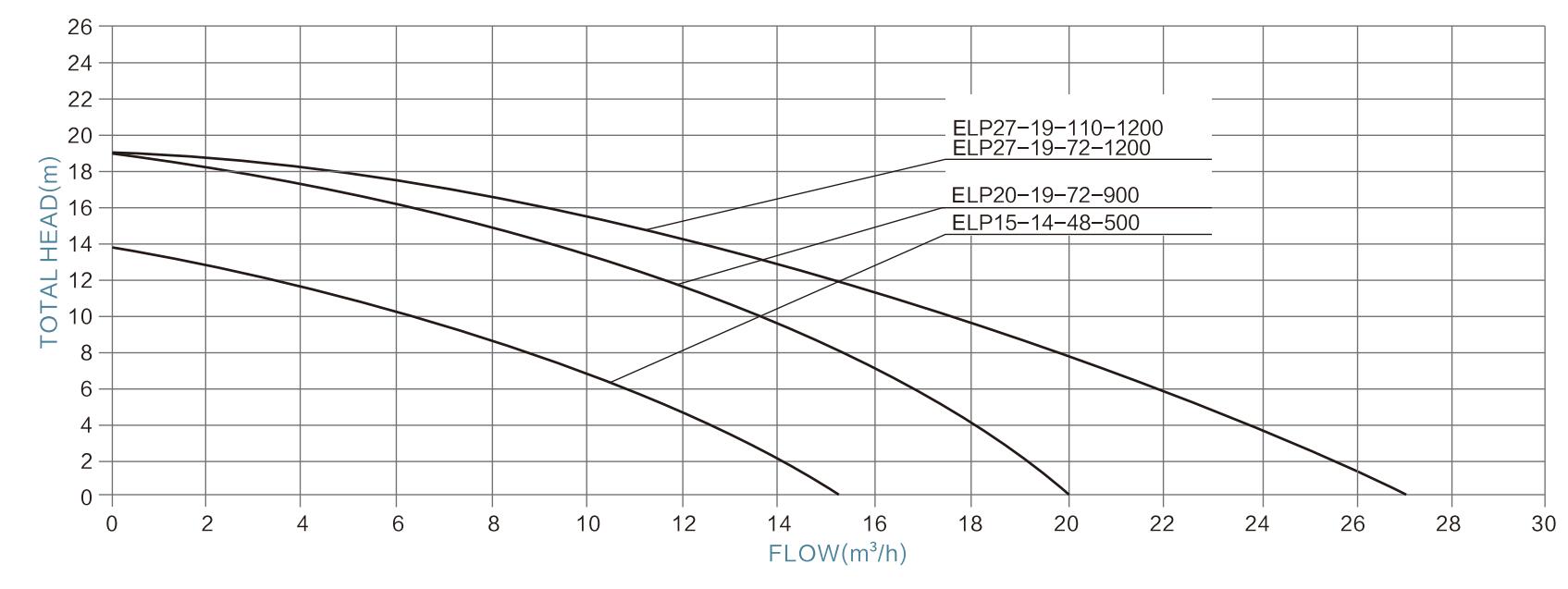

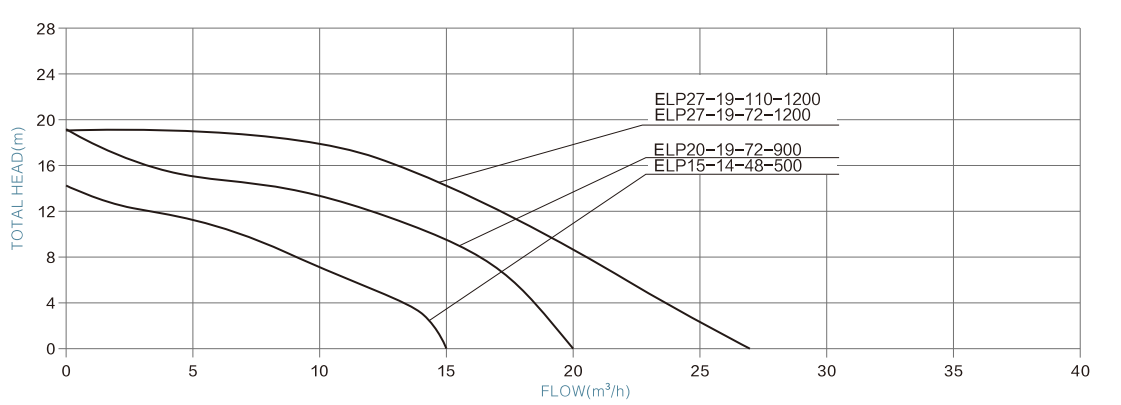

| ITEM | Voltage | Optimum input voltage (DC) | Power | Max. Flow | Max. Head | Outlet | Cable | Solar panel - Open circuit voltage(VOC) |
Solar panel - Power |
| ELP15-14-48-500 | 48V | 60V-90V | 500W | 15m³/h | 14m | 2×2" | 2m | <120V | ≥1.3*PUMP POWER |
| ELP20-19-72-900 | 72V | 90V-120V | 900W | 20m³/h | 19m | 2×2" | 2m | <170V | ≥1.3*PUMP POWER |
| ELP27-19-72-1200 | 72V | 90V-120V | 1200W | 27m³/h | 19m | 3×3" | 2m | <170V | ≥1.3*PUMP POWER |
| ELP27-19-110-1200 | 110V | 110V-150V | 1200W | 27m³/h | 19m | 3×3" | 2m | <220V | ≥1.3*PUMP POWER |
