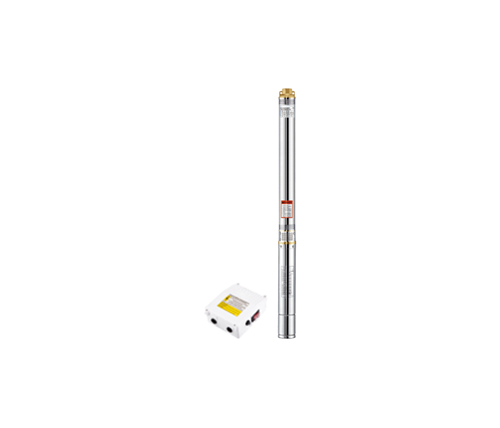

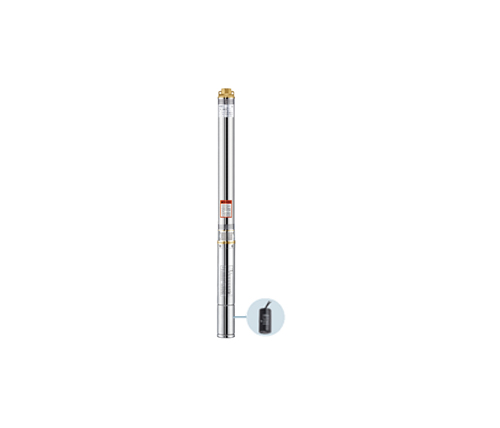

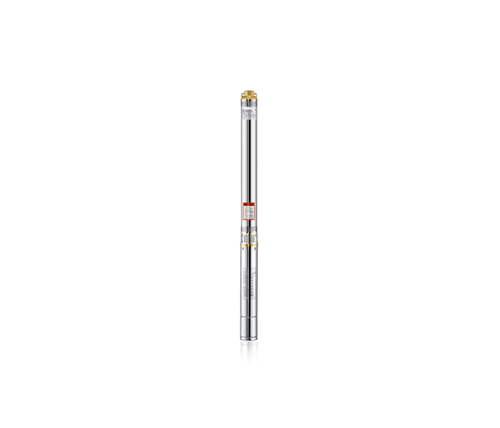

2SDM1 2" Borehole Single-phase Safe Submersible Pump for Domestic Use is specifically engineered for cross-border e-commerce platforms, ensuring that your product stands out among the competition.
1、Safe and reliable pump : Safety is a top priority, and this pump is designed with that in mind. It adheres to the highest safety standards, providing you with peace of mind. Its submersible design ensures that it operates quietly and efficiently, without causing any disruptions. Additionally, it is built to withstand harsh weather conditions, ensuring durability and longevity.
2、Single phase : Single-phase electricity is 220-240V/50Hz , which is more suitable for family residential use .
3、Motor and pump set as a whole, can dive into the water operation .
4、Operation Conditions :
Maximum fluid temperature up to +35℃
Maximum sand content : 0.25%
2SD(M) minimum well diameter : 2"
5、Rewindable motor is equipped with start control box or digital auto-control box .
6、Pumps are designed by casing stressed .
7、Curve tolerance according to ISO 9903 .
8、If you have extra request , you can choose other voltages or frequency 60Hz , single phase motor with built-in capacitor and special mechanical seal .
9、According to our general sales conditions , we ensure you have 2 years warranty.
|
Materials Table |
||
|
NO. |
Part |
Material |
|
1 |
Pump external casing |
AISI 304 SS |
|
2 |
Delivery casing |
Cast-Cu ASTM C85500 |
|
3 |
Suction lantern |
Cast-Cu ASTM C85500 |
|
4 |
Diffuser |
Plastic.PC |
|
5 |
Impeller |
Plastic.POM |
|
6 |
Pump shaft |
AISI 304 SS |
|
7 |
Shaft coupling |
AISI 304 SS |
|
8 |
Wear ring |
AISI 304 SS |
|
9 |
Motor external casing |
AISI 304 SS |
|
10 |
Oil chamber |
Cast-iron ASTM NO.30 |
|
11 |
Bottom support |
AISI 304 SS |
|
12 |
Mechanical Seal |
Special seal for deep well (Graphite-Ceramic/TC) |
|
13 |
Seal lubricant oil |
Oil for food machinery and pharmaceutic use |
|
14 |
Motor shaft |
AISI 303 SS-ASTM 5140 |
|

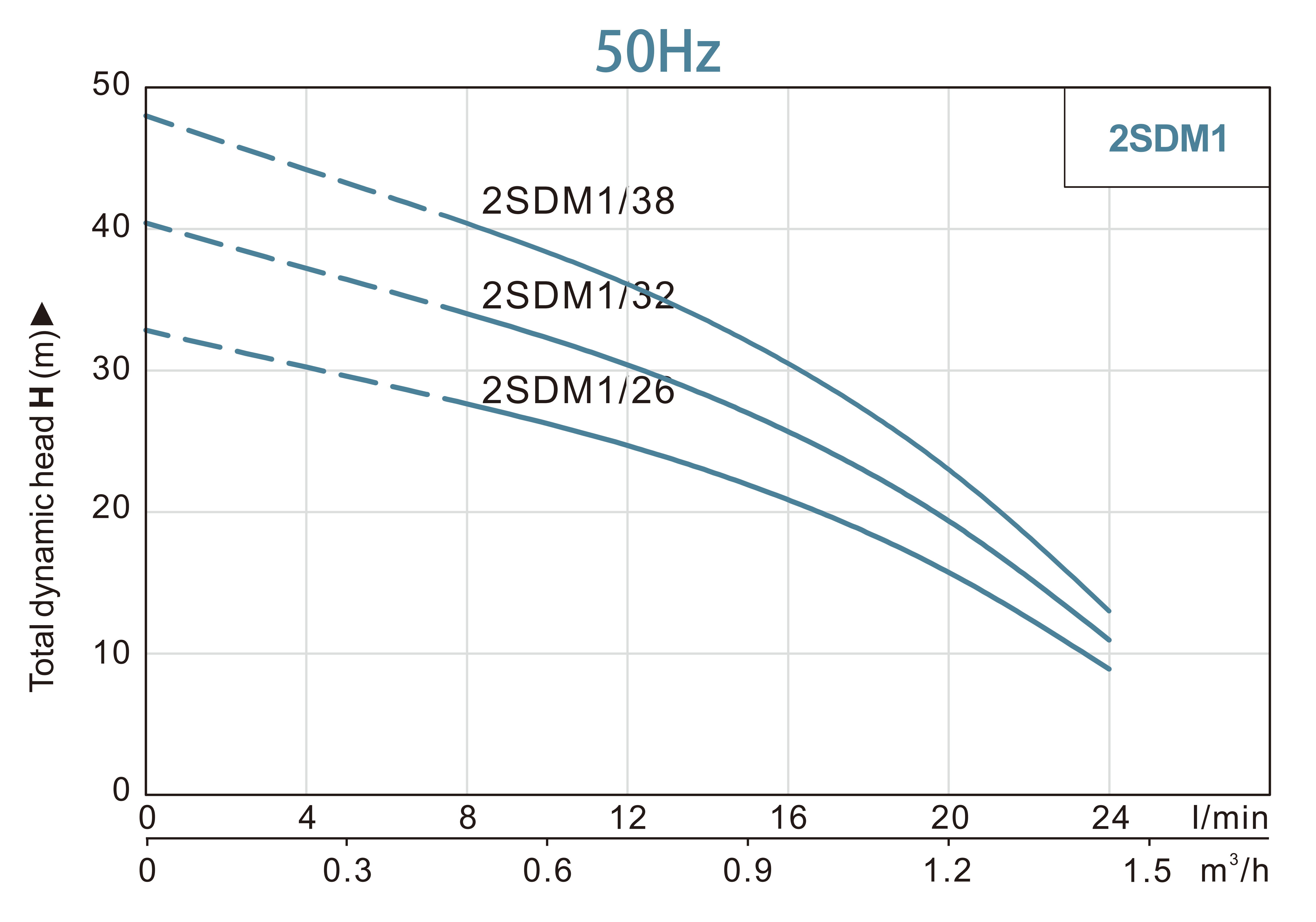

Model |
Power |
Delivery n≈2850r/min |
||||||||
|
1~220V-240V |
KW |
HP |
Q(m³/h) |
0 |
0.24 |
0.48 |
0.72 |
0.96 |
1.20 |
1.44 |
|
Q(l/min) |
0 |
4 |
8 |
12 |
16 |
20 |
24 |
|||
|
2SDM1/26 |
0.18 |
0.25 |
H(m) |
33 |
30 |
28 |
25 |
21 |
16 |
9 |
|
2SDM1/32 |
0.25 |
0.33 |
40 |
37 |
34 |
30 |
26 |
19 |
11 |
|
|
2SDM1/38 |
0.37 |
0.5 |
48 |
44 |
40 |
36 |
31 |
23 |
13 |
|
|

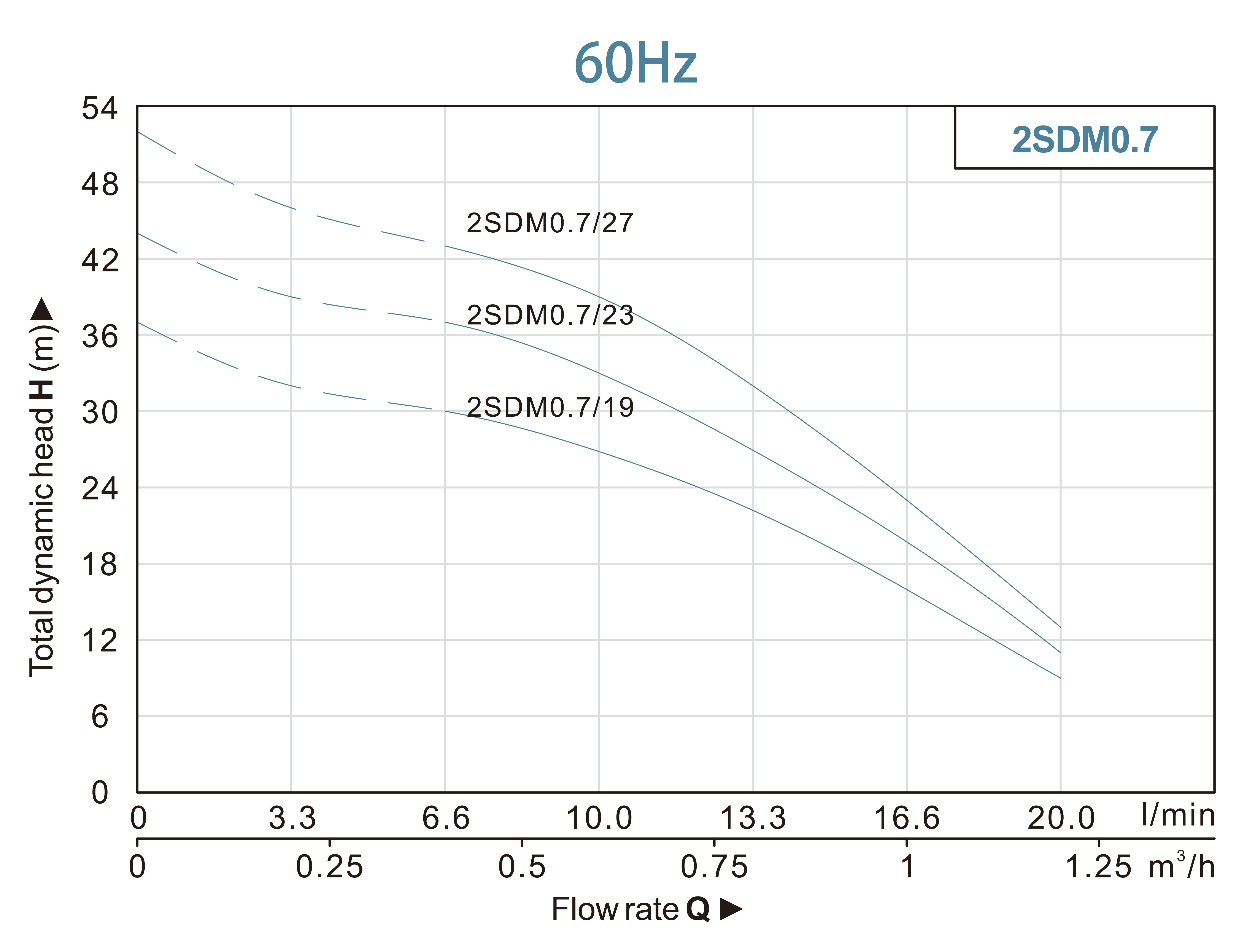

Model |
Power |
Delivery n≈3450r/min |
||||||||
|
1~110V/220V |
KW |
HP |
Q(m³/h) |
0 |
0.2 |
0.4 |
0.6 |
0.8 |
1.0 |
1.2 |
|
Q(l/min) |
0 |
3.3 |
6.6 |
10 |
13.3 |
16.6 |
20 |
|||
|
2SDM0.7/19 |
0.18 |
0.25 |
H(m) |
37 |
32 |
30 |
27 |
23 |
16 |
9 |
|
2SDM0.7/23 |
0.25 |
0.33 |
44 |
39 |
37 |
33 |
27 |
20 |
11 |
|
|
2SDM0.7/27 |
0.37 |
0.5 |
52 |
46 |
43 |
39 |
32 |
23 |
13 |
|
