Description :
DC brushless solar swimming pool surface pumps have a wide range of applications due to the efficiency and environmental benefits. These pumps are specifically designed to utilize solar energy, making them a sustainable choice for swimming pool owners. One of the main advantages of DC brushless solar swimming pool surface pumps is their energy efficiency. By utilizing solar power, they minimize electricity consumption and lower operational costs. Additionally, these pumps are equipped with brushless motors, which further enhance their efficiency and durability. Furthermore, DC brushless solar pumps can be used in various swimming pool applications. Whether it is for circulation, filtration, or water features, these pumps are capable of providing a reliable and consistent flow of water.
Key Features :
1、DC Brushless motor : The efficiency is improved 25% by the permanent magnetism, brushless dc non-sensor motor.
2、General electricity by the solar power , the solar surface pump offer great reliability when grid power is irregular or unavailable .
3、MPPT solar charge controller : Compared with other controllers, MPPT solar charge controllers can be up to 30% more efficient, depending on the battery and operating voltage (Vmp) of the solar panel .
4、Widely Applications ：It is suitable for long-distance transportation, hotel pressurization, pipeline pressurization, irrigation pressurization, urban water supply, etc
5、1 year warranty .
Free Spare Parts :

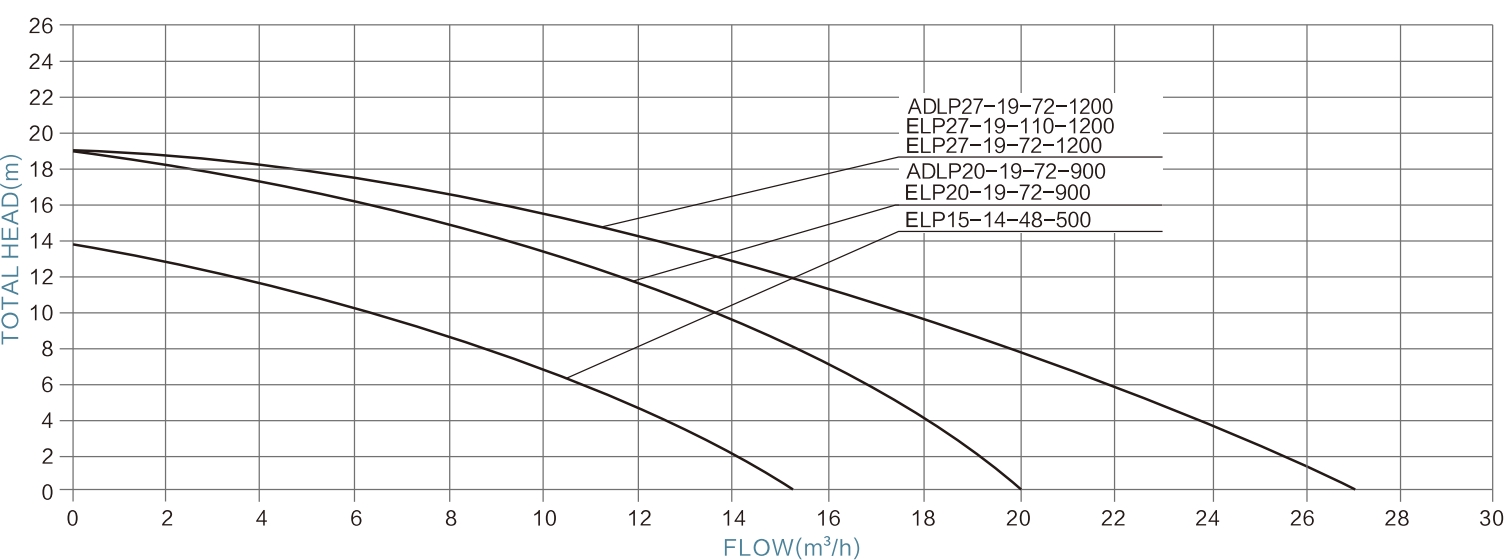

Performance Curves :
Technical Data：
| Model | Voltage | Optimum input Voltage (DC) | Power | Max. Flow | Max. Head | Outlet | cable |
| ELP15-14-48-500 | 48V | 60V-90V | 500W | 15m3/h | 14m | 2"x2" | 2m |
| ELP20-19-72-900 | 72V | 90V-120V | 900W | 20m3/h | 19m | 2"x2" | 2m |
| ELP27-19-72-1200 | 72V | 90V-120V | 1200W | 27m3/h | 19m | 3"x3" | 2m |
| ELP27-19-110-1200 | 110V | 110V-150V | 1200W | 27m3/h | 19m | 3"x3" | 2m |
