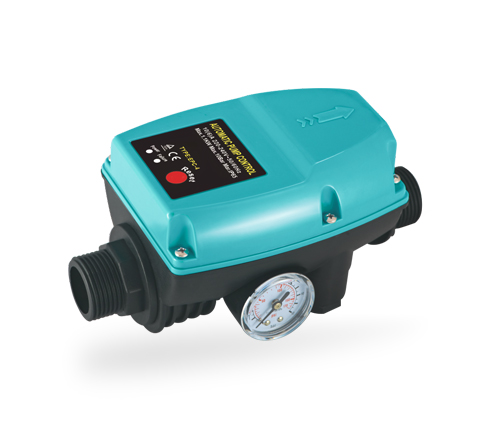

EPC-4 Series 550W to 1.1KW Close Nipple Rain-Proof Stable Pressure Switch Used in Water System

Starting pressure : 1.5bar - 3.0bar

Max. Rated Current : 10A

Max. Working Pressure : 10bar

Rated Voltage : 100V-120V or 220V-240V or 110V-240V

Frequency : 50/60Hz

Max. Ambient Temperature : 55℃

Protection degree : IP65

PREV：EPC-3(P) Series IP65 High Strength Protection G1" Male Screw Customization Automatical Pressure Switch
NEXT：EPC-5 Series Temperature-resistant Anticorrosive Automatical Pressure Switch for Water System

Description
Components
Curves
Performance Data
Contact Us

Description :

The EPC-4 Series 0.55KW-1.1KW Close Nipple Rain-Proof Stable Pressure Switch is a specialized pressure switch designed for water systems. This pressure switch is specifically designed to provide stable pressure control and rain-proof protection in water system applications.The EPC-4 Series 0.55KW-1.1KW Close Nipple Rain-Proof Stable Pressure Switch is a reliable and durable pressure switch designed for water system applications. With its stable pressure control, rain-proof protection, and compatibility with a range of motor powers, it ensures consistent and reliable water supply in various residential, commercial, and agricultural settings.

Key Features :

1、The EPC-4 Series pressure switch is commonly used in residential, commercial, and agricultural settings where stable pressure control is required. It is designed to ensure reliable operation and consistent water supply.
2、The pressure switch is compatible with motor power ranging from 0.55KW to 1.1KW, making it suitable for a range of water system setups. It is designed to provide accurate pressure control for optimal performance of the water system.
3、The EPC-4 Series pressure switch features a close nipple design, which allows for easy installation and integration into water systems. This design ensures a secure and leak-proof connection between the pressure switch and the water system.
4、The pressure switch is rain-proof, providing protection against water ingress and ensuring reliable operation even in outdoor environments. This rain-proof feature enhances the durability and longevity of the pressure switch.
5、The EPC-4 Series pressure switch is designed for stable pressure control, preventing fluctuations and ensuring consistent water supply. It is built with high-quality materials to withstand the demands of water system applications and provide reliable performance over time.
6、Electric switch used in water systems.
7、It starts the electric pump automatically after a pressure decrease (taps opening) and stops it when the fluid flow interrupts at the maximum pressure level of the electric pump (taps closed).
8、Joint screw: G1” male
9、Completely replaced traditional pump control system composed of pressure switch, pressure tank and check valve, etc.
10、Stop the water pump in the case of water shortage.
11、Customized setting.
12、 1 year warranty.

Optionals :

-Color: Customizable according to customer requirements.
-G1" plastic pipe joint allows for quick connection to water pump.
-Power cable length can be customized based on customer needs.
-Starting pressure can be adjusted during installation with a range of 1.2 to 3.0 bar.

Technical Parameters :

Rated voltage	220-240V	110-120V	110-240V
Power Frequency	50/60HZ	50/60HZ	50/60HZ
Max using current	10A	10A	10A
Max power	1.1KW/2.2KW	0.55KW/1.1KW	1.1KW/2.2KW
Starting pressure setting	1.2bar ; 1.5bar ; 2.2bar	1.2bar ; 1.5bar ; 2.2bar	1.2bar ; 1.5bar ; 2.2bar
Max working pressure	10bar	10bar	10bar
Connection thread	G1”	G1”	G1"
Protection rating	IP65	IP65	IP65
Max working temperature	55℃	55℃	55℃
