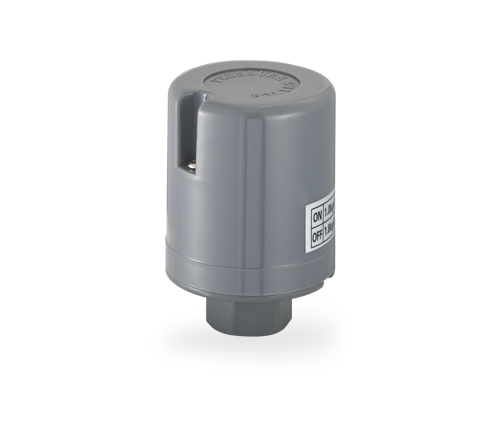

The ERS-2 Series Pressure Switch is a specialized pressure switch designed for water pumps. This pressure switch features a waterproof design and is equipped with a source nipple for easy installation and connection. The ERS-2 Series Pressure Switch is a reliable and easy-to-install pressure switch designed for water pumps. With its waterproof design and source nipple, it ensures accurate pressure monitoring and durability in water pump systems.
1、The pressure switch is responsible for monitoring the pressure in the water pump system. When the pressure drops below a certain threshold, the switch will activate the pump to start and restore the desired pressure. Once the pressure reaches the desired level, the switch will deactivate the pump, preventing over-pressurization and potential damage.
2、The ERS-2 Series pressure switch is commonly used in water pump systems for various applications, including residential, commercial, and industrial settings.
3、The switch start and stop the water pump automatically according to the setting pressure.
4、Hydraulics connection can choose : 1/4" Male & 3/8" Female.
5、Customized setting.
6、1 year warranty
Hydraulics connection according to customers’ needs.
Pressure setting according to customers’ needs.
|
Rated Voltage |
110V-240V |
|
|
Power Frequency |
50/60Hz |
|
|
Rated Current |
4A ; 10A |
|
|
Min.cut-in |
0.5Bar |
|
|
Max.cut-out |
3.5bar |
|
|
Protection Rating |
IP20 |
|
|
Max. working Temperature |
55℃ |
|
|
Pressure Range |
1.0-3.0BAR (According To Requirements Of Customers ) |
|
|
Bases |
Zin Alloy |
Plastic |
|
Contacts |
Double |
Single;double |
|
Screw Type |
Female |
Male |
|
Screw Size |
1/4"3/8" |
1/4" |
