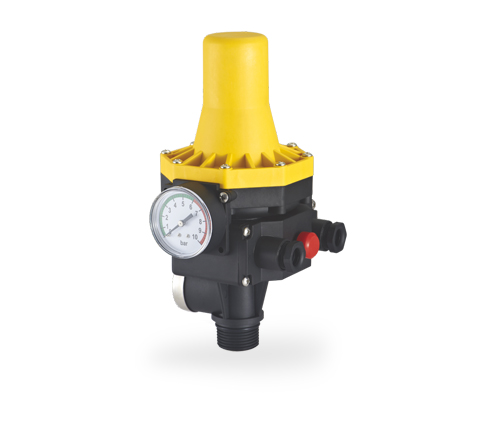

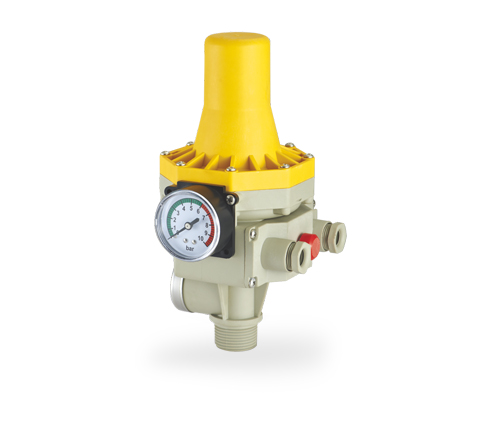

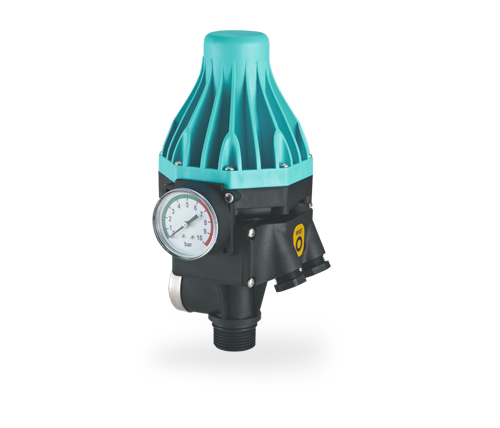

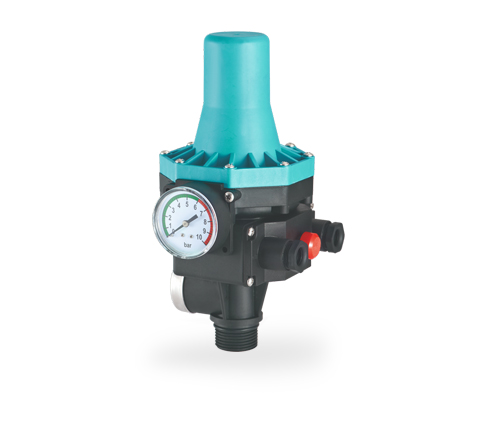

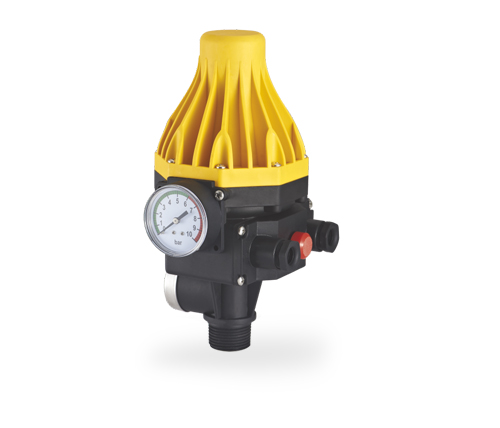

EPC-3(P) Series IP65 High Strength Protection G1" Male Screw Customization Automatical Pressure Switch

Starting pressure : 1.2bar - 3.0bar

Max. Rated Current : 10A/30A

Max. Working Pressure : 10bar

Rated Voltage : 100V-120V or 220V-240V or 110V-240V

Frequency : 50/60Hz

Max. Ambient Temperature : 55℃

Protection degree : IP65

PREV：EPC-2.1 Series 1.2Bar to 3.0Bar IP65 Protection R1" Connection Thread Pressure Switch for Water Pump
NEXT：EPC-4 Series 550W to 1.1KW Close Nipple Rain-Proof Stable Pressure Switch Used in Water System

Description
Components
Curves
Performance Data
Contact Us

Description :

The EPC-3 Series IP65 High Strength Protection G1" Male Screw Customization Automatic Pressure Switch is a specialized pressure switch designed for various applications. This pressure switch is specifically designed to provide high-strength protection, customization options, and automatic pressure control.

Key Features :

1、The EPC-3 Series pressure switch is commonly used in industrial, commercial, and residential settings where accurate pressure control is required. It is designed to ensure reliable operation and durability in demanding environments.
2、The pressure switch features an IP65 protection rating, which means it is highly resistant to dust and water ingress. This rating ensures the switch's performance and longevity, even in harsh conditions.
3、The EPC-3 Series pressure switch is equipped with a G1" male screw connection, allowing for easy installation and integration into various systems. This standardized thread size ensures compatibility with a wide range of applications.
4、Customization options are available for the EPC-3 Series pressure switch, allowing users to tailor the switch to their specific needs. This customization may include pressure range adjustments, electrical specifications, or other modifications to suit the application requirements.
5、The pressure switch is responsible for monitoring the pressure in the system. When the pressure reaches a certain threshold, the switch will automatically activate or deactivate the connected equipment, ensuring optimal performance and preventing damage caused by over-pressurization.
6、The EPC-3 Series pressure switch is designed with high-strength materials to withstand the demands of different applications. It is built to provide accurate pressure control and reliable operation for extended periods.
7、Electric switch used in water systems.
8、Automatically starts the electric pump upon pressure decrease when the taps are opened, and stops it when the fluid flow is interrupted at the maximum pressure level of the pump when taps are closed.
9、Joint screw size: G1” male
10、Automatically shuts off the water pump in case of water shortage.
11、Offers customizable settings.
12、Replaces traditional pump control systems consisting of pressure switches, pressure tanks, and check valves.
13、Comes with a one-year warranty.

Optionals :

-Color: As per customers' requirements.
-G1" plastic pipe joint for easy and quick connection to the water pump.
-Power cable length can be customized to meet customers' needs.
-The starting pressure is adjustable during installation, with an adjustment range of 1.2 bar to 3.0 bar.

Technical Parameters :

Rated voltage	220-240V	110-120V	110-240V
Power Frequency	50/60HZ	50/60HZ	50/60HZ
Max using current	10A/30A	10A/30A	10A/30A
Max power	1.1KW/2.2KW	0.55KW/1.1KW	1.1KW/2.2KW
Starting pressure setting	1.2bar ; 1.5bar ; 2.2bar	1.2bar ; 1.5bar ; 2.2bar	1.2bar ; 1.5bar ; 2.2bar
Max working pressure	10bar	10bar	10bar
Connection thread	G1”	G1”	G1"
Protection rating	IP65	IP65	IP65
Max working temperature	55℃	55℃	55℃
