Antirust treatment
Copper winding
Thermal protector
C&U Bearing

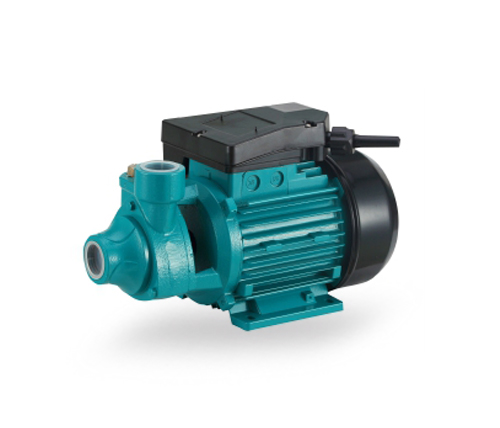

PM series vortex perepheral pump can be used to transfer clean water or other liquids similar to water in physical and chemical properties . It is suitable for small living water supply, automatic water sprinkler system, small air conditioner system or supporting equipment,etc .
Cast iron pump body and support under special antirust treatment
Rust-free copper inserts prevent impeller's block when starting after the pump is unused for a long time
Brass impeller
AIS1304 shaft
Max. liquid temperature: +60°C
Max. suction: +8m
C&U bearing
Motor with copper winding
Built-in thermal protector for single phase motor
Insulation class: F
Protection class: lP44
Max. ambient temperature: +40°C
|

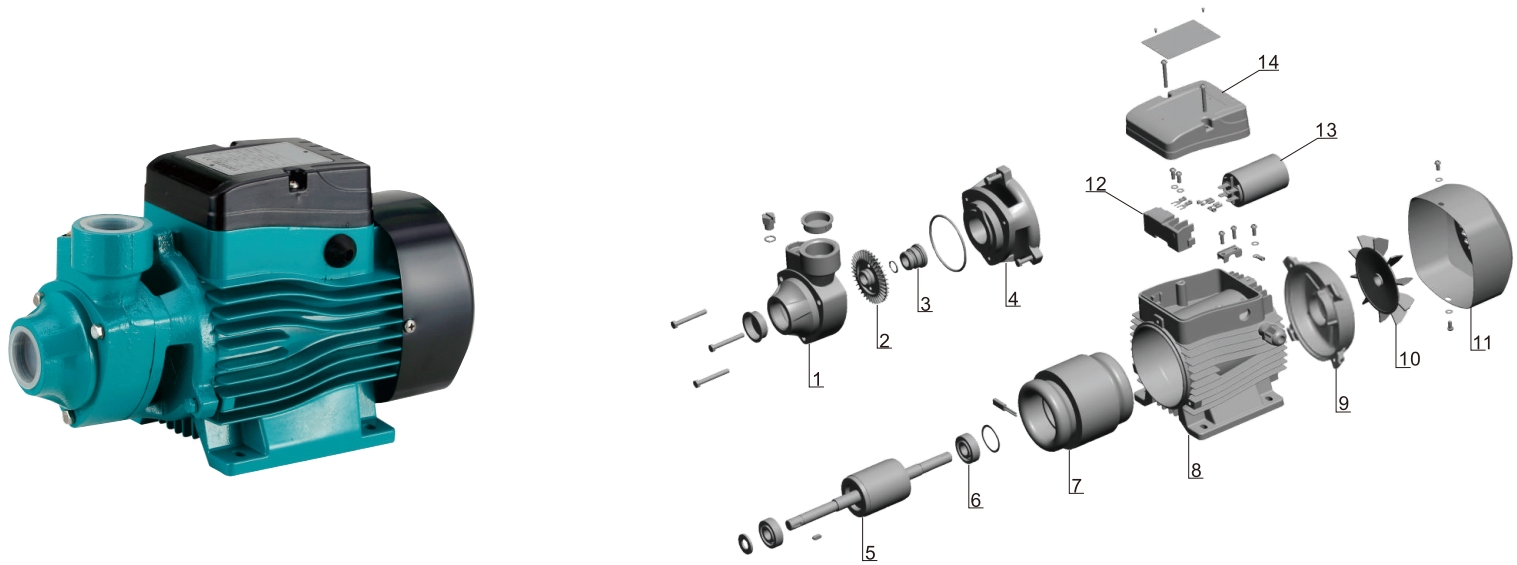

NO. |
Part |
Material |
|
1 |
Pump body |
HT200 |
|
2 |
Impeller |
Brass |
|
3 |
Mechanical seal |
Carbon/Ceramic |
|
4 |
Support |
HT200 |
|
5 |
Shaft and Rotor |
|
|
6 |
Ball bearing |
|
|
7 |
Stator |
|
|
8 |
Motor case |
Aluminum |
|
9 |
Motor cover |
Cast iron |
|
10 |
Fan |
PP |
|
11 |
Fan cover |
|
|
12 |
Terminal Board |
|
|
13 |
Capacitor |
|
|
14 |
Terminal cover |
|
Model |
Power |
Inlet / Outlet |
Max. Flow |
Max. Head |
Max. Suction |
|
|
kW |
HP |
(L/min) |
(M) |
(M) |
||
|
PM45 |
0.37 |
0.5 |
1" x 1" |
35 |
40 |
8 |
|
PM80 |
0.75 |
1.0 |
1" x 1" |
50 |
65 |
8 |
