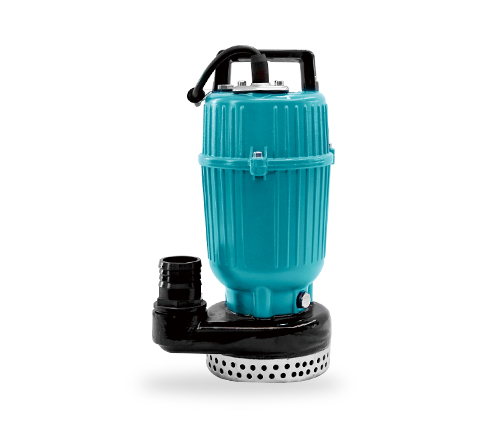

Small electrical irrigation and drainage equipments
Particularly applied in urban well water pumping,
field irrigation and drainage,garden irrigation and household water supply,
as well as drainage of industrial accumulated water,
water supply and drainage for construction livestock breeding, etc
Max immersion depth : 5m
Max liquid temperature : +40℃
Copper winding
Built-in thermal protector
Insulation class : B
Protection class : IPX8
Float switch
Other voltages or frequency
|

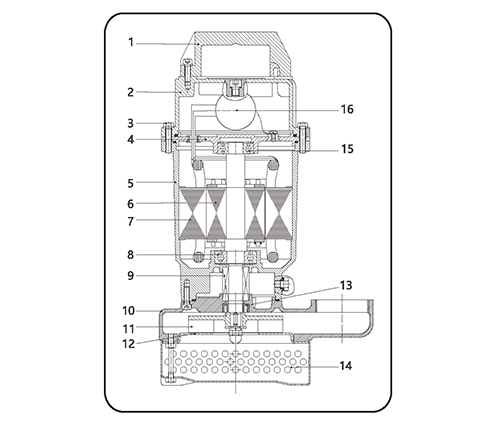

NO. |
NAME |
MATERIAL/SPEC. |
|
1 |
Handle |
ABS |
|
2 |
Capacitor Cover |
ZL102 |
|
3 |
Screw |
Stainless steel |
|
4 |
Upper Cover |
ZL102 |
|
5 |
Connecting Base |
ZL102 |
|
6 |
Rotor |
45#Carbon steel & 2Cr13 Stainless |
|
7 |
Stator |
ZL102 (Motor casing) |
|
8 |
Bearing |
|
|
9 |
Mechanical Seal |
Ceramic/Graphite |
|
10 |
Pump body |
HT200 |
|
11 |
Impeller |
HT200 |
|
12 |
Pump Cover |
Q235 |
|
13 |
Oil Seal |
|
|
14 |
Filter Mesh |
Q235 |
|
15 |
Bearing |
|
|
16 |
Capacitor |
|
|
17 |
Float Switch(optional) |
|
|
18 |
Cable Protector |
Rubber |
