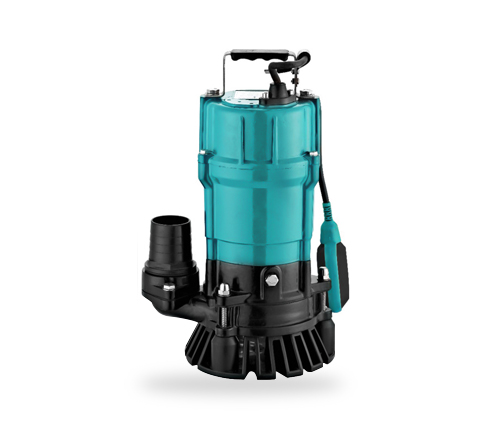

The SPA-B Series 220V Double Mechanical Seal Submersible Pump is a reliable and efficient solution for all your electrical irrigation and drainage needs. This high-quality pump is specifically designed for small-scale applications, making it perfect for small electrical irrigation and drainage equipments.
With its exceptional performance, the SPAB Series pump is particularly well-suited for urban well water pumping, field irrigation, and drainage tasks. Whether you need to maintain a lush garden or efficiently manage water levels in your agricultural fields, this pump will deliver outstanding results every time.
Built to last, the SPA-B Series pump features a durable copper winding that ensures long-lasting performance and reliability.Additionally, it is equipped with a built-in thermal protector, providing an added layer of safety and peace of mind.
Invest in the SPA-B Series 220V Double Mechanical Seal Submersible Pump and experience the convenience and efficiency it brings to your irrigation and drainage projects. With its professional-grade quality and exceptional features, this pump is the ideal choice for those seeking a reliable and high-performing solution.
Max: immersion depth : 5m
Max: liquid temperature : +40℃
Insulation class : B
Protection class : IPX8
Float switch
Other voltages or frequency
(according to our general sales conditions)
|

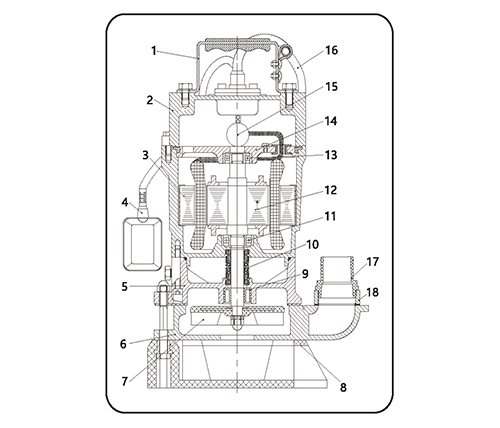

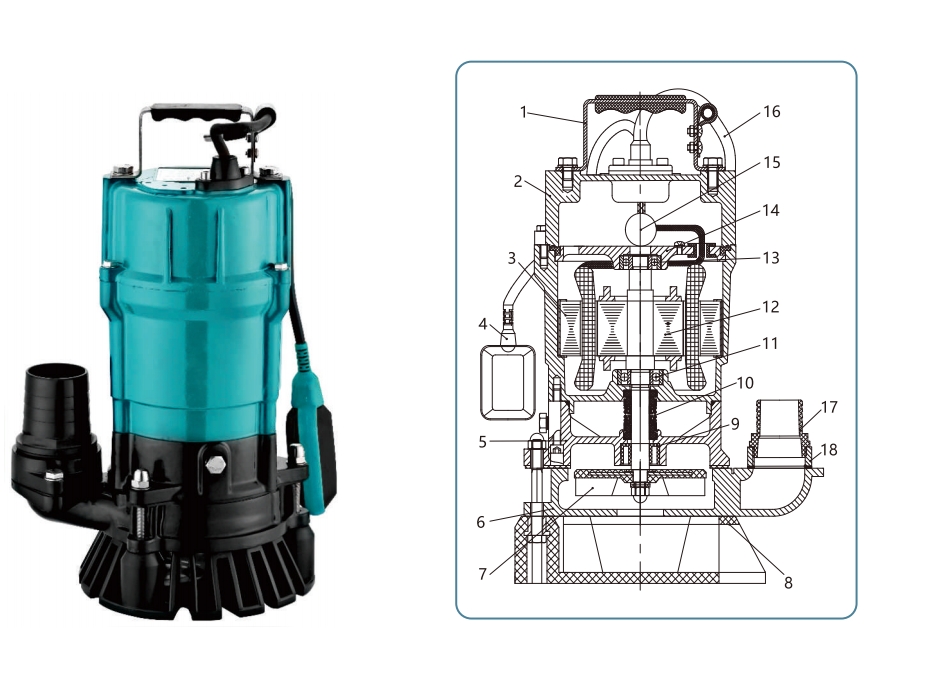

NO. |
NAME |
MATERIAL/SPEC. |
|
1 |
Handle |
AISI201 |
|
2 |
Capacitor Cover |
ZL102 |
|
3 |
Motor |
ZL102 (Motor casing) |
|
4 |
Float Switch(optional) |
|
|
5 |
Connecting Base |
HT200 |
|
6 |
Pump body |
HT200 |
|
7 |
Impeller |
PP |
|
8 |
Filter mesh |
PVC |
|
9 |
Oil seal |
NBR |
|
10 |
Double Mechanical Seal |
NBR |
|
11 |
Bearing |
6204-2RZ |
|
12 |
Rotor |
45#Carbon steel |
|
13 |
Bearing |
6204-2RZ |
|
14 |
Upper cover |
ZL102 |
|
15 |
Capacitor |
|
|
16 |
Cable components |
6203-2RZ |
|
17 |
Out-let connector |
ABS (SPA500B-G2;SPA750B-G2½) |
|
18 |
Flange connector |
HT200 |
