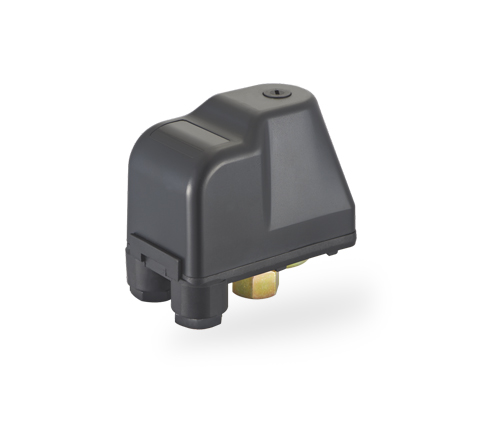

A pressure switch is utilized within water systems to automatically activate and deactivate the water pump based on predetermined pressure settings. Hydraulic connections are available in 1/4" Male and 1/4" 3/8" Female options, along with customizable settings.The ERS-5 Series Zinc Alloy Bottom Antifatigue Pressure Switch is a specialized pressure switch designed for water pumps. This pressure switch is specifically designed to be mounted at the bottom of the pump and is made of a durable zinc alloy material.
Key Features :
1、The ERS-5 Series pressure switch is designed to withstand the rigors of water pump operation, including exposure to water and pressure fluctuations. The zinc alloy construction ensures durability and resistance to corrosion, extending the lifespan of the pressure switch.
2、The antifatigue feature of the pressure switch ensures reliable and consistent performance over time. It is designed to handle repeated cycles of pressure changes without experiencing fatigue or degradation in performance.
3、The pressure switch is responsible for monitoring the pressure in the water pump system. When the pressure drops below a certain threshold, the switch will activate the pump to start and restore the desired pressure. Once the pressure reaches the desired level, the switch will deactivate the pump, preventing over-pressurization and potential damage.
4、The ERS-5 Series pressure switch is commonly used in water pump systems for various applications, including residential, commercial, and industrial settings.

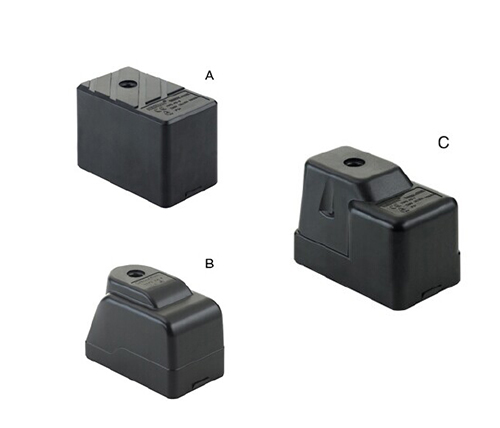

5、EDWIN offers options of crust,hydraulics connection,pressure setting according to customer's needs.
6、1 year warranty.
Technical Data :
|
Rated Voltage |
110-240V / 400V |
|
|
Power Frequency |
50/60HZ |
|
|
Rated Current |
16(8)A |
|
|
Min.cut-in |
15PSI |
|
|
Max.cut-out |
100PSI |
|
|
Pressure Range |
20-40PSI,30-50PSI,40-60PSI |
|
|
Cover Color |
Black |
|
|
Protection Class |
IP44 |
|
|
Max. Working Temperature |
55℃ |
|
|
Screw Type |
Female |
Male |
|
Screw Size |
1/4" 3/8" |
1/4" |
EDWIN PUMP is a professional China borewell pumps manufacturers and deep well pumps factory, which supply a wide range of water pumps and water treatment peripheral products to customers around the world.
Our factory mainly produce three types of pumps: deep well pumps, sewage submersible pumps and household borewell pumps. At the same time, when customers have demand, we also provide customers with other related water treatment products by a professional working team from the company.
