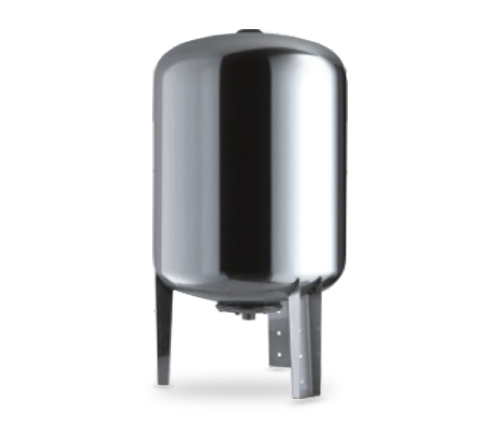

1 Inch Connector
Stainless Steel
Water Pressure Tank
for Heating System
Introducing the STVT Series, a line of premium stainless steel water pressure tanks designed specifically for heating systems. Our 1 Inch Connector model is engineered to provide exceptional durability, reliability, and performance, ensuring the smooth operation of your heating system.
Reach the goal of energy conservation and emission reduction;
Extend the pump life by reducing the operating frequency;
Protect against heat expansion damage to pump body;
Protect against water hammer damage to pump body and impeller;
Reduce the noise from unnecessary pump start and stop times;
Eliminate motor burn outs by reducing the operating frequency;
*If request, the pressure gauge is available!
Replaceable membrane pressure tanks stainless steel.
Working temperature:
Butyl: -10℃ / 99℃
Epdm: -10℃ / 99℃
Natural rubber: 0℃ / 77℃
|
Model |
Max. pressure |
Diameter |
Height |
Precharge Pressure |
Connector |
Packing |
|
bar |
mm |
mm |
bar |
CBM |
||
|
STVT36L |
6; 8; 10 |
350 |
550 |
1.5 |
1" |
0.06738 |
|
STVT50L |
6; 8; 10 |
350 |
660 |
1.5 |
1" |
0.0833 |
|
STVT60L |
6; 8; 10 |
380 |
795 |
1.5 |
1" |
0.13163 |
|
STVT80L |
6; 8; 10 |
450 |
740 |
1.5 |
1" |
0.1539 |
|
STVT100L |
6; 8; 10 |
450 |
825 |
1.5 |
1" |
0.1701 |
