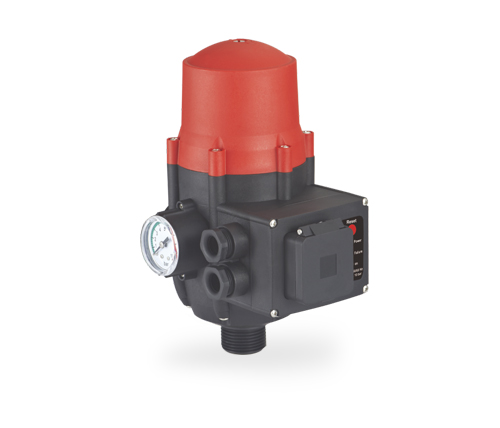

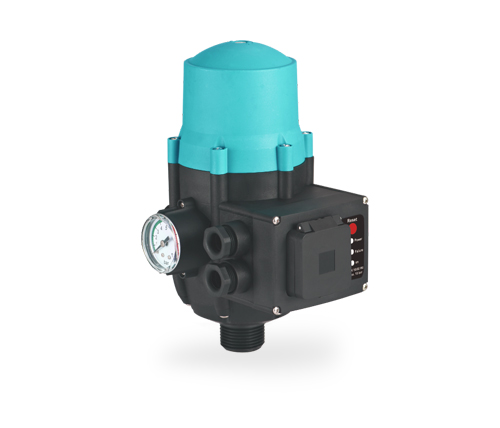

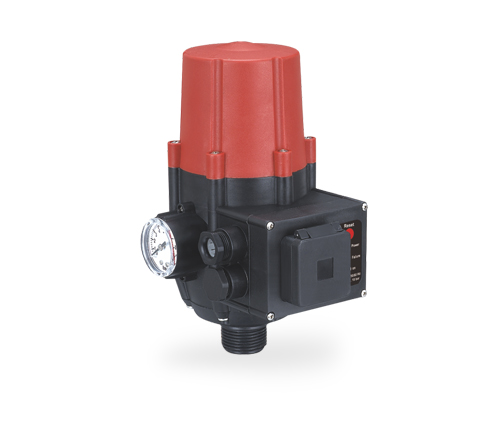

EPC-2.1 Series 1.2Bar to 3.0Bar IP65 Protection R1" Connection Thread Pressure Switch for Water Pump

Starting pressure : 1.2bar - 3.0bar

Max. Rated Current : 10A

Max. Working Pressure : 10bar

Rated Voltage : 100V-120V or 220V-240V or 110V-240V

Frequency : 50/60Hz

Max. Ambient Temperature : 55℃

Protection degree : IP65

PREV：EPC-2 Series 110V-240V 10A IP65 Lack Water Protection Hydraulic Automatic Pressure Switch for Water System
NEXT：EPC-3(P) Series IP65 High Strength Protection G1" Male Screw Customization Automatical Pressure Switch

Description
Components
Curves
Performance Data
Contact Us

Description :

The EPC-2.1 Series 1.2-3.0Bar IP65 Protection R1" Connection Thread Pressure Switch is a specialized pressure switch designed for water pump applications. This pressure switch is specifically designed to provide accurate pressure control and reliable operation in water pump systems. The EPC-2.1 Series 1.2-3.0Bar IP65 Protection R1" Connection Thread Pressure Switch is a reliable and efficient pressure switch designed for water pump applications. With its accurate pressure control, IP65 protection rating, and convenient connection thread, it ensures consistent and reliable water supply in various residential, commercial, and agricultural settings.

Key Features :

1、The EPC-2.1 Series pressure switch is commonly used in residential, commercial, and agricultural settings where water pumps are utilized. It is designed to ensure efficient and consistent water supply.
2、The pressure switch is responsible for monitoring the pressure in the water system. It is designed to operate within a pressure range of 1.2 to 3.0 bar, allowing for precise control of the water pump operation.
3、The EPC-2.1 Series pressure switch features an IP65 protection rating, which means it is protected against dust and water ingress. This rating ensures the durability and reliability of the pressure switch, even in challenging environments.
4、The pressure switch is equipped with an R1" connection thread, which allows for easy installation and integration into water pump systems. This standardized thread size ensures compatibility with a wide range of water pump setups.
5、The EPC-2.1 Series pressure switch is designed for long-lasting performance and durability. It is built to withstand the demands of water pump applications and provide accurate pressure control for reliable water supply.

Optionals :

-Color : As customers' require
-G1” Plastic pipe joint for a quick connection to water pump.
-Power cable length can choose according to customers’needs.
-Staring pressure is adjustable during installation , adjustment range :1.2bar - 3.0bar

Technical Parameters :

Rated voltage	220-240V	110-120V	110-240V
Power Frequency	50/60HZ	50/60HZ	50/60HZ
Max using current	10A	10A	10A
Max power	1.1KW	0.55KW	1.1KW
Starting pressure setting	1.2bar ; 1.5bar ; 2.2bar	1.2bar ; 1.5bar ; 2.2bar	1.2bar ; 1.5bar ; 2.2bar
Max working pressure	10bar	10bar	10bar
Connection thread	R1”	R1”	R1"
Protection rating	IP65	IP65	IP65
Max working temperature	55℃	55℃	55℃
