Description :

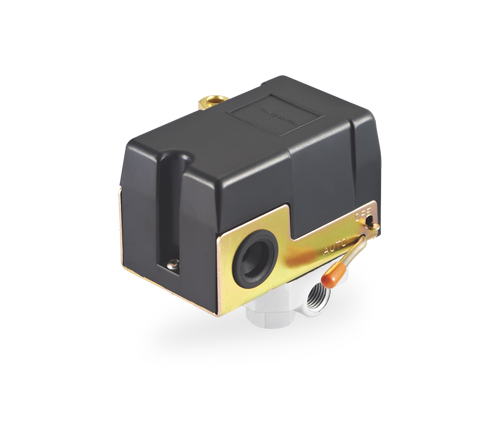

The ERQ-1 Air-relief Customized Setting Series Pressure Switch is a specialized pressure switch designed for air compressors. This pressure switch is specifically designed to control the pressure levels in air compressor systems and features an air-relief function and customizable settings.
Key Features :
1、The ERQ-1 Series pressure switch is equipped with an air-relief function, which allows for the release of excess air pressure from the compressor system. This feature helps to prevent over-pressurization and potential damage to the compressor or connected equipment.
2、The pressure switch also offers customizable settings, allowing users to adjust the pressure thresholds at which the switch activates or deactivates the compressor. This customization ensures precise pressure control and allows for fine-tuning to match specific requirements.
3、The pressure switch is responsible for monitoring the pressure in the air compressor system. When the pressure reaches a certain threshold, the switch will activate the compressor to maintain or restore the desired pressure. Once the pressure reaches the set level, the switch will deactivate the compressor, preventing over-pressurization.
4、The ERQ-1 Series pressure switch is commonly used in air compressor applications, including industrial settings, workshops, and automotive repair shops.
5、1 year warranty.
Technical Data :
-Pressure Range : 20-175psi
-Pressure Setting : 20-50psi、30-60psi、40-70psi、50-80psi、95-125psi、135-175psi-Rated Current : 12A
-Rated Voltage : 110V-240V
-Frequency : 50/60Hz
-Max Ambient Temperature : 40°C
-Protection Degree : IP20
Options :
-Crust according to customers’ needs.
-Hydraulics connection according to customer's needs
-Air-relief valve of 6mm or 1/4diameter pipe.
-Pressure setting according to customer's needs.
