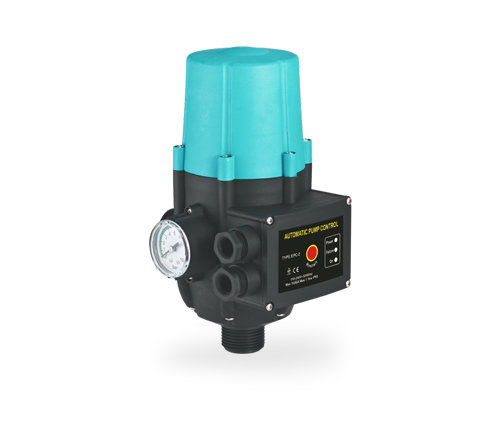

EPC-2 Series 110V-240V 10A IP65 Lack Water Protection Hydraulic Automatic Pressure Switch for Water System

Starting pressure : 1.2bar - 3.0bar

Max. Rated Current : 10A

Max. Allowable Pressure : 10bar

Rated Voltage : 100V-120V or 220V-240V or 110V-240V

Frequency : 50/60Hz

Max. Ambient Temperature : 55℃

Protection degree : IP65
Lack Water Protection
Hydraulic Automatic Pressure Switch
for Water System

PREV：EPC-1.1 Series Start and Stop Automatically Pressure Switch Used in Water Pumps
NEXT：EPC-2.1 Series 1.2Bar to 3.0Bar IP65 Protection R1" Connection Thread Pressure Switch for Water Pump

Description
Components
Curves
Performance Data
Contact Us

Description :

The EPC-2 Series 110V-240V 10A IP65 Lack Water Protection Hydraulic Automatic Pressure Switch is a specialized pressure switch designed for hydraulic systems. This pressure switch is specifically designed to provide automatic lack water protection and is suitable for use with electrical systems ranging from 110V to 240V.

Key Features :

1、The EPC-2 Series pressure switch is commonly used in hydraulic systems, including industrial and commercial applications. It is designed to provide reliable and efficient operation of hydraulic equipment.
2、The lack water protection feature of the pressure switch ensures that the system is protected in case of insufficient water supply. When the water level drops below a certain threshold, the switch will automatically shut off the hydraulic system to prevent damage caused by running the equipment without proper water supply.
3、The pressure switch is responsible for monitoring the pressure in the hydraulic system. When the pressure drops below a certain threshold, indicating a possible lack of water, the switch will automatically shut off the system to prevent any further damage.
4、The EPC-2 Series pressure switch is IP65 rated, which means it is protected against dust and water ingress. This rating ensures the durability and reliability of the pressure switch in harsh environments.
5、The pressure switch is designed for easy installation and integration into hydraulic systems. It is built to withstand the demands of hydraulic applications and provide accurate pressure control.
6、Electric switch used in water systems.
7、It starts the electric pump automatically after a pressure decrease (taps opening) and stops it when the fluid flow interrupts at the maximum pressure level of the electric pump (taps closed).
8、Joint screw: Inlet G1” male, outlet G1” female.
9、Completely replaced traditional pump control system composed of pressure switch, pressure tank and check valve, etc.
10、Stop the water pump in the case of water shortage.
11、Customized setting.

Optionals :

-Color : As customers' require
-G1” Plastic pipe joint for a quick connection -to water pump.
-Power cable length can choose according to customers’ needs.

Technical Data :

Rated voltage	220-240V	110-120V	110-240V
Power Frequency	50/60HZ	50/60HZ	50/60HZ
Max using current	10A	10A	10A
Max power	1.1KW	0.55KW	1.1KW
Starting pressure setting	1.2bar ; 1.5bar ; 2.2bar	1.2bar ; 1.5bar ; 2.2bar	1.2bar ; 1.5bar ; 2.2bar
Max working pressure	10bar	10bar	10bar
Connection thread	R1”	R1”	R1"
Protection rating	IP65	IP65	IP65
Max working temperature	55℃	55℃	55℃
