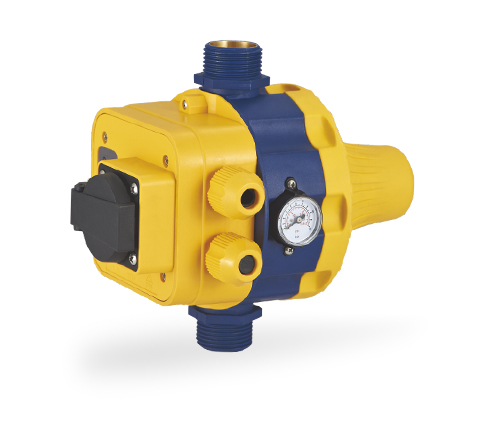

EPC-5.1 Series Low Noise Easy Operation Automatic Pressure Switch for Water Pumps

Starting pressure : 1.2bar - 3.0bar

Max. Rated Current : 10A

Max. Working Pressure : 10bar

Rated Voltage : 100V-120V or 220V-240V or 110V-240V

Frequency : 50/60Hz

Max. Ambient Temperature : 55℃

Protection degree : IP54

Low Noise

Easy Operation

Automatic Pressure Switch

for Water Pumps

PREV：EPC-5 Series Temperature-resistant Anticorrosive Automatical Pressure Switch for Water System
NEXT：EPC-7 Series 30A 100V to 240V Dry-running Protection Automatic Pressure Switch Used in Water System

Description
Components
Curves
Performance Data
Contact Us

Description :

The EPC-5.1 Series Low Noise Easy Operation Automatic Pressure Switch is specifically designed for water pumps. It is built to provide efficient and reliable pressure control for water pumping systems.

Key Features :
1、This pressure switch is equipped with a low noise operation feature, ensuring a quiet and smooth operation of the water pump. It minimizes any disruptive noise that may be caused by pressure fluctuations or switching on/off of the pump.
2、The EPC-5.1 Series is designed for easy operation, making it user-friendly and convenient to use. It has a simple interface and controls, allowing for quick and hassle-free setup and adjustment.
3、This pressure switch is specifically designed for water pump applications, ensuring optimal performance and compatibility. It can handle the demands of water pumping systems, providing accurate pressure control and preventing any damage or malfunction.
4、The EPC-5.1 Series Low Noise Easy Operation Automatic Pressure Switch is an ideal choice for water pump systems that require quiet operation, easy setup, and reliable pressure control. It ensures efficient and smooth operation of the water pump while minimizing noise and providing user-friendly operation.
5、 Electrical switch utilized in water conveyance systems.
6、 This switch automatically initiates the electric pump upon a decrease in pressure (i.e. when taps are opened), and subsequently halts the pump once fluid flow interruption is detected at the electric pump's maximum operating pressure level (i.e. when taps are closed).
7、Threaded joint: G1" male.
8、Completely supplants the traditional pump control system, consisting of a pressure switch, pressure tank, and check valve, among other components.
9、Halts water pump operation in cases of insufficient water supply.
10、 Customizable settings available.
11、 Warranty coverage for one year.

Optionals :

-Color: Customizable according to customer requirements.
-G1" plastic pipe joint allows for quick connection to water pump.
-Power cable length can be customized based on customers' needs.
-Starting pressure can be adjusted during installation with a range of 1.2 to 3.0 bar.

Technical Parameters :

Rated voltage	220-240V	110-120V	110-240V
Power Frequency	50/60HZ	50/60HZ	50/60HZ
Max using current	10A	10A	10A
Max power	1.1KW	0.55KW	1.1KW
Starting pressure setting	1.2bar;1.5bar;2.2bar	1.2bar;1.5bar;2.2bar	1.2bar;1.5bar;2.2bar
Max working pressure	10bar	10bar	10bar
Connection thread	G1”	G1”	G1"
Protection rating	IP44	IP44	IP44
Max working temperature	55℃	55℃	55℃
