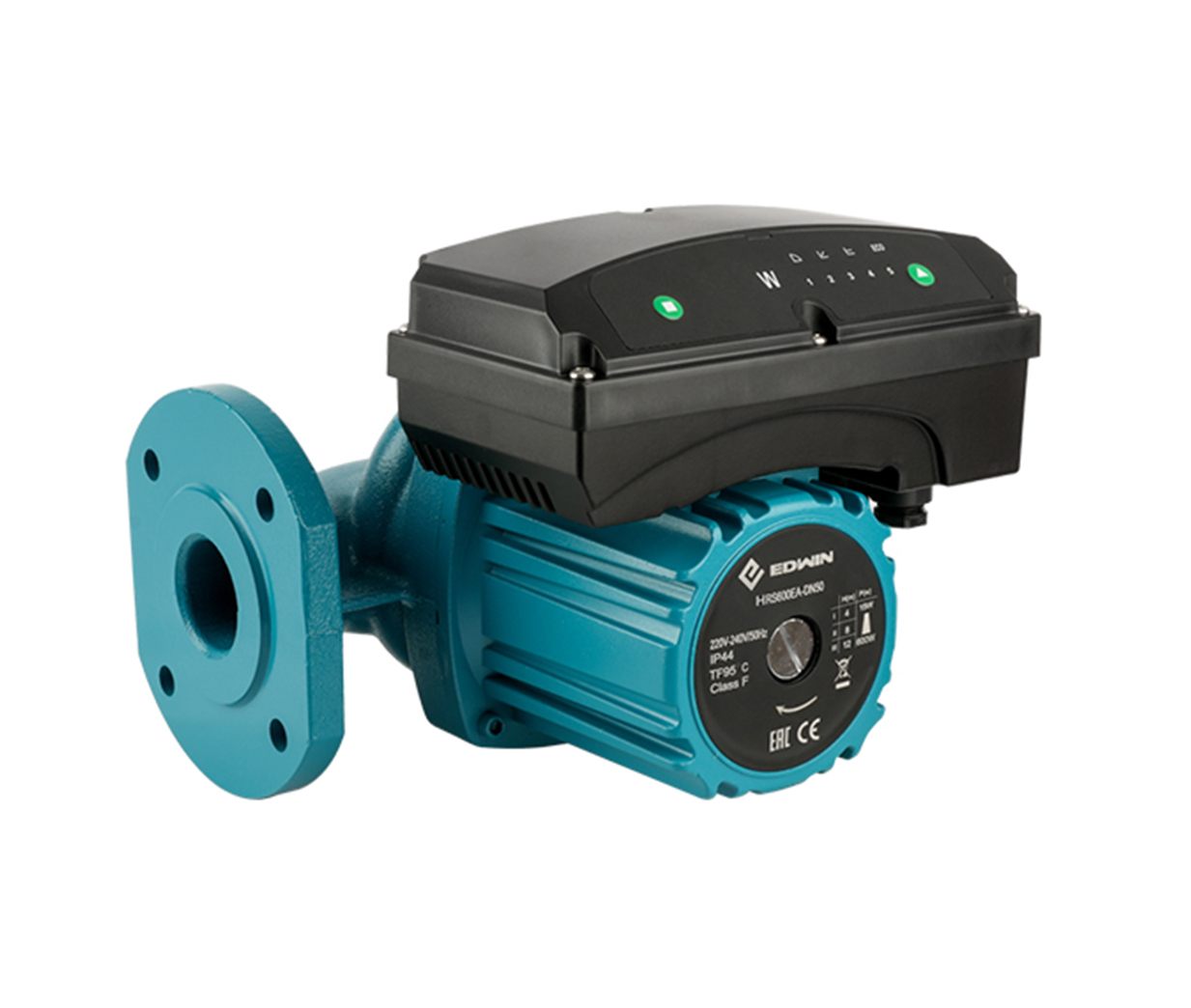

Model: HRS-EA-DN
Power: 600W
Max. Head: 12M
Rated Flow: 22m³/h

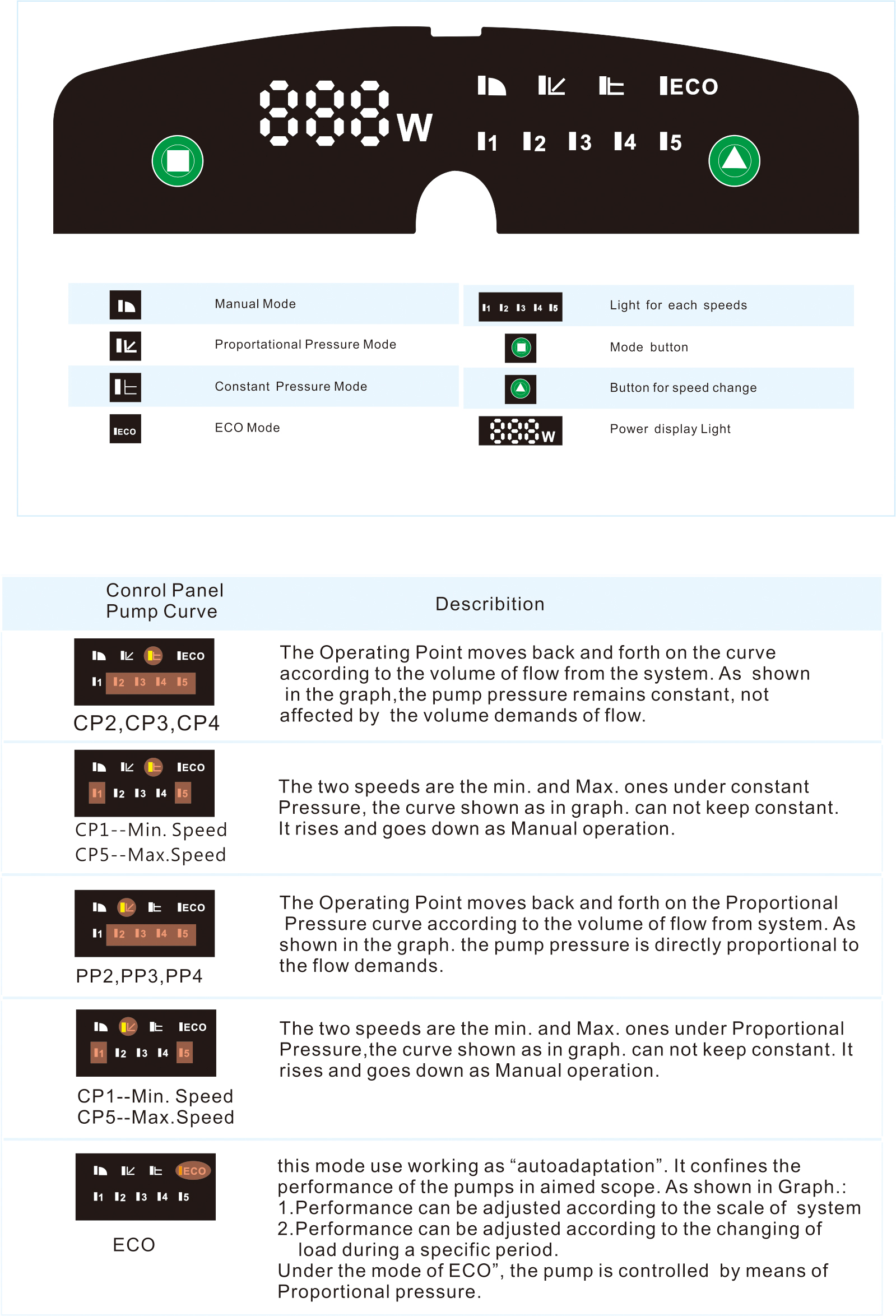

Function: 1) ECO mode; 2) Manual mode; 3) PWM mode
1. Apply to heating system
2. Max. system pressure: 3bar
3. Operation condition:
Ambient Temperature: 0°C~40°C
Ambient Humidity: 95%
Liquid Temprature: 20°C~85°C
Ambient temperature must be lower than liquid temperature, in order to avoid condensate water produced in the interior of stator.
4. Liquid: Clean, non-coorosive and non-explosive liquids, without any particle, fiber or mineral oil. Water/Glycol mixtures max. mixing ratio 1:1
5. Dry running no more than 10s
| Part | Material |
| Pump body | Cast iron |
| Impeller | PES |
| Stainless steel cover | 304SS |
| Bearing | Ceramic |
| Gasket | Rubber |
| Brass bearing | Brass |
| Rator | SS&Copper |
| Ceramic shafting | Ceramic |
| Shielding | 304SS |
| Stator | Silicon steel&Copper |
| Motor housing | Aluminum |
| Hexagon socket screws | Stainless steel |
| Exhaust screw | Brass |
| Nameplate | Nylon |
| Seat of terminal box | Nylon |
| Cover of termial box | Nylon |

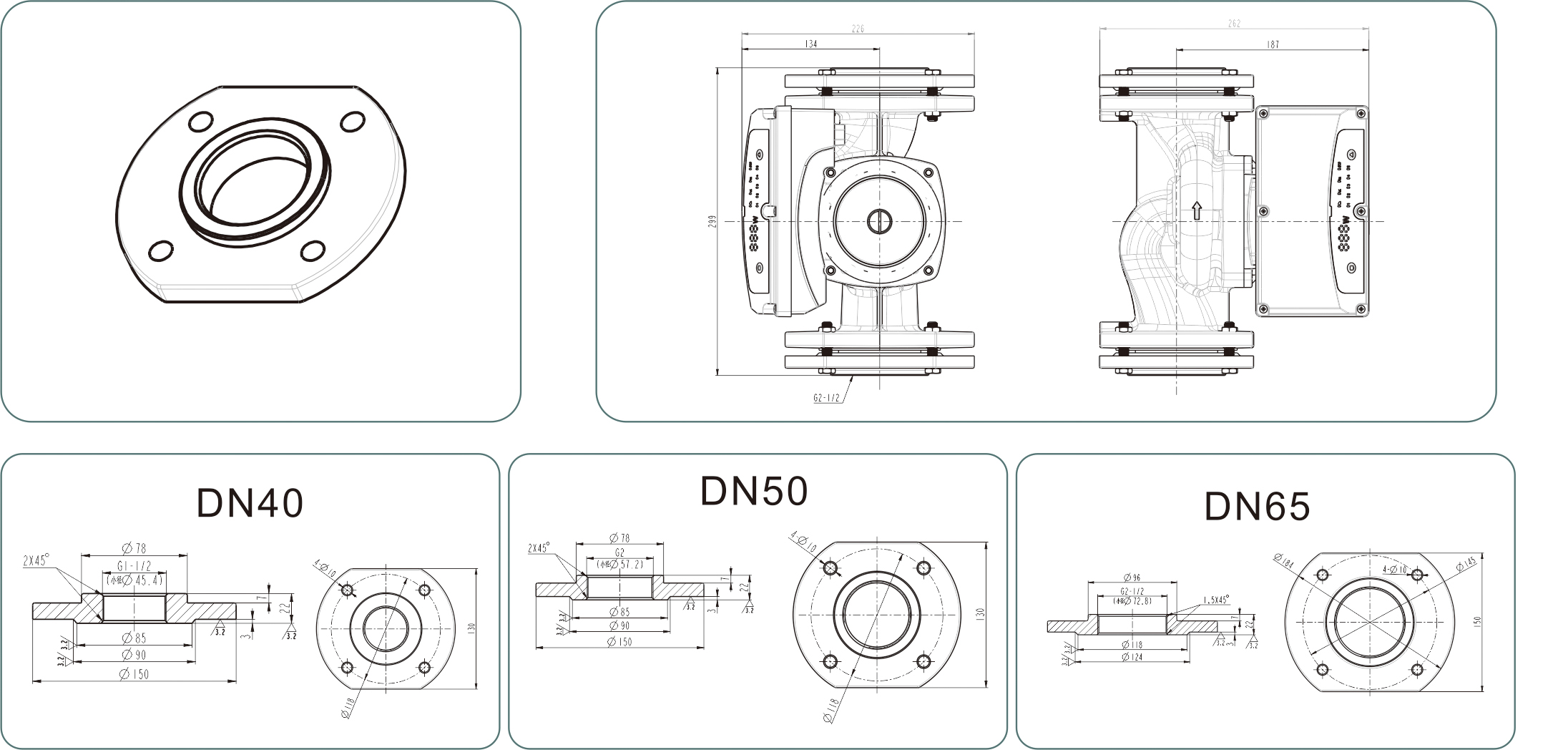

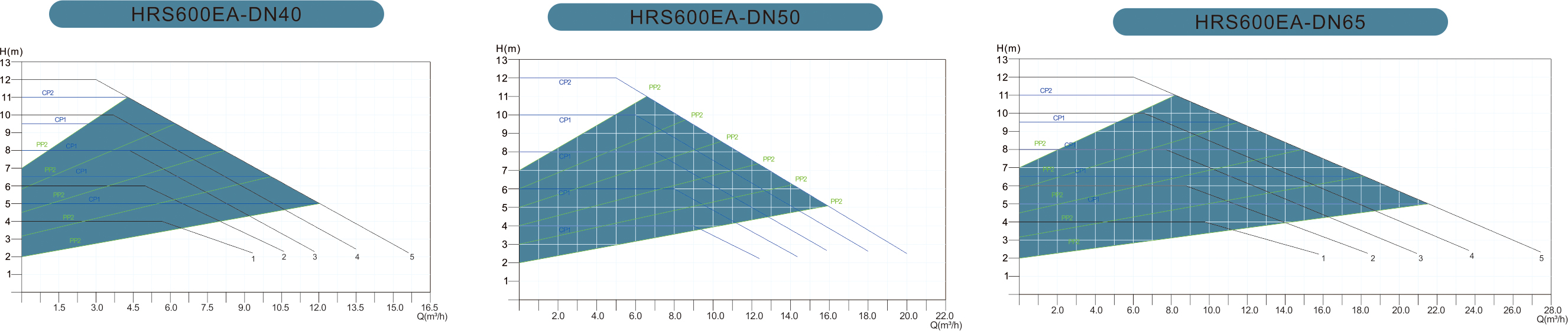

| Model | Connection size | Rated.Flow | Max.Head | Power | Voltage/Frequency |
| (Inch) | (m3/h) | (m) | (W) | (V/Hz) | |
| HRS600EA-DN40 | 2" | 22.0 | 12 | 600 | 220/50 |
| HRS600EA-DN50 | 2" | 22.0 | 12 | 600 | 220/50 |
| HRS600EA-DN65 | 2" | 22 | 12 | 600 | 220/50 |
