Description:

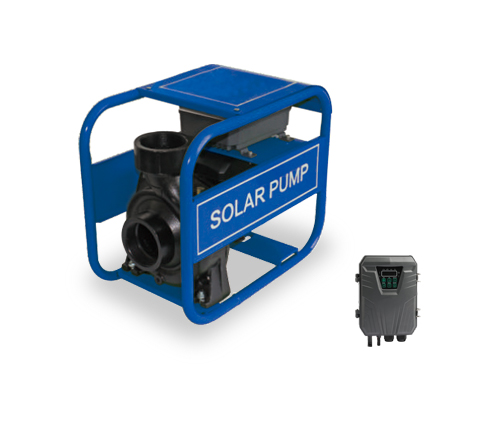

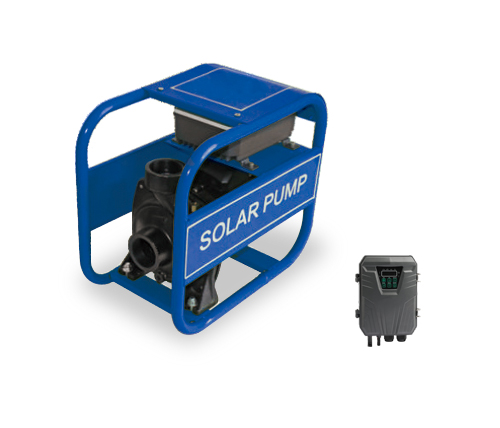

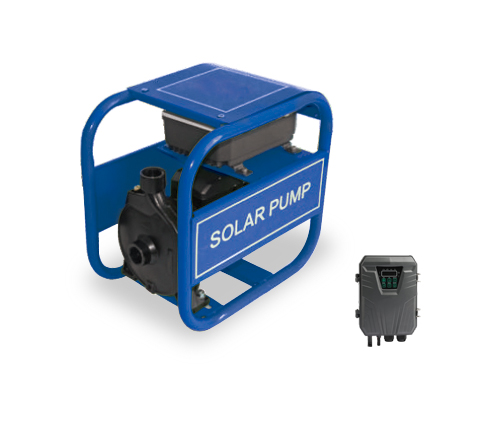

If you live in a high-rise building with small water pressure or your domestic water is not convenient, this pump produced by Edwin can solve your water needs well.This water pump is composed of a hard shell and bearings, and the motor is made of copper coils ,which can prolong the pump's life in a large part .This high-quality circulation pump is designed to work efficiently in both cold and hot weather conditions , ensuring that your water is always at the desired temperature.If you tend to own a high-lift pump, ECPM Series High-lift Solar Centrifugal Pump is your best choice !
Key Features :
1、Hot and cold water general purpose : No matter what the temperature of the water is, this pump can cope with it calmly.
2、Intelligent fishing bearing : Using intelligent finishing casting molding and strict balance adjustment , the pump can run more stably .
3、Full copper coil : The ECPM Series High-lift Solar Centrifugal Pump boasts exceptional heat dissipation capabilities, even under high load conditions. This pump is designed to operate efficiently and effectively, making it an ideal choice for agricultural applications.
4、Easy installation :The pump is easy to install and operate, making it a great choice for homeowners who want to improve the efficiency of their water system.
5、1 year warranty.
Free Spare Parts :
Hydraulic Performance Curves :
Technical Data :
|
|
|||||||
|
Model |
Voltage |
Optimum input voltage |
Power |
Max. Flow |
Max. Head |
Outlet |
Cable |
|
ECPM6-26-48-550 |
48V |
60V-90V |
550W |
6m3/h |
26M |
1" |
0.6m |
|
ECPM15-14-48-550 |
48V |
60V-90V |
550W |
15m3/h |
14M |
1.5" |
0.6m |
|
ECPM21-14-72-750 |
72V |
90V-120V |
750W |
21m3/h |
14M |
2" |
0.6m |
|
ECPM26-15-72-1100 |
72V |
90V-120V |
1100W |
26m3/h |
15M |
2" |
0.6m |
|
ECPM50-17-110-1500 |
110V |
110V-150V |
1500W |
50m3/h |
17M |
3" |
0.6m |
