- Liquid Temperature: 0–90°C
- Ambient Temperature: ≤40°C
- Insulation Class: F
- Protection Level: IPX4
- Max Pressure: 8 bar | Max Suction: 8 m
- High-Efficiency IE5 Motor with 100% copper wire, delivering energy savings and reliable operation.
- Wide Voltage & Dual-Frequency Design ensures stable performance across regions.
- Smart One-Click Pressure Adjustment with IP54 protection, suitable for outdoor installation.
- Self-Start Function: Automatically prevents impeller blockage during long idle periods by running briefly every 12 hours.
With advanced self-priming capability, durable construction, and smart energy management, the XLJET Series ensures continuous, efficient, and safe water supply for residential, commercial, and industrial applications.
The XLJET Series is engineered for efficient self-priming and circulation of low-viscosity, neutral, and non-explosive liquids without solids or fibers. It is ideal for air-conditioning circulation, cooling systems, water treatment, industrial cleaning, and fluid handling in food, beverage, and agricultural processes. Customized models can handle oil-based liquids.

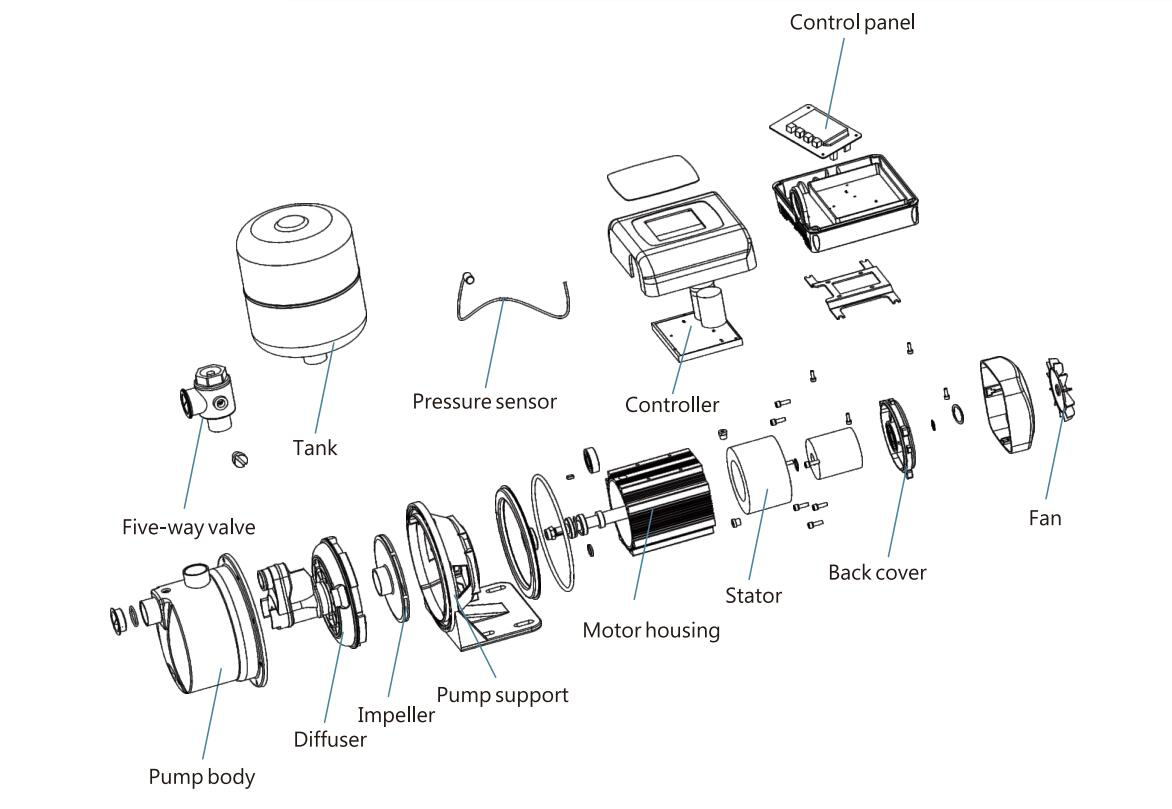

| Component | Material |
| Pump body | Stainless steel |
| Motor housing | Aluminum |
| Impeller | PPO |
| Pump support | Aluminum |
| Mechanical seal | Silicon carbide/graphite |

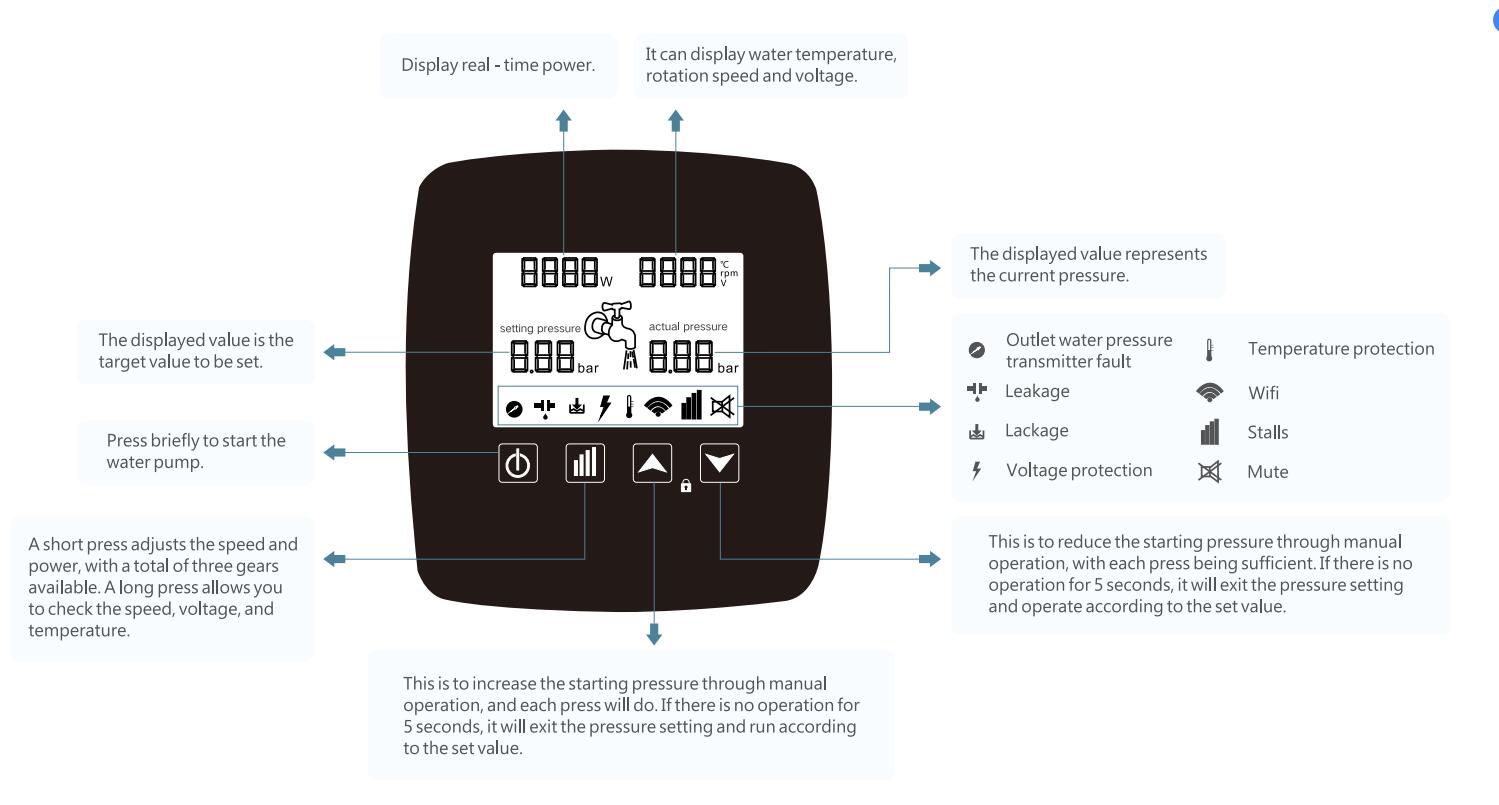

Operation Interface:

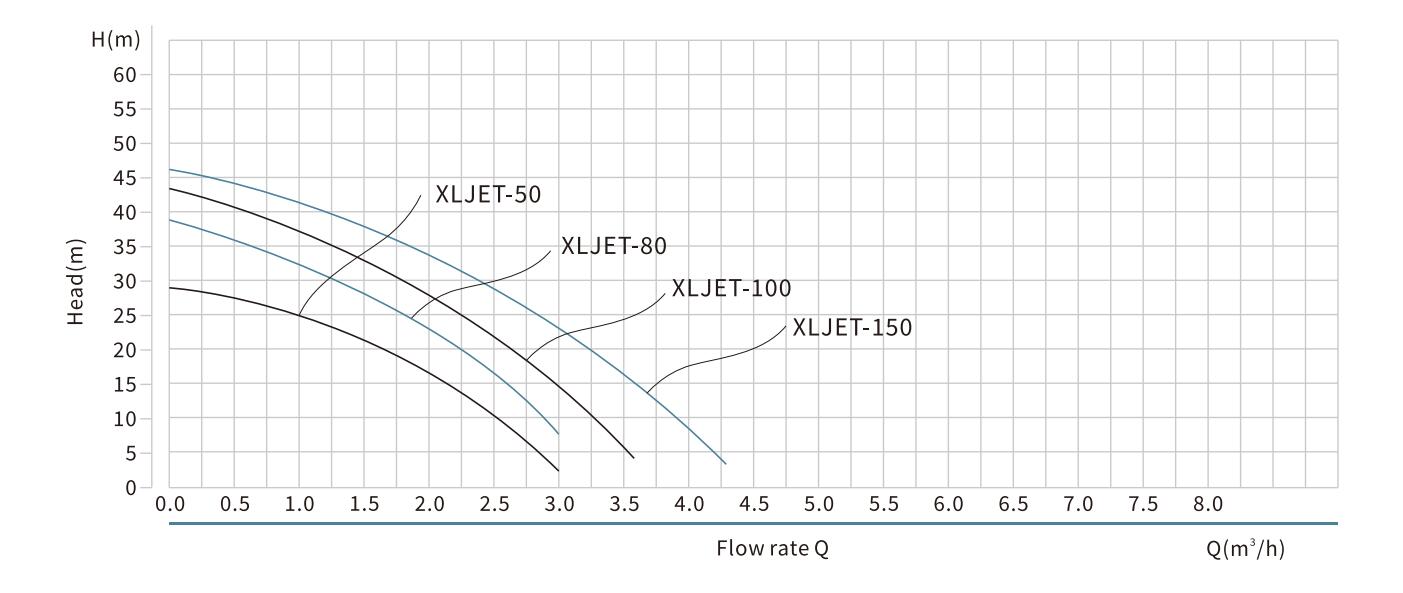

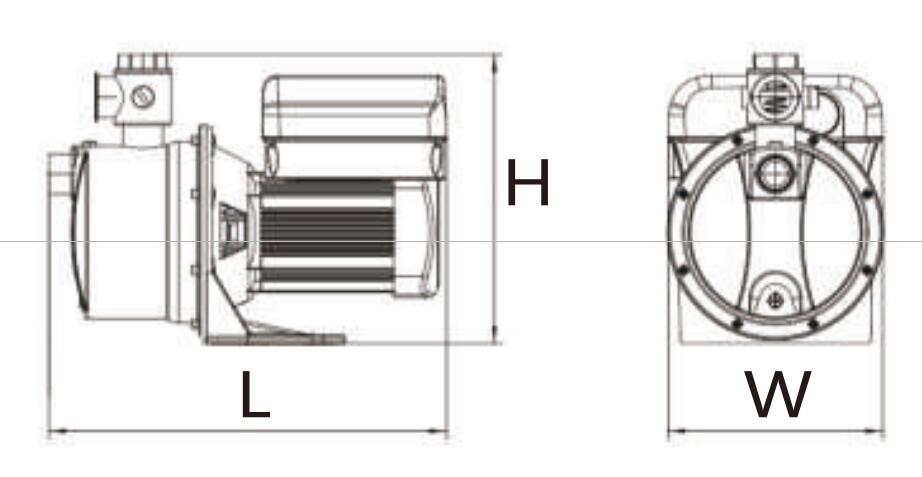

| Model | Frequency（Hz） | Power（W） | Max.flow（L/min） | Max.head（m） | Max.suction（m） | Inlet&Outlet（inch） | N.W.（kg） | Size(L×W×H)（mm） |
| XLJET-50 | 50/60 | 370 | 50 | 28 | 8 | 1" x 1" | 7.3 | 330*198.5*245.5 |
| XLJET-80 | 50/60 | 550 | 50 | 38 | 8 | 1" x 1" | 7.3 | 330*198.5*245.5 |
| XLJET-100 | 50/60 | 750 | 60 | 43 | 8 | 1" x 1" | 9.4 | 364*200*267.5 |
| XLJET-150 | 50/60 | 1100 | 70 | 46 | 8 | 1" x 1" | 9.4 | 364*200*267.5 |
