Description :
The KBD Series 1.5kW-5.5kW 380V Ultra-large Capacity Submersible Drainage Pump is a specialized pump designed for general pumping purposes. It is known for its ultra-large capacity and submersible capabilities.
One of the key features of this drainage pump is its ultra-large capacity. It is specifically designed to handle large volumes of water or other fluids, making it suitable for applications where a high flow rate and large pumping capacity are required. This makes it ideal for general pumping purposes, such as draining flooded areas, emptying tanks or reservoirs, or managing water in construction sites.
The pump operates on a 380V power supply, which is commonly used in three-phase cuntries like Angola and larger-scale pumping operations.
The KBD Series drainage pump is designed for submersible applications. It is capable of being fully submerged in water or other fluids, allowing for efficient pumping and transport. This feature makes it suitable for use in various environments, including basements, pits, or other areas where water needs to be removed or managed.
Additionally, these pumps are often constructed with durable materials, such as stainless steel or cast iron, to withstand the demanding conditions of pumping operations. They may also feature features such as automatic float switches or level sensors to control the pump's operation based on the liquid level.
The KBD Series 1.5kW-5.5kW 380V Ultra-large Capacity Submersible Drainage Pump is a reliable and efficient solution for general pumping purposes. Its ultra-large capacity, submersible design, and compatibility with 380V power supply make it suitable for a wide range of applications where high-volume pumping is required.
Application :
Civil engineering
Mines, quarries, coal mine & slurries
Sewage treatment plants
General pumping purposes
Special features on request :
Other voltages
The length of cable is optional
Intelligent model
Specification :
Capacity : up to 90 m3/h
Head : up to 30 meters
Power :1.5kW (2HP) to 5.5kW (7.5HP)
Power supply : Three phase 380V
Insulation class : F
Protection class : IP68
Cable length : 8m
Water temperature : up to 40°C
Water depth : 25m
Components :
|
Materials Table |
||
|
NO. |
Name |
Material |
|
01 |
Hose coupling |
Cast iron |
|
02 |
Handle |
Rubber&steel |
|
05 |
Upper cover |
Cast iron |
|
11 |
Motor body |
Cast iron |
|
13 |
Pump body |
Cast iron |
|
14a |
Impeller |
High chrome alloy |
|
14b |
Agitator |
High chrome alloy |
|
16 |
Intel Plate |
Ductile iron |
|
25 |
Strainer |
Steel |
|
27 |
Stator |
|
|
28 |
Rotor |
Shaft : AISI420SS |
|
31a |
Bearing |
Ball bearing |
|
31b |
Bearing |
Ball bearing |
|
33 |
Motor protector |
|
|
34 |
Mechanical seal |
Sic-Sic / Carbon-Sic ( ≤2.2kW ) |
|
Sic-Sic / Sic-Sic ( ≥ 3.7kW ) |
||
|
35 |
Oil seal |
|
|
47 |
Cable |
|

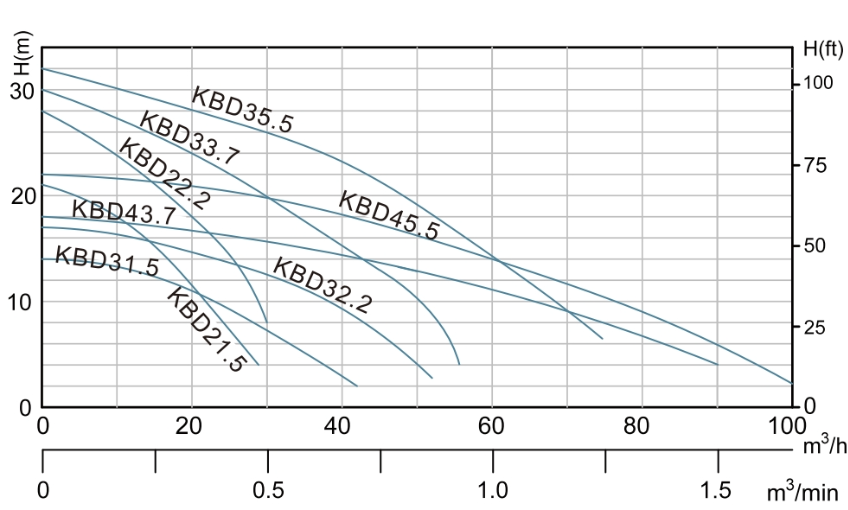

Performance chart :
Performance Data :
