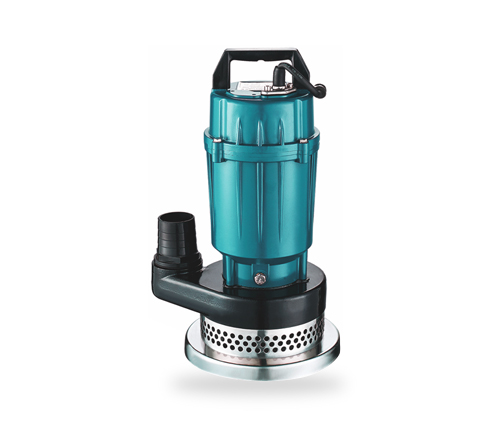

SPA550 AISI304 Base Plate Submersible Pump for Small Electrical Irrigation is apply for compact electrical irrigation and drainage equipment, specifically designed for applications such as urban well pumping, field irrigation and drainage, garden irrigation, household water supply, industrial water drainage, and water supply and drainage for construction and livestock breeding.
Max immersion depth : 5m
Max liquid temperature : 40℃
Copper winding
Built-in thermal protector
Insulation class : B
Protection class : IPX8
Warranty : 1 year
If you have ultra request , you can choose float switch and other voltages or frequency.
|

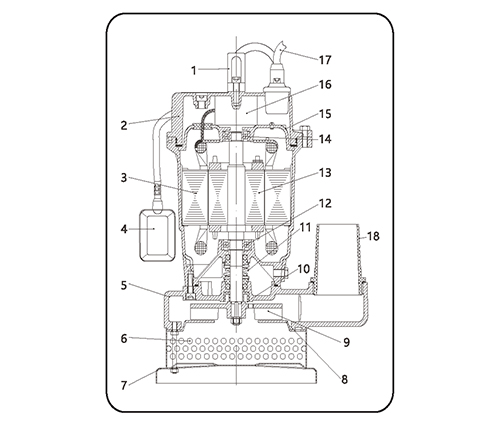

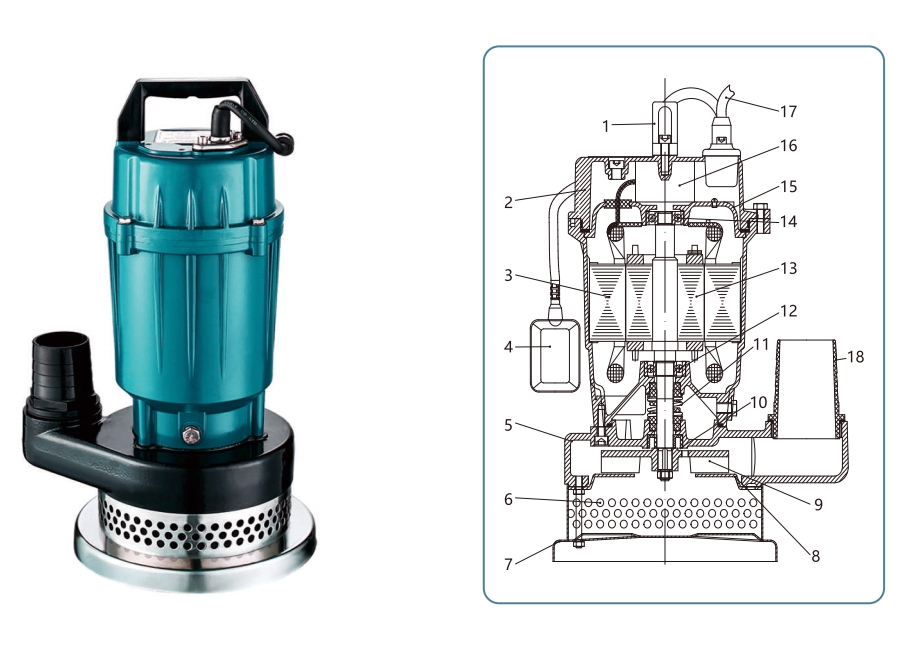

NO. |
NAME |
MATERIAL&SPEC. |
|
1 |
Handle |
ABS |
|
2 |
Capacitor Cover |
ZL102 |
|
3 |
Motor |
ZL102(Motor casing) |
|
4 |
Float Switch(optional) |
|
|
5 |
Pump body |
HT200 |
|
6 |
Filter mesh |
AISI304 |
|
7 |
Base plate |
AISI304 |
|
8 |
Pump cover |
Q235 |
|
9 |
Impeller |
HT200 |
|
10 |
Oil seal |
NBR |
|
11 |
Double Mechanical Seal |
Ceramic/Graphite |
|
12 |
Bearing(DGBBI) |
6203-2RZ |
|
13 |
Rotor |
45#Carbon steel |
|
14 |
Bearing (DGBB) |
6201-2RZ |
|
15 |
Upper cover |
ZL102 |
|
16 |
Capacitor |
|
|
17 |
Cable components |
|
|
18 |
Out-let connector |
ABS(G2) |
