- Liquid Temperature: 0–70°C
- Ambient Temperature: ≤40°C
- Insulation: Class F for stable thermal performance
- Protection Rating: IPX4, splash-resistant
- Power Supply: Single-phase 180–260V, 50/60Hz
- IE5 Permanent Magnet Motor ensures high efficiency and energy savings, with 100% copper windings for reliability.
- Smart Pressure Control: One-click adjustment provides convenient and precise operation.
- Automatic Self-Start: Prevents long-term idle blockage by running briefly every 12 hours.
- Wide Voltage & Dual-Frequency Compatibility allows flexible installation.
- Robust & Outdoor-Ready: Corrosion-resistant materials with IP54 protection for safe, long-lasting use.

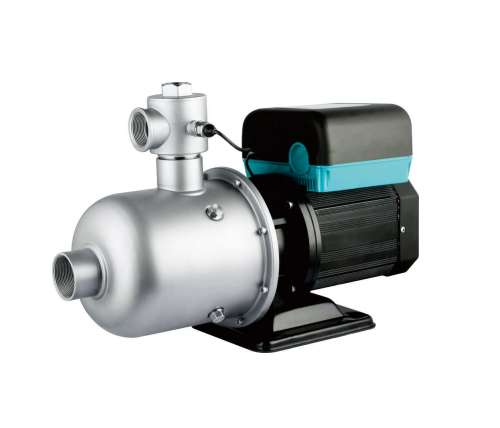

The XLBL Series offers quiet, efficient, and intelligent pumping for residential, commercial, and light industrial applications, combining durability, hygiene, and ease of use.
- Designed for safe handling of clean, low-viscosity, non-explosive liquids free from solids or fibers. (Custom versions available for oil-based liquids.)
- Perfect for HVAC systems, cooling circuits, and water purification.
- Suitable for industrial cleaning, fluid transfer, and circulation, as well as food, beverage, and agricultural liquid handling.

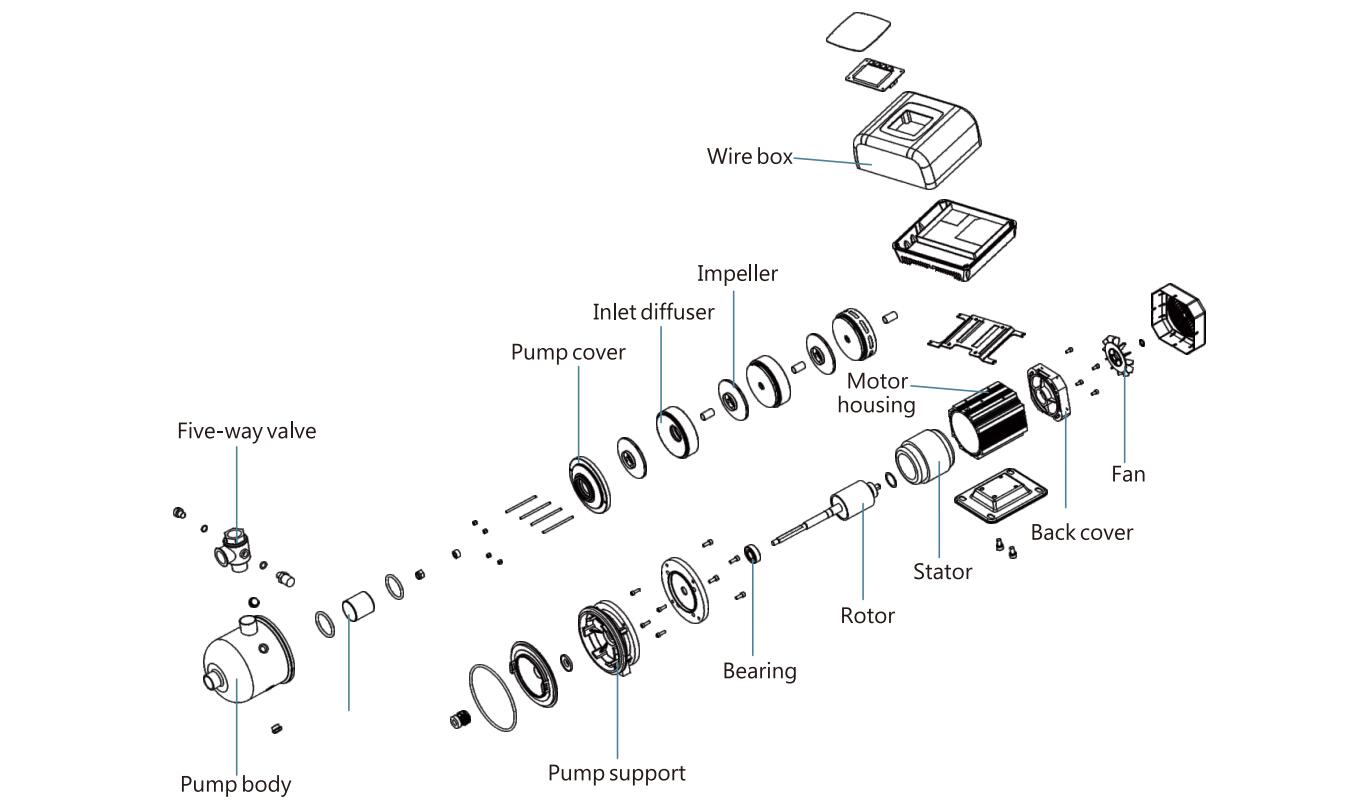

| Component | Material |
| Pump body | Stainless steel |
| Motor housing | Aluminum |
| Impeller | Stainless steel |
| Pump support | Aluminum |
| Mechanical seal | Silicon carbide/graphite |

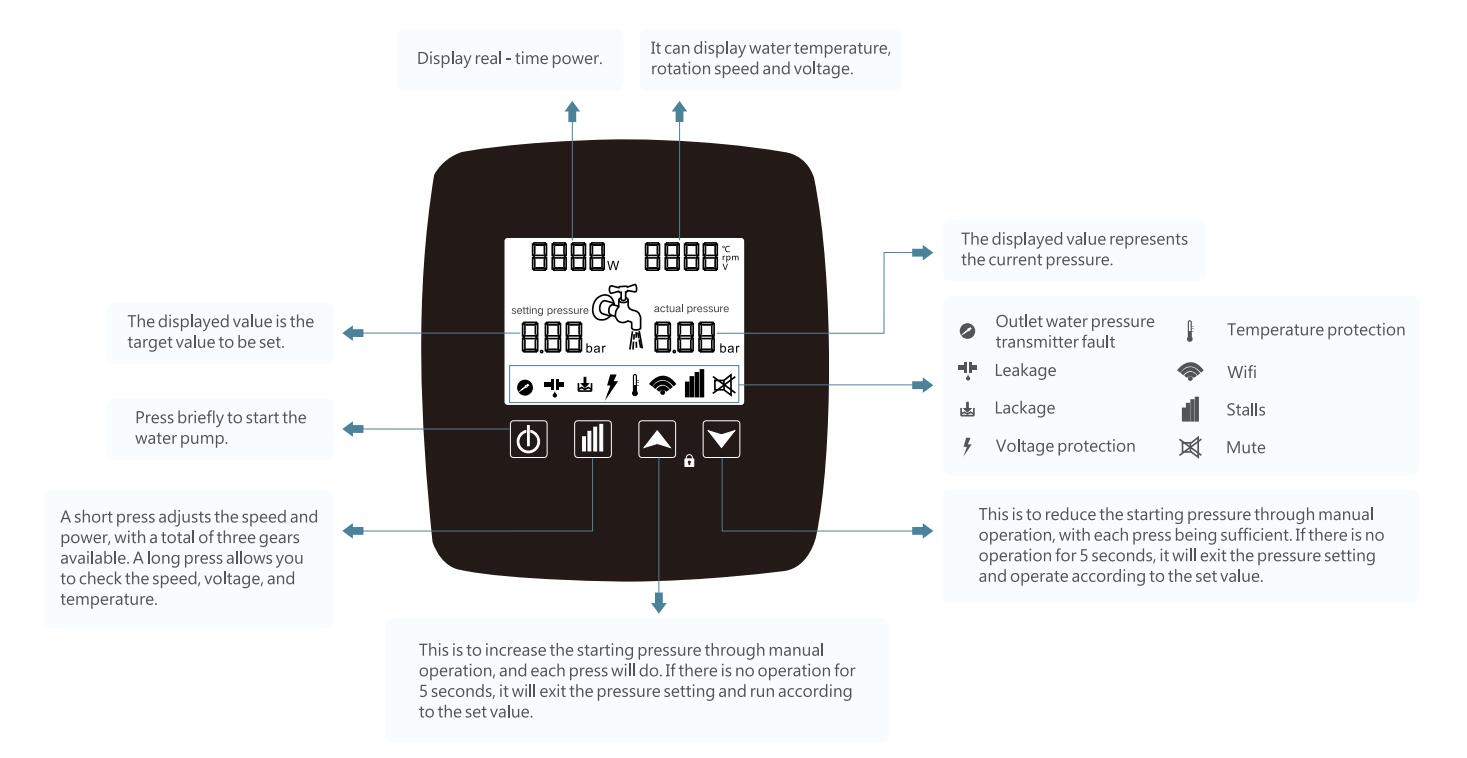

Operation Interface:

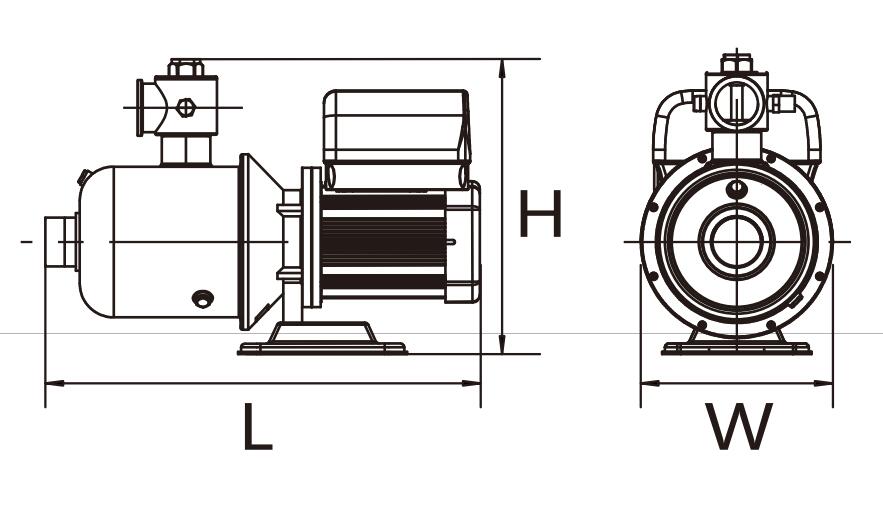

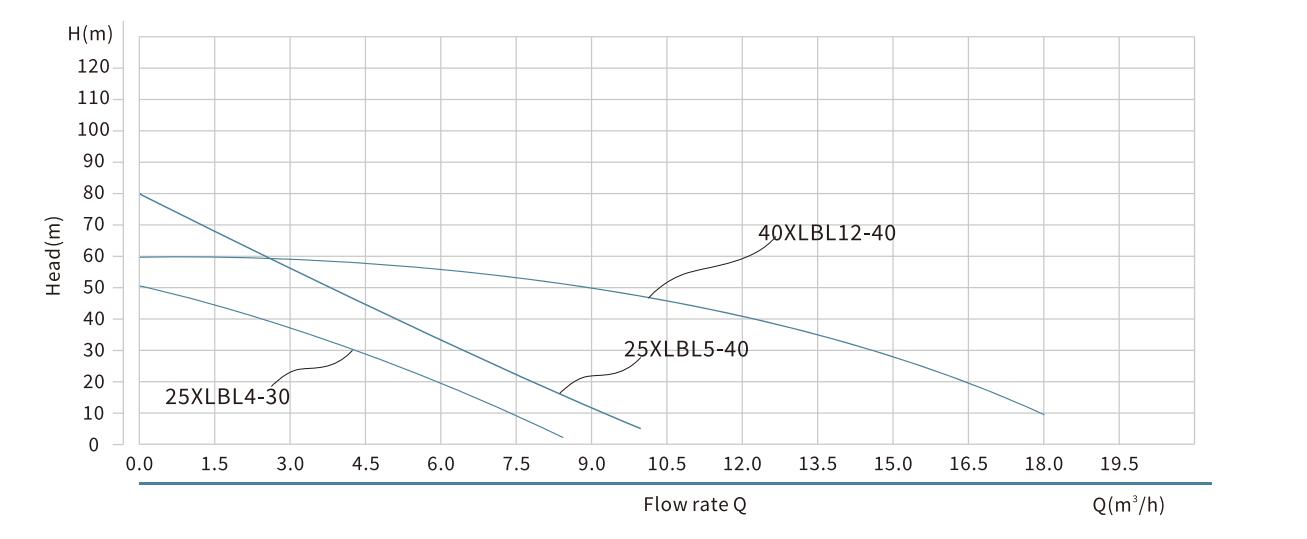

| Model | Frequency（Hz） | Power（W） | Max.flow（L/min） | Max.head（m） | Max.rpm（r/min） | Inlet&Outlet（inch） | N.W.（kg） | Size(L×W×H)（mm） |
| 25XLBL4-30 | 50/60 | 100-900 | 133 | 50 | 4000 | 1.25" x 1.25" | 13 | 405*193*283 |
| 25XLBL5-40 | 50/60 | 100-1100 | 133 | 80 | 5000 | 1.25" x 1.25" | 13 | 405*193*283 |
| 40XLBL12-40 | 50/60 | 400-2200 | 300 | 60 | 4500 | 2" x 2" | 28 | 595*234*305 |
